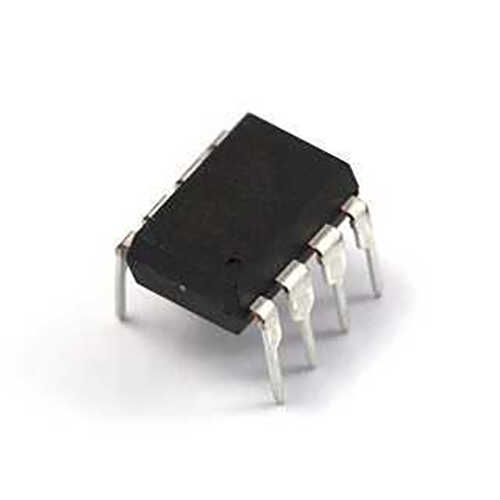

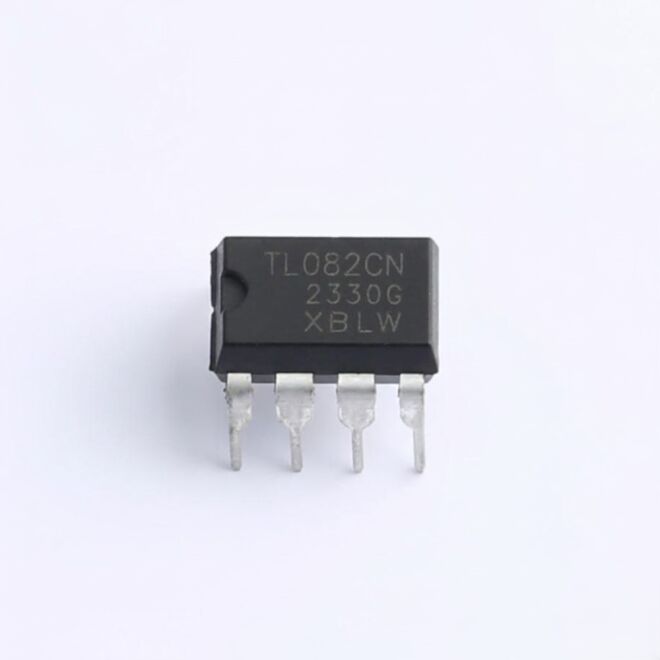

TL082CN DIP-8 Dual JFET Input Operational Amplifier

TL082CN DIP-8 Dual JFET Input Operational Amplifier

The TL082CN is a general-purpose, dual-channel JFET input operational amplifier designed for a wide range of analog applications. Thanks to its low input bias current, high input impedance, and low noise characteristics, it is widely used in audio circuits, signal conditioning, filtering, and analog measurement applications.

The DIP-8 package makes soldering and prototyping easy, making it ideal for educational, hobby, and development projects. Operating with ±15V dual supply, the TL082CN offers a 3MHz gain-bandwidth product, 13V/µs slew rate, and high CMRR performance, providing fast and stable analog signal processing solutions.

TL082CN Technical Specifications:

• Dual-channel operational amplifier

• JFET input architecture

• Supply voltage: ±5V to ±15V (max. 36V)

• Gain-bandwidth product (GBW): 3MHz

• Slew rate: 13V/µs

• Input offset voltage (Vos): 6mV (typical)

• Input bias current (Ib): 2.5nA

• Common-mode rejection ratio (CMRR): 85dB

• Quiescent current (Iq): 1.4mA

• Operating temperature range: 0°C to +70°C

• Package type: DIP-8 (Through-Hole)

Useful Links / Documents:

• Datasheet
• EasyEDA Model
