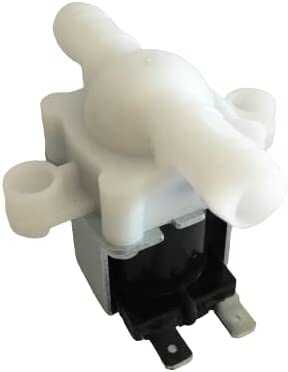

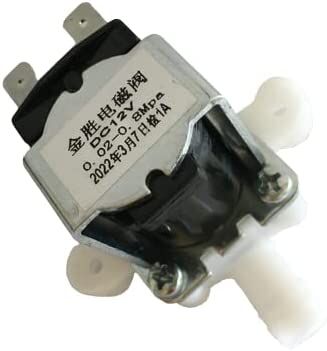

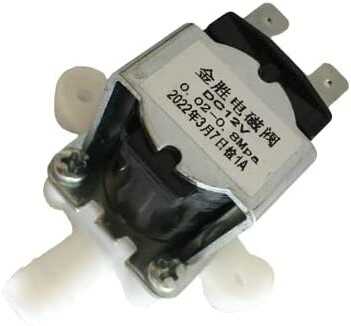

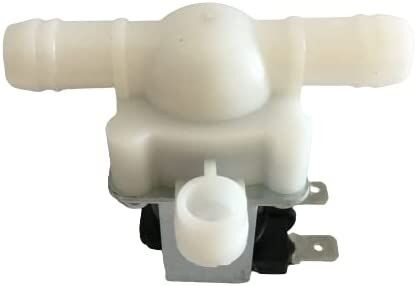

Solenoid Water Valve - 12 V, 1/2inch Pipe Diameter

Solenoid Water Valve - 12 V, 1/2 inch Pipe Diameter

Solenoid Water Valve, It is a product that will allow you to control liquid flow together with electronic circuits. In normal situations, the valve is closed, but when its terminals are energized, it switches to the open position. It has a 1.27 cm wide NPT type pipe connection. Moreover, The valve needs a minimum pressure of 0.02 Mpa (3 psi) in order to fully open the seals and allow the liquid to flow.

Solenoid Water Valve Technical Features;

• Dimension: 76.2 x 57.15 x 50.8 mm
• Weight: 122g
• Supply Voltage: 12V
• Supply Current: 320mA
• Pressure Range: 0.02Mpa / 0.8Mpa
• Pipe Length: 1.27 cm
• Valve Opening Time: ≤ 0.15 sec
• Valve Closing Time: ≤ 0.3 sec
• Operating Temperature: 1°C / 75°C
