SIM808 GSM/GPRS Module

SIM808 GSM/GPRS Module

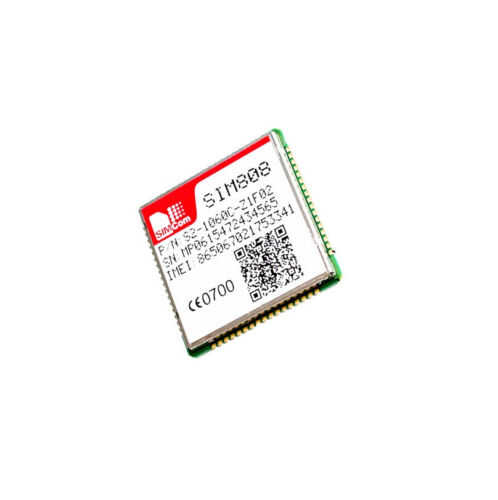

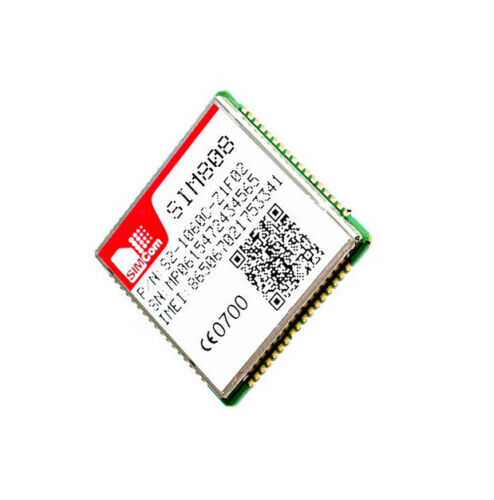

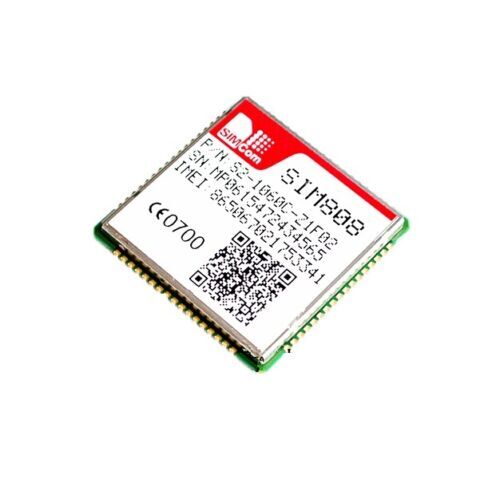

The SIM808 module is a complete Quad-Band GSM/GPRS module that integrates GPS technology for satellite navigation. Its compact design, which integrates GPRS and GPS into a single SMT package, significantly reduces both time and cost for customers developing GPS-enabled applications. Featuring an industry-standard interface and GPS functionality, it enables seamless tracking of moving assets anywhere and anytime with signal coverage.

Note: All of our GSM/GPRS shields and modules have BTK-approved and registered IMEI numbers. You can safely use them in your projects.

SIM808 GSM/GPRS Module Technical Specifications:

• Input Voltage: 3.4 ~ 4.4V
• Quad-Band 850/900/1800/1900MHz
• GPRS Multi-slot Class 12/10
• GPRS Mobile Station Class B
• Compliant with GSM Phase 2/2+
• Class 4 (2W @ 850/900MHz)
• Class 1 (1W @ 1800/1900MHz)
• Bluetooth: Compliant with 3.0+EDR
• AT Command Control (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT commands)
• Low Power Consumption
• Operating Temperature: -40℃ ~ 85℃
• Dimensions: 24 x 24 x 2.6mm
• Weight: 3.3g

SIM808 GSM/GPRS Module GPS Features:

• GPS Receiver Channels: 22 Tracking / 66 Acquisition
• C/A Code: GPS L1
• Tracking Sensitivity: -165dBm
• Time to First Fix: Cold Start: 30s (typical), Hot Start: 1s (typical), Warm Start: 28s (typical)
• Horizontal Position Accuracy: < 2.5m CEP
• Update Rate: 5Hz
