Raspberry Pi M.2 HAT Plus Compact

Raspberry Pi M.2 HAT Plus Compact

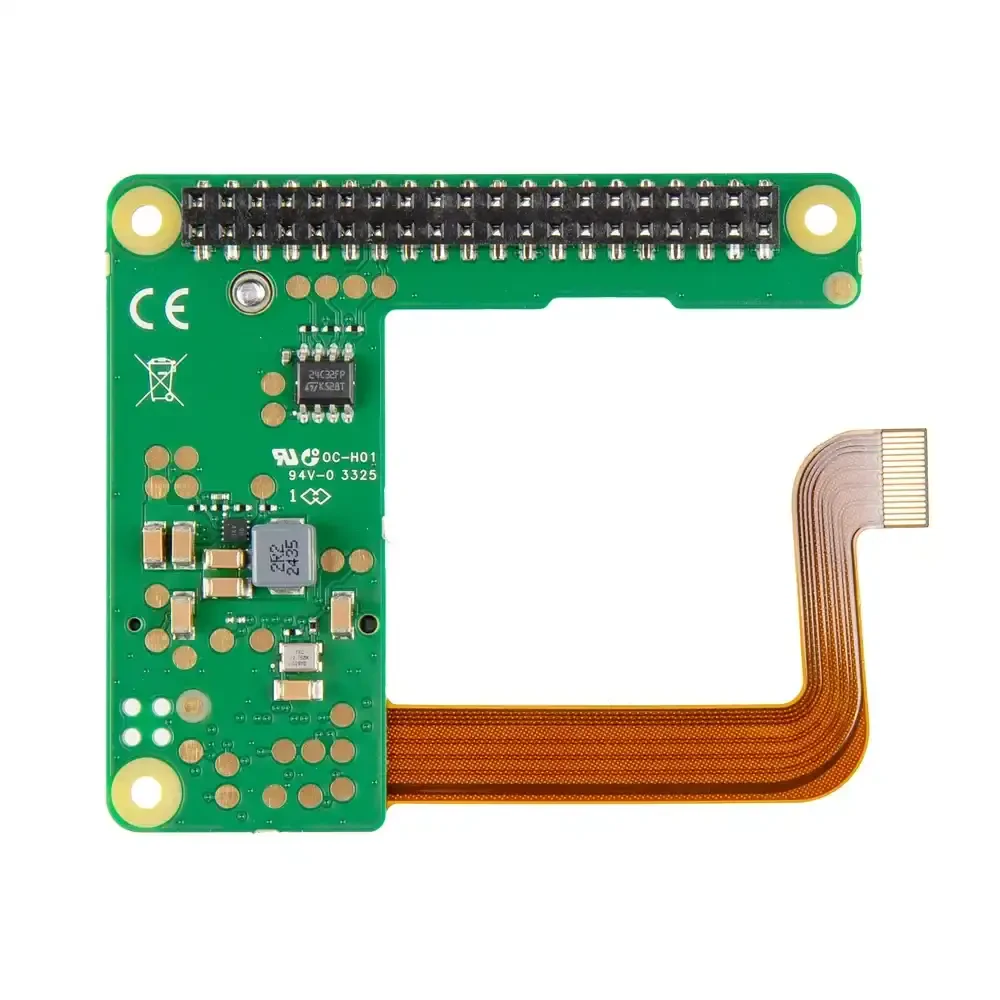

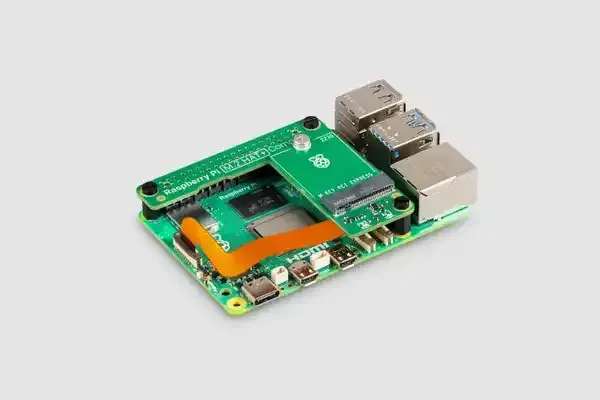

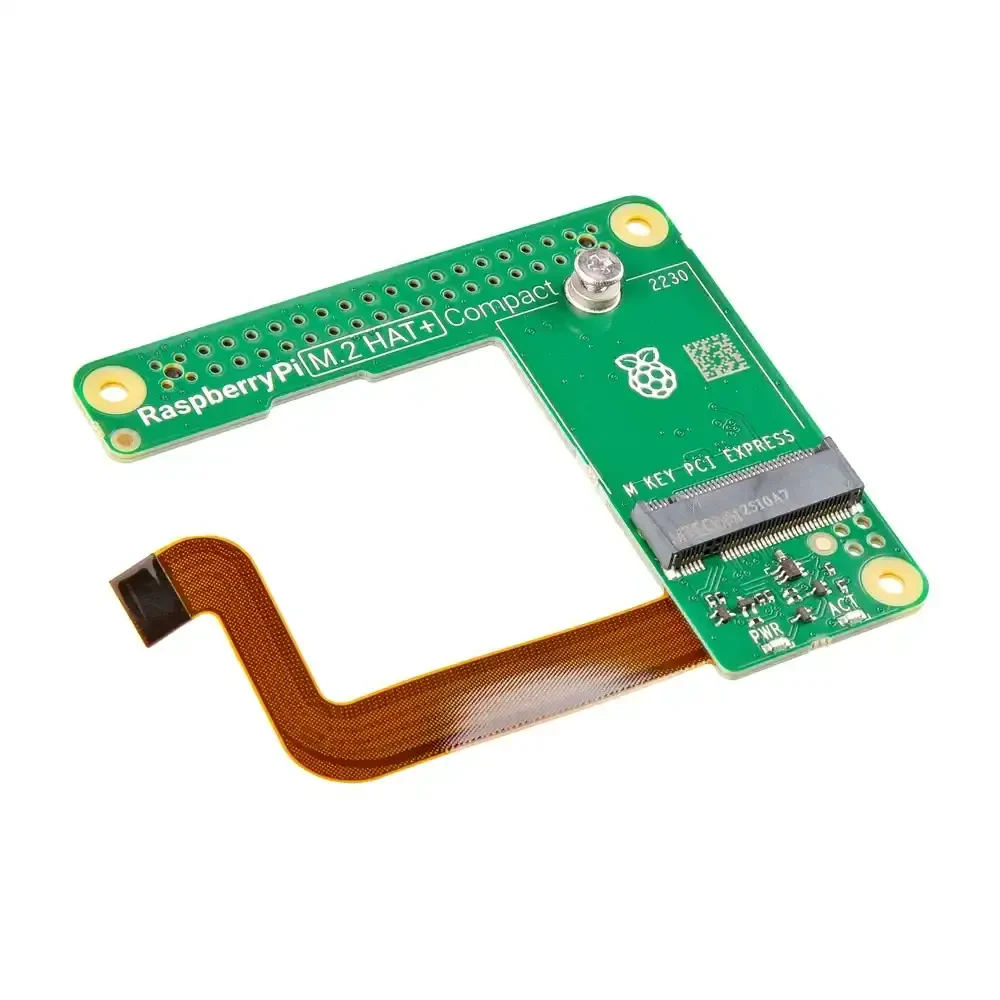

The Raspberry Pi M.2 HAT Plus Compact is a compact expansion board designed to connect your Raspberry Pi 5 to high-speed NVMe SSDs. Utilizing the PCIe Gen 2 x1 interface, it connects directly to the Raspberry Pi 5’s PCIe connector and supports M.2 NVMe SSDs in 2230, 2242, 2260, and 2280 sizes. This allows you to expand your system’s storage capacity and achieve faster data transfer and boot times.

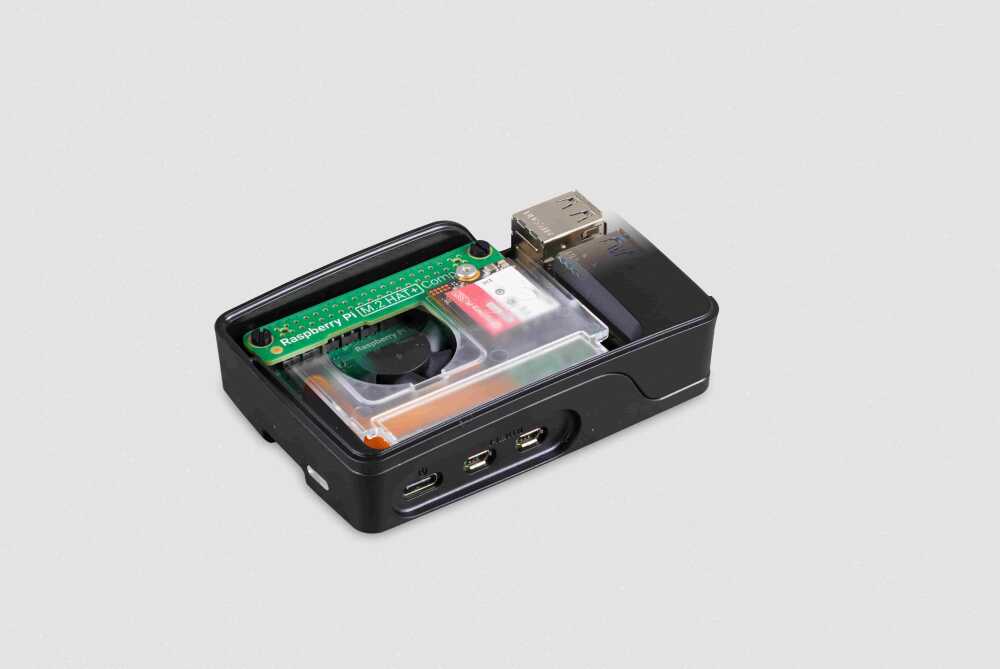

Thanks to its compact design, it can be easily used inside enclosures along with your Raspberry Pi. Optimized for thermal management and power distribution, this HAT fully complies with the Raspberry Pi HAT Plus standard and comes with all the necessary mounting hardware for secure installation.

Raspberry Pi M.2 HAT Plus Compact Specifications:

• Fully compatible HAT Plus expansion board for Raspberry Pi 5

• High-speed data transfer via PCIe Gen 2 x1 connection

• Supports M.2 NVMe SSDs (M-key) – 2230, 2242, 2260, 2280 sizes

• Compact form factor – compatible with most Raspberry Pi cases

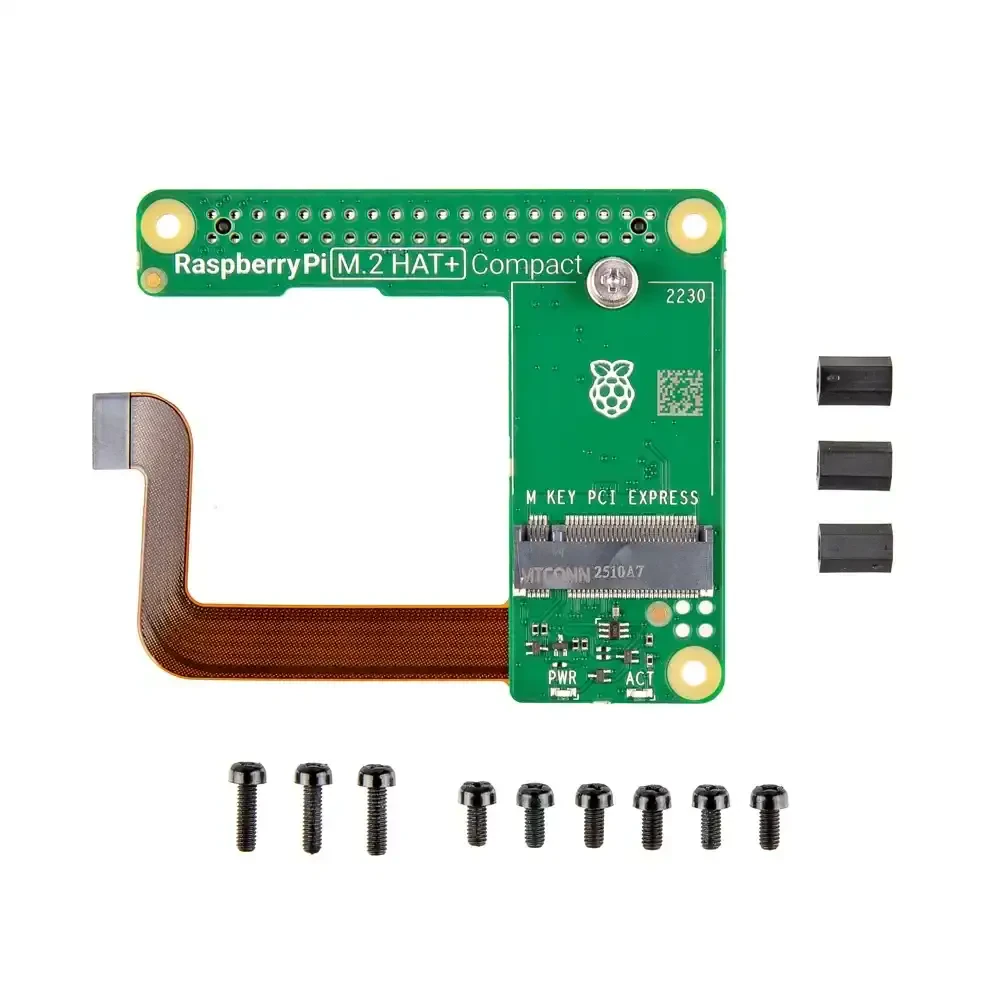

• Includes mounting screws and accessories for SSD installation

• Optimized design for low power consumption and high performance

• Boot support via Raspberry Pi firmware update

Useful Documents:

• Product Brief (PDF)
• Installation and Documentation
• Circuit Schematics (PDF)
