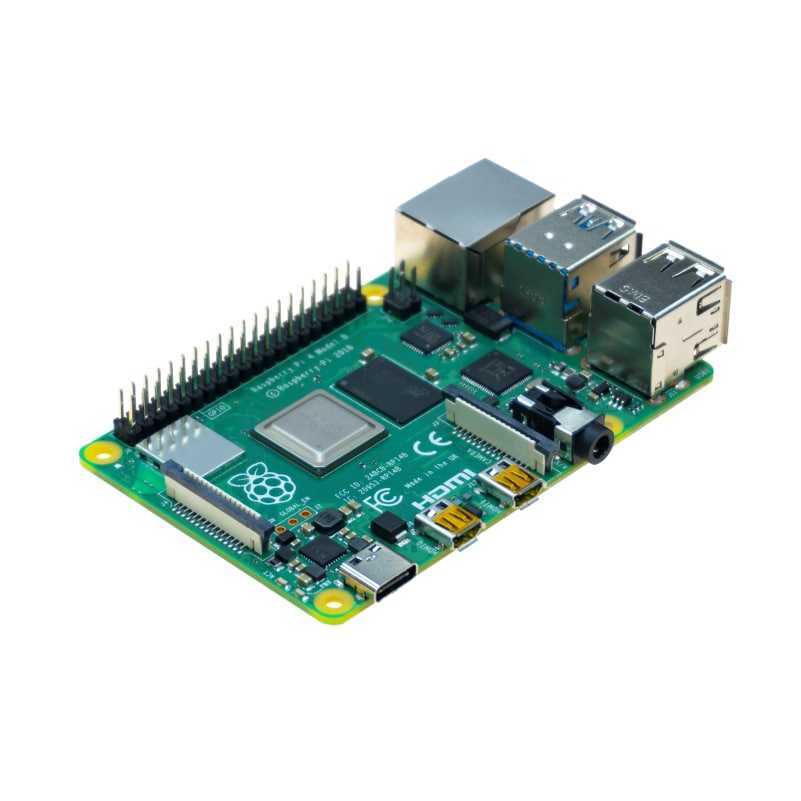

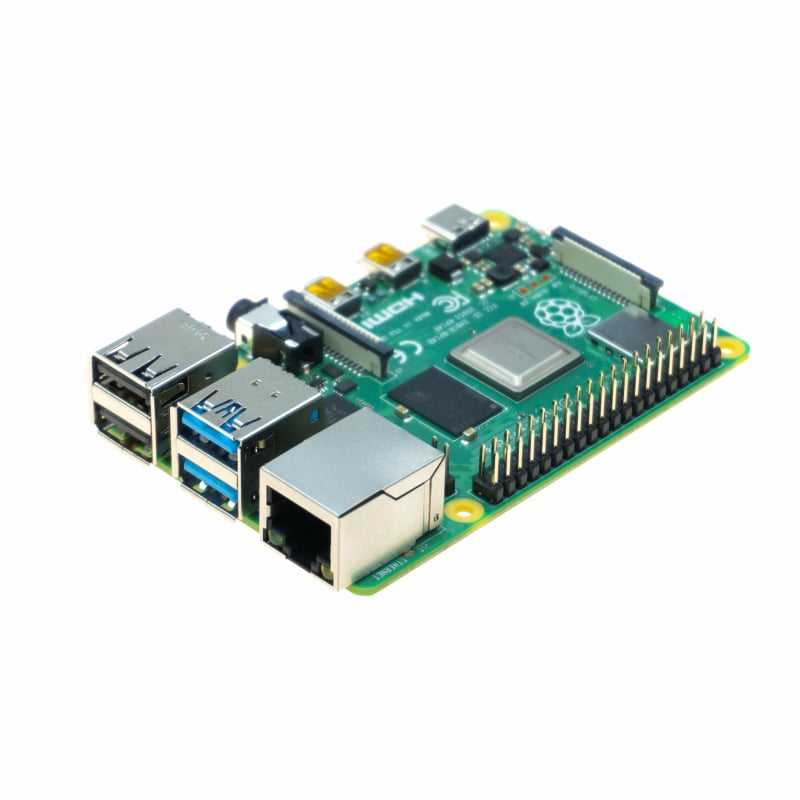

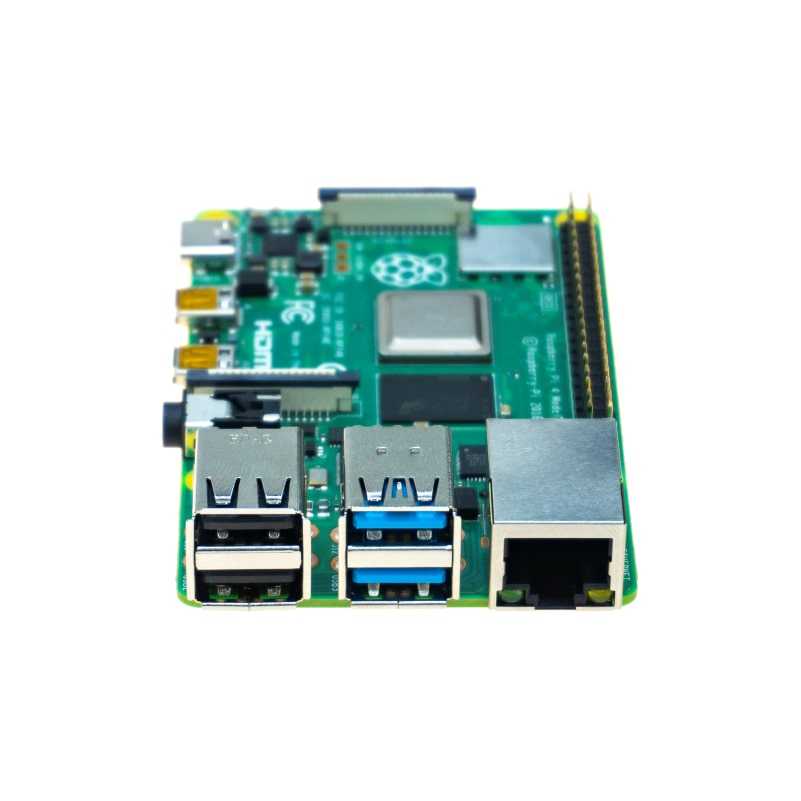

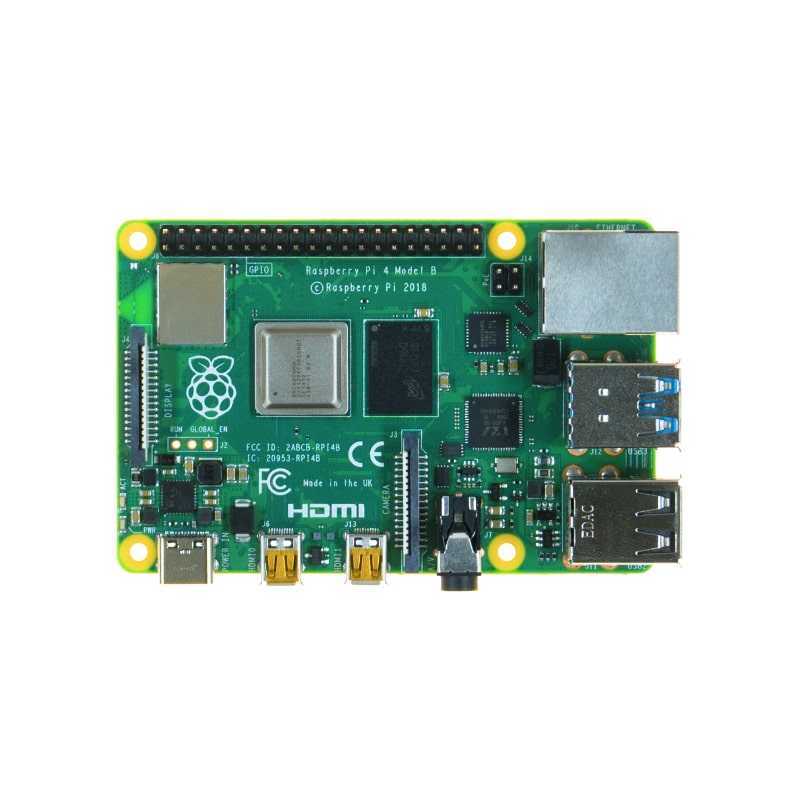

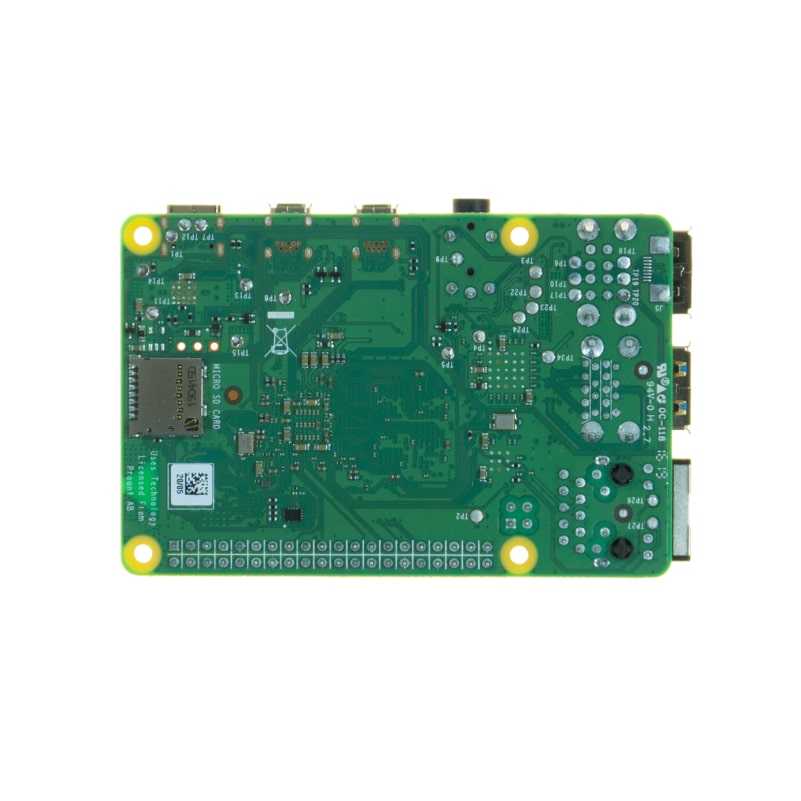

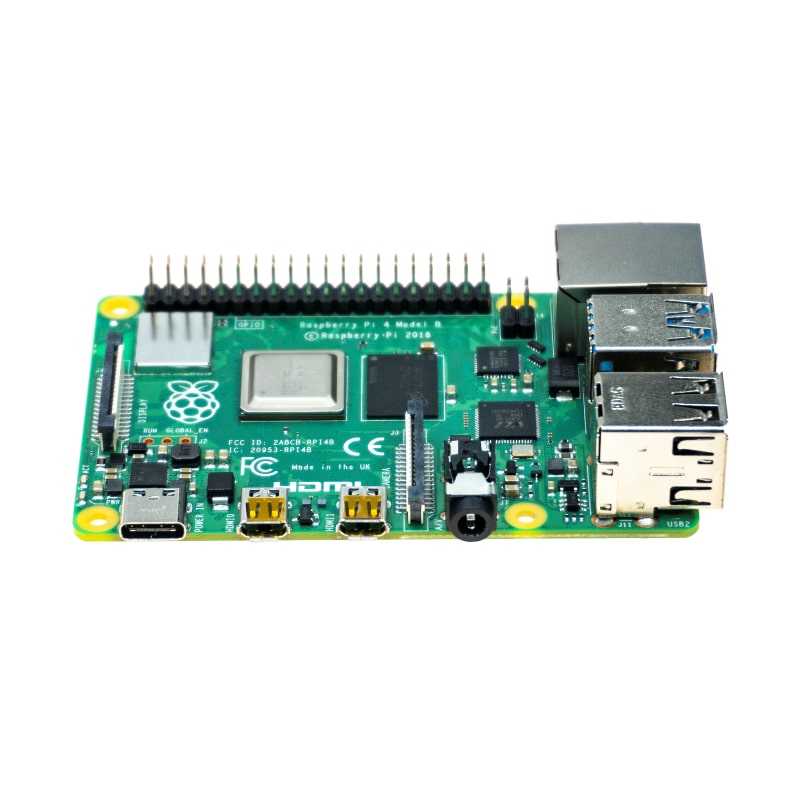

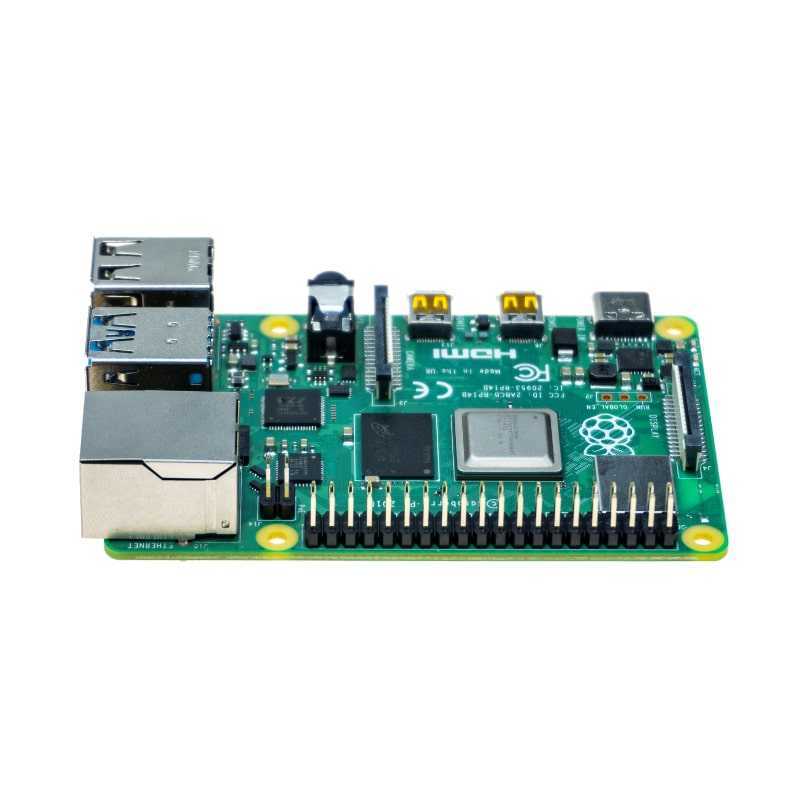

Raspberry Pi 4 - 3GB

Raspberry Pi 4 - 3GB RAM

What is Raspberry Pi?

Raspberry Pi is a single-board computer. This means all the components necessary for a computer, such as the processor, RAM memory, and input/outputs, are gathered on a single circuit board. Thanks to its small design and compact structure, it is possible to use these computers in robotics projects, smart home systems, embedded systems, kiosks, or even as a desktop computer by connecting peripherals such as a keyboard/mouse and monitor. Computers like Raspberry Pi are preferred in cases where microcontroller boards like Arduino lack sufficient power and multiple processes need to be performed simultaneously (e.g., a mobile robot broadcasting video over the web). In addition to Linux operating systems, Raspberry Pi is capable of running many ready-made systems specifically developed to function as gaming machines, media centers, and network devices.

What Can I Do with Raspberry Pi?

Using Raspberry Pi, it is possible to create software projects using almost any programming language that can run on Linux. You can develop software on Raspberry Pi with Python, which is easy to understand and use for beginners; Scratch, a block-based language developed specifically for children; and languages like Java or C/C++ for more advanced users. By using the pin connections (GPIO pins) on the Raspberry Pi, you can blink LEDs, control the movements of electric motors, read different types of sensor data, make your own IP camera using Raspberry Pi compatible cameras, and even turn devices running on 220V AC on and off with additional modules like relay boards. If you are not interested in these types of projects, you can turn your Raspberry Pi into a full computer with very low power consumption by connecting a keyboard/mouse and screen.

How to Set Up Raspberry Pi 4?

Before you start using Raspberry Pi 4, you need to install an operating system on an SD card. You can easily complete the step-by-step operating system installation by using this page on our blog site or our YouTube video.

Differences Between Raspberry Pi 4 and Raspberry Pi 3B+

Raspberry Pi 4 comes with many innovations over the previous model, Raspberry Pi 3B+. The first striking feature is that the 1GB LPDDR2 RAM of the previous model has been replaced with 2GB and 3GB LPDDR4-3200 options. Additionally, the 4-core 64-bit processor of Raspberry Pi 4 runs at a frequency of 1.5GHz. The VideoCore VI graphics unit within the Broadcom BCM2711 SoC also runs at a 500MHz clock frequency. Along with these under-the-hood improvements, Raspberry Pi 4 features 2 high-speed USB 3.0 ports and 2 micro-HDMI connections for 4K 60fps video output. The power input socket of Raspberry Pi 4, which requires more power than previous models, is now of the USB-C type.

Other Materials Required for Raspberry Pi 4:

To start using your Raspberry Pi 4 immediately, you will need the following products:

• Micro SD Card
• Raspberry Pi 4 Licensed Power Adapter (5V 3A USB-C)
• Micro HDMI cable

If you wish, you can access the original licensed case compatible with your Raspberry Pi 4 by clicking here.

Raspberry Pi 4 Technical Specifications:

• Broadcom BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
• 2GB/3GB LPDDR4-3200 SDRAM
• 2.4/5.0 GHz 802.11ac wireless network support, Bluetooth 5.0, BLE support
• True Gigabit Ethernet
• 2x USB 3.0, 2x USB 2.0 ports
• Raspberry Pi standard 40-pin GPIO header (fully backward compatible)
• 2 × micro-HDMI ports (up to 4K 60fps support)
• 2-lane MIPI DSI display port
• 2-lane MIPI CSI camera port
• 4-pole 3.5mm jack for audio + composite video output
• H.265 (4kp60 decode), H.264 (1080p60 decode, 1080p30 encode)
• GPU with OpenGL ES 3.0 support
• Micro SD card slot for operating system and data storage
• 5V power input via USB-C (minimum 3A)
• 5V power input via GPIO header (minimum 3A)
• Power over Ethernet (PoE) support (requires separate PoE shield)
• Operating temperature: 0 – 50 °C

Important Note: GPIO pins on Raspberry Pi operate at 3.3V levels. They are NOT 5V compatible.

Raspberry Pi 4 Pinout - Is there a difference from 3B+?

Raspberry Pi 4 has the same standard 40-pin GPIO header used since Raspberry Pi Model B+. Therefore, it can work in full compatibility with your existing shield boards and other hardware.

Documents and Useful Links:

• Official Raspberry Pi website
• Creating a Minecraft Server with Raspberry Pi
• Operating system download page
• Our Raspberry Pi blog content
• Raspberry Pi Lessons video series
• Raspberry Pi Python lessons video series
• Mechanical drawings
• Circuit schematics
• Detailed hardware documentation
