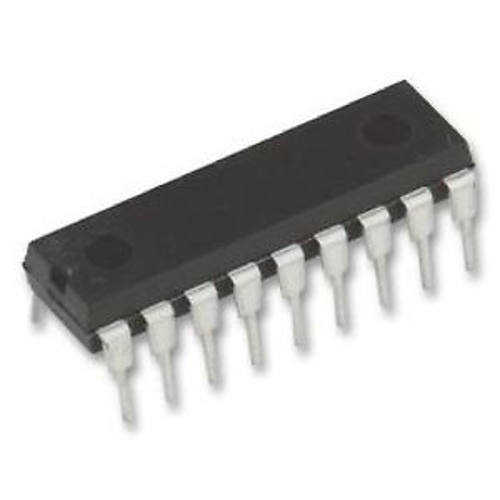

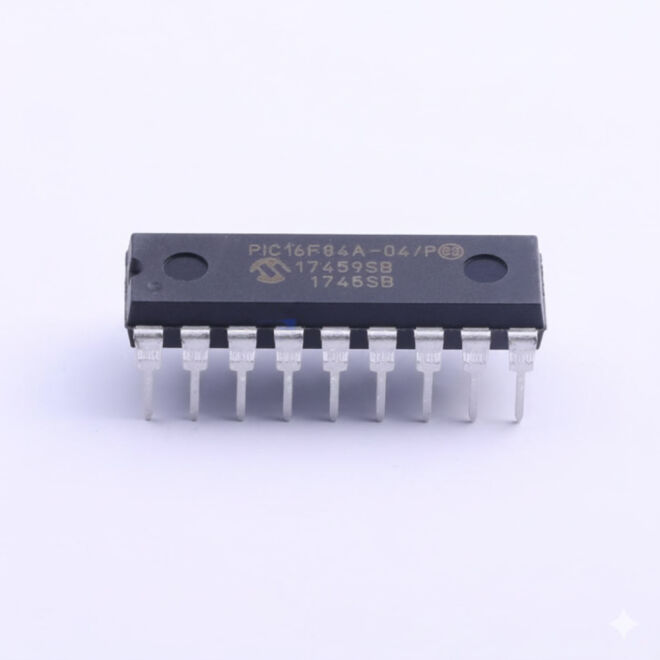

PIC16F84A-04/P DIP-18 8-Bit PIC Microcontroller

PIC16F84A-04/P DIP-18 8-Bit PIC Microcontroller

The PIC16F84A-04/P is a classic Flash-based 8-bit PIC microcontroller manufactured by Microchip. Thanks to its simple architecture and reliable performance, it has been widely used for many years in education, hobby projects, and basic embedded system applications.

The DIP-18 (Through-Hole) package makes soldering and prototyping easy, making it ideal for use with breadboards and development kits. With external oscillator support and a limited pin count, it is well suited for learning and developing fundamental microcontroller-based applications.

PIC16F84A-04/P Technical Specifications:

• 8-bit PIC microcontroller

• CPU core: PIC16

• Maximum operating frequency: 4MHz

• Program memory: 1.75KB Flash

• EEPROM: 64 Bytes

• Supply voltage: 4V – 5.5V

• Oscillator type: External

• Total I/O pins: 13

• Package type: DIP-18 (Through-Hole)
