Original Arduino® Zero

Original Arduino® Zero

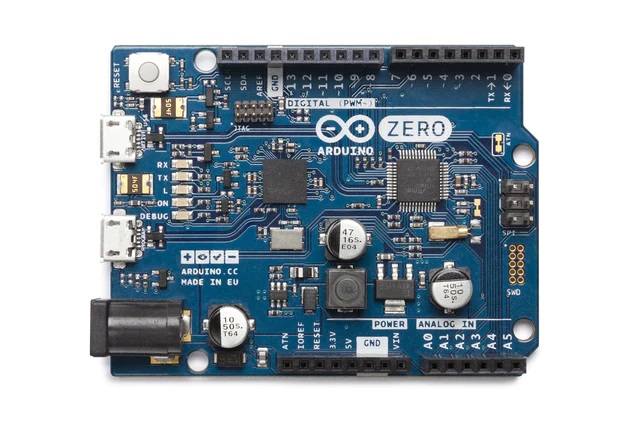

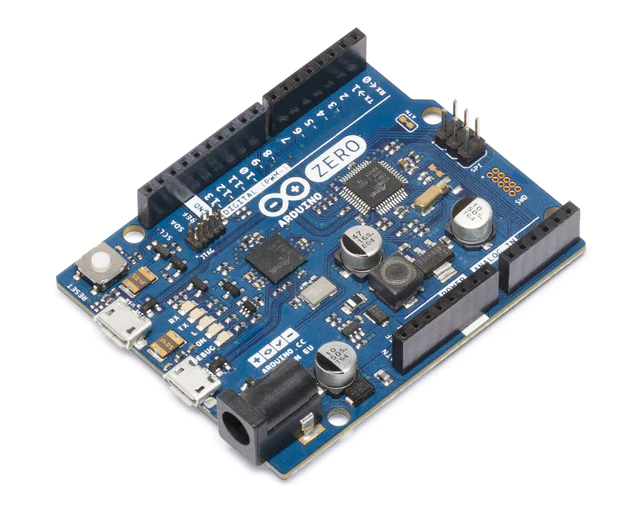

Arduino® Zero is a powerful and flexible development board designed for users looking for an advanced microcontroller platform. Featuring the ATSAMD21G18 microcontroller, this board offers higher processing performance, low power consumption, and advanced project possibilities with its 32-bit ARM® Cortex®-M0+ architecture.

Arduino® Zero is an ideal platform for education, hobby, prototyping, IoT, data acquisition, sensor applications, and more advanced embedded system projects. Thanks to its programmable structure with Arduino® IDE, you can easily benefit from the libraries, example projects, and broad community support in the Arduino® ecosystem.

Original Arduino® Zero Highlights:

• 32-bit ARM® Cortex®-M0+ Microcontroller: Offers high performance at a 48 MHz clock speed with the ATSAMD21G18 microcontroller.
• Wide Input/Output Options: Adapts to different project needs with 20 digital I/O pins, 6 analog input pins, and 1 analog output pin.
• Analog Output Support: Provides 10-bit DAC output through the A0 pin.
• Advanced Communication Options: You can easily communicate with sensors, displays, and other modules through UART, SPI, and I2C connections.
• Arduino® IDE Support: It can be easily programmed with Arduino® IDE and used compatibly with libraries in the Arduino® ecosystem.
• Low Power Consumption: Suitable for low-power projects with its 3.3V operating voltage.

Arduino® Zero combines the classic ease of use of Arduino® with a more advanced 32-bit microcontroller architecture. In this way, it offers a powerful development environment for both basic electronics projects and more complex applications.

Original Arduino® Zero Technical Specifications:

• Microcontroller: ATSAMD21G18, 32-bit ARM® Cortex®-M0+
• Operating Voltage: 3.3V
• Digital I/O Pins: 20
• PWM Pins: 3, 4, 5, 6, 8, 9, 10, 11, 12, 13
• UART: 2 units (Native and Programming)
• Analog Input Pins: 6 units, 12-bit ADC channels
• Analog Output Pins: 1 unit, 10-bit DAC
• External Interrupt: Can be used on all pins except pin 4
• DC Current per I/O Pin: 7 mA
• Flash Memory: 256 KB
• SRAM: 32 KB
• EEPROM: None
• Built-in LED: Pin 13
• Clock Speed: 48 MHz
• Length: 68 mm
• Width: 53 mm
• Weight: 12 g

Original Arduino® Zero Communication:

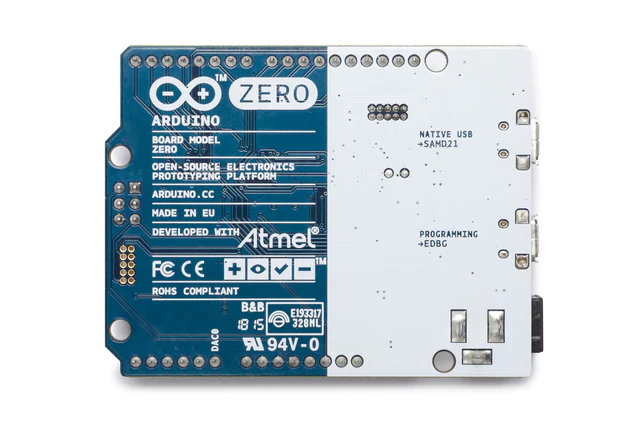

Arduino® Zero includes UART, SPI, and I2C communication options. Pins 0 (RX) and 1 (TX) can be used for serial communication. In addition, the native USB port can be used with the SerialUSB class. This structure provides flexible use for computer connection and communication with external modules.

Original Arduino® Zero Input and Output:

The 20 general-purpose I/O pins on Arduino® Zero can be used as digital input or output. All pins operate at a 3.3V logic level. Pins 3, 4, 5, 6, 8, 9, 10, 11, 12, and 13 can be used for PWM output. While the analog inputs offer 12-bit ADC resolution, the A0 pin can be used as a 10-bit DAC analog output.

Original Arduino® Zero Programming:

Arduino® Zero can be programmed with Arduino® IDE. After the required board support is installed through the Board Manager, you can easily develop your projects by selecting the appropriate board. Thanks to the example codes, libraries, and community resources in the Arduino® ecosystem, the development process becomes fast and accessible.
