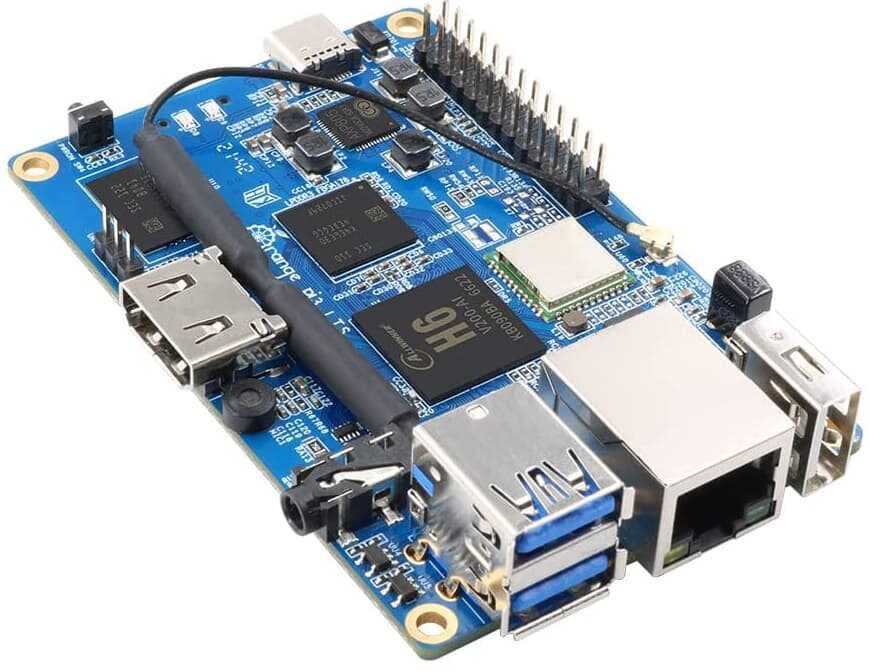

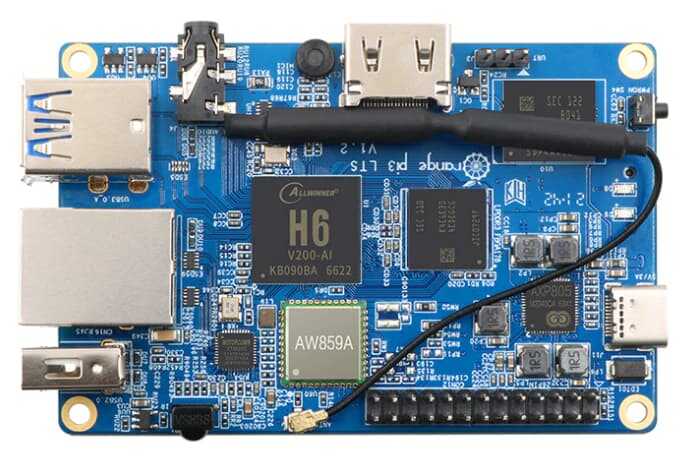

  • Orange Pi 3 LTS Development Board

    Orange Pi 3 LTS; It is an open-source single-board computer of the Orange Pi series, supporting Android 9, Ubuntu, Debian operating systems. It uses the Allwinner H6 SoC and has 2GB of LPDDR3 SDRAM memory.



    Orange Pi 3 LTS Pin Diagram:



    orange-pi-3-lts-eng-Pin Out.jpg



    Orange Pi 3 LTS Technical Specifications:

    • CPU: Allwinner H6, Quad-core 64-bit 1.8GHz high-performance Cortex-A53 processor
    • GPU: High-performance multi-core GPU Mali T720, OpenGL ES3.1/3.0/2.0/1.1, Microsoft DirectX 11 FL9_3, ASTC(Adaptive Scalable Texture Compression), floating point operation greater than 70 GFLOPS
    • Power Management Chip: AXP805
    • Data Store: 2GB LPDDR3 (shared with GPU)
    • Onboard Storage: Micro SD card slot, 8GB EMMC Flash
    • Onboard Network: YT8531C Chip, Support 10/100M/1000M Ethernet
    • Built-in WIFI+Bluetooth: AW859A Chip, support IEEE 802.11 a/b/g/n/ac, support BT5.0
    • Video Output: AW859A Chip, support IEEE 802.11 a/b/g/n/ac, support BT5.0
    • Audio Output: HDMI Output
    • Power Supply: 5V3A Type-C USB: 5V3A Type-C
    • Low Level Peripherals: 26pin connector with 1* I2C, 1*SPI, 1*UART and Multiple GPIO Ports
    • Debug Serial Port: UART-TX, UART-RX and GND
    • Button: Power Button (SW4)
    • LED: Power LED and Status LED Low Level
    • Peripherals: 26 Pin GPIO(1x3) pin: UART, ground.
    • LED: Power LED、Status LED and USB3.0 LED
    • IR Receiver: IR remote control support control
    • Supported OS: Android 9.0, Ubuntu, Debian
    • Dimensions: 56mm*85mm
    • Weight: 45g

    Orange Pi 3 LTS Dimensions:
