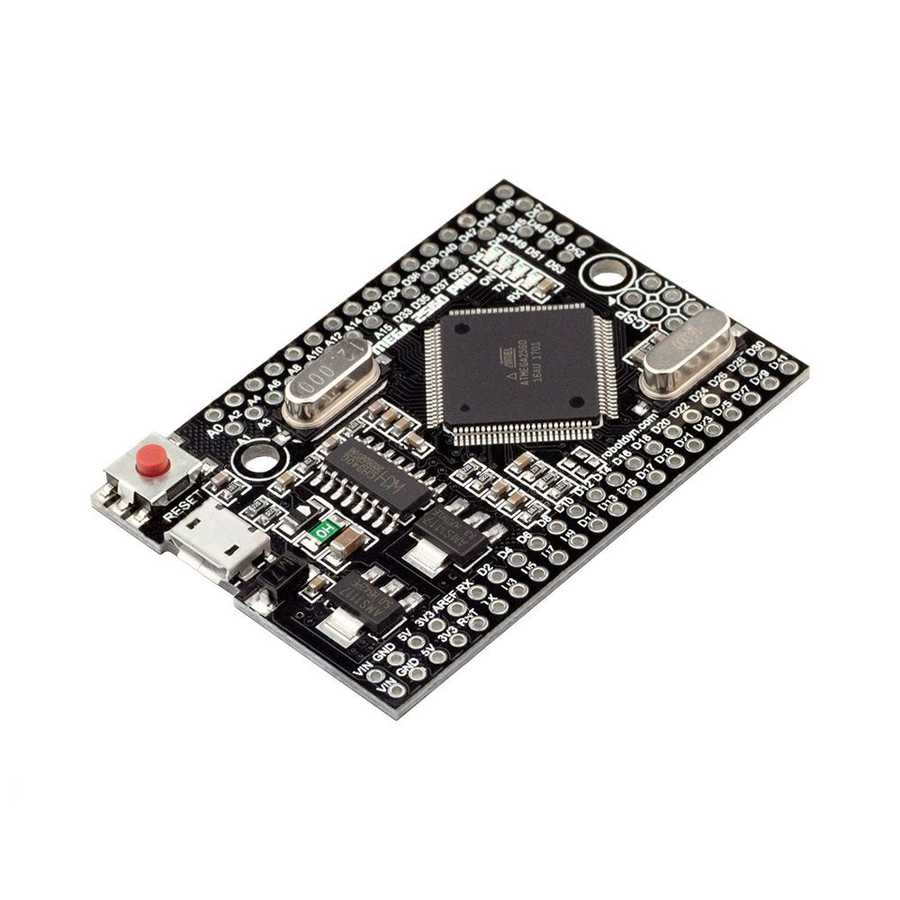

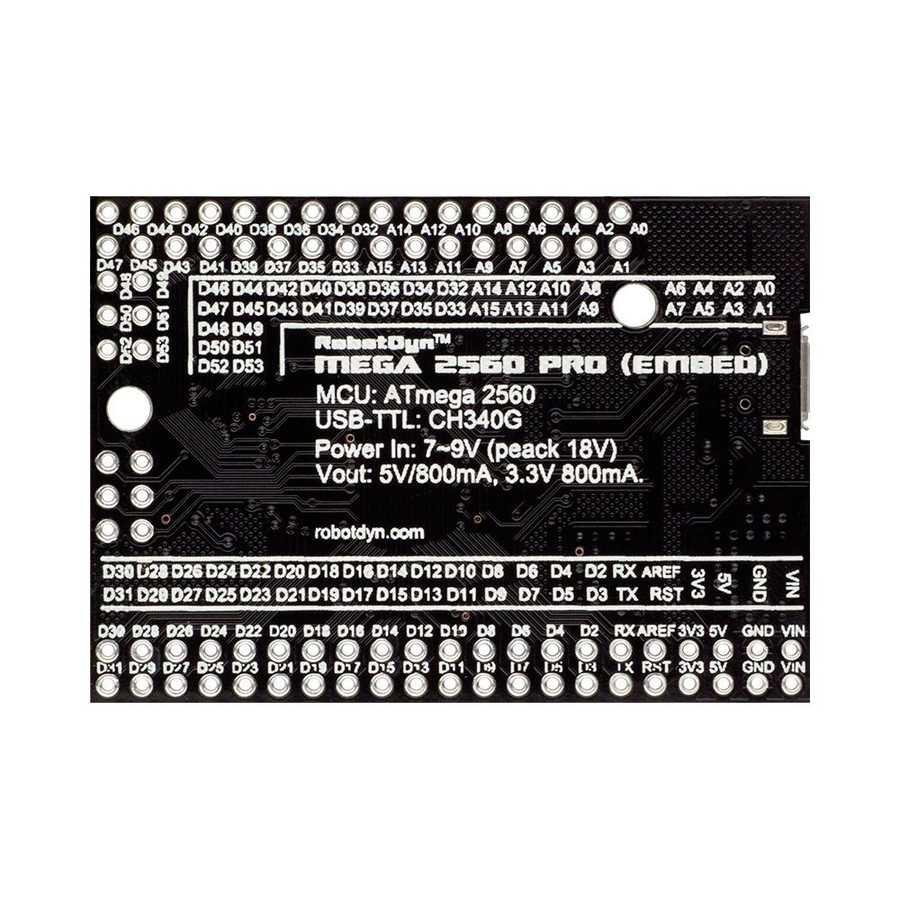

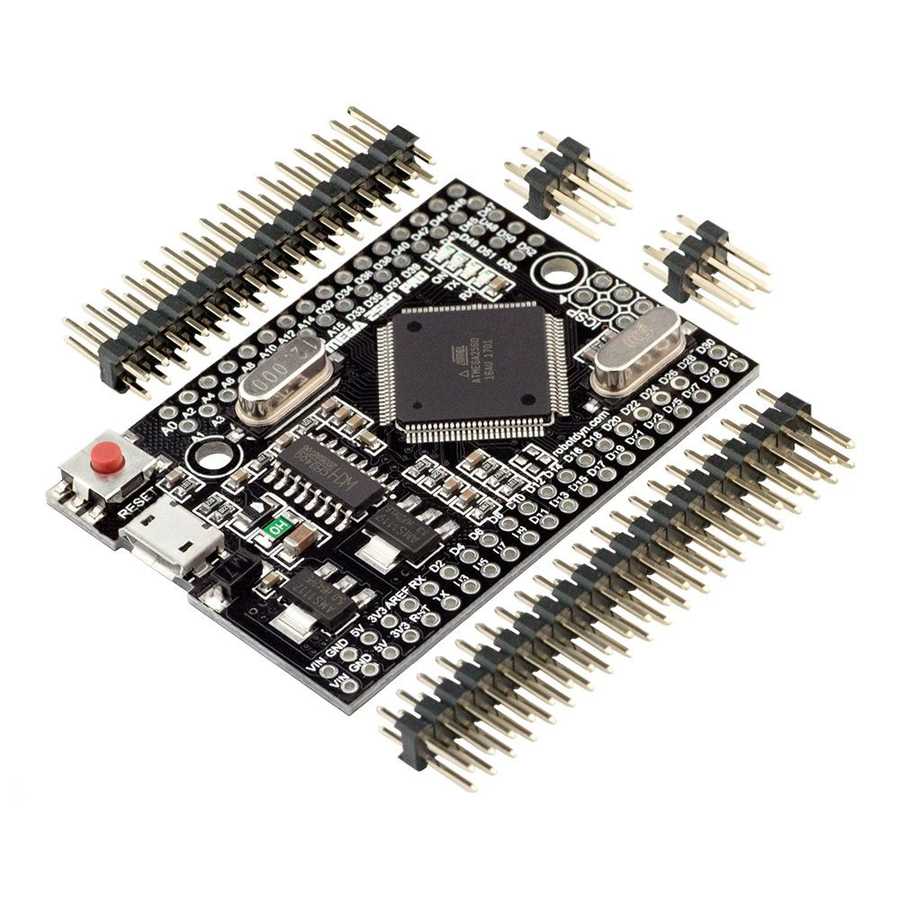

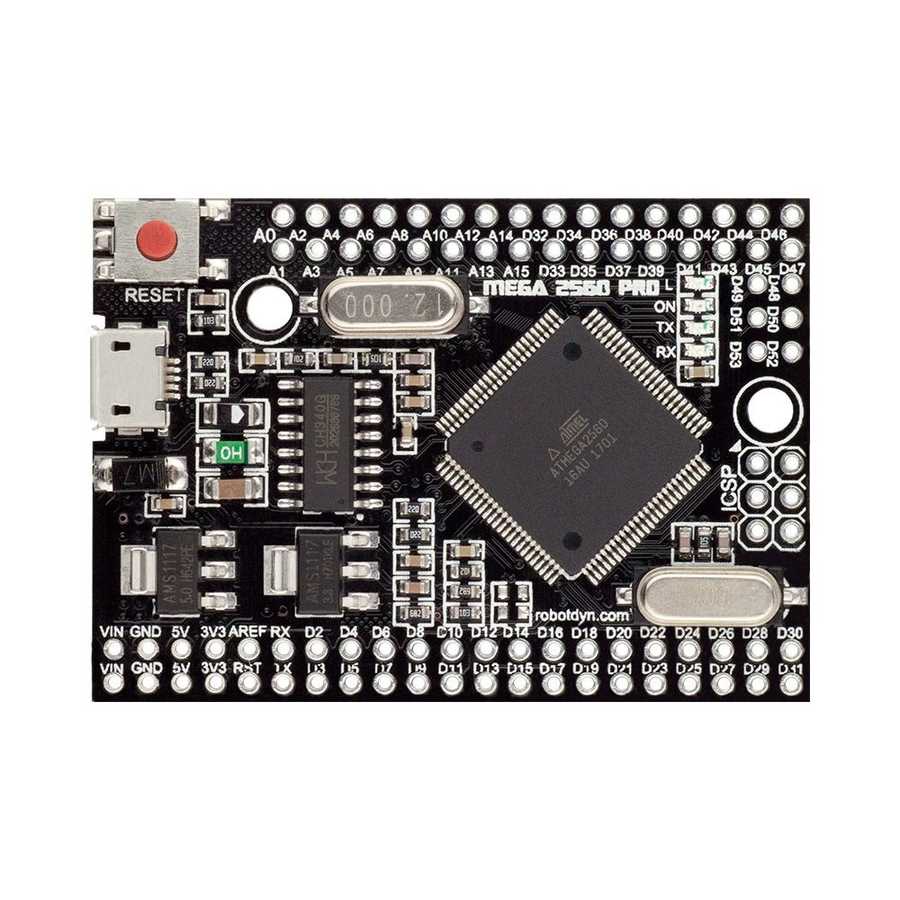

Mini Mega 2560 Pro Development Board Compatible with Arduino (CH340)

Mini Mega 2560 Pro Development Board Compatible with Arduino (CH340)

Mini Mega 2560 Pro development board compatible with Arduino is a compact and optimized compatible version of the original Arduino® Mega 2560 R3 design.
Compared to the original Arduino® Uno R3, it offers more input/output pins and memory, while being much more compact than standard Mega dimensions, providing both space savings and high performance in your projects.
Mini Mega 2560 Pro development board can be easily used in almost all of your projects, from entry-level to advanced applications.

The product uses an ATmega2560 microcontroller operating at a frequency of 16 MHz.
Thanks to the CH340G USB-to-Serial converter integrated circuit on the board, you can connect the device directly to your computer.
You can easily program it with the Arduino® IDE software via the COM port created on your computer.

Mini Mega 2560 Pro Development Board Compatible with Arduino (CH340) Technical Specifications:

• Microcontroller: ATmega2560
• USB-to-Serial Converter: CH340G
• Logic Level: 5V
• Operating Voltage: 5V
• Input Voltage (Recommended): 9-12V via VIN / DC Jack
• Power Output: 5V - 800mA
• Power Consumption: 220mA at 5V
• USB Connection: Micro USB
• Clock Frequency: 16 MHz
• Digital I/O Pins: 54
• Analog Input Pins: 16
• Flash Memory: 256 KB (ATmega2560)
• SRAM: 8 KB (ATmega2560)
• EEPROM: 4 KB (ATmega2560)
• Interface Type: ICSP
• Operating Temperature: -40°C / +85°C
• Dimensions: 38 mm x 54 mm

If you are new to the Arduino® ecosystem and want to make a quick start with your projects, you can check out our Lessons for Arduino® series prepared on our blog site.
