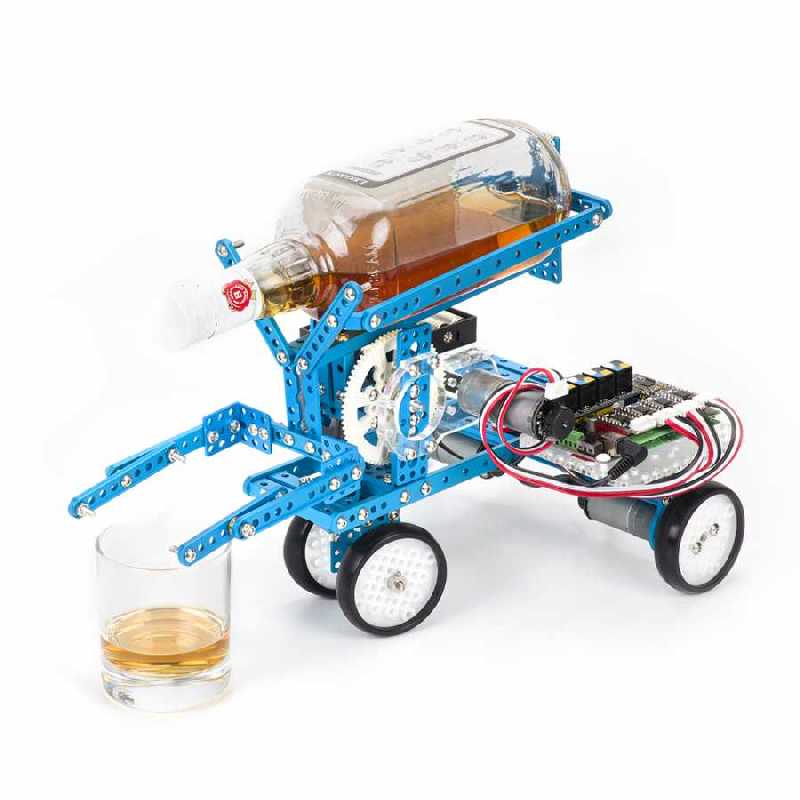

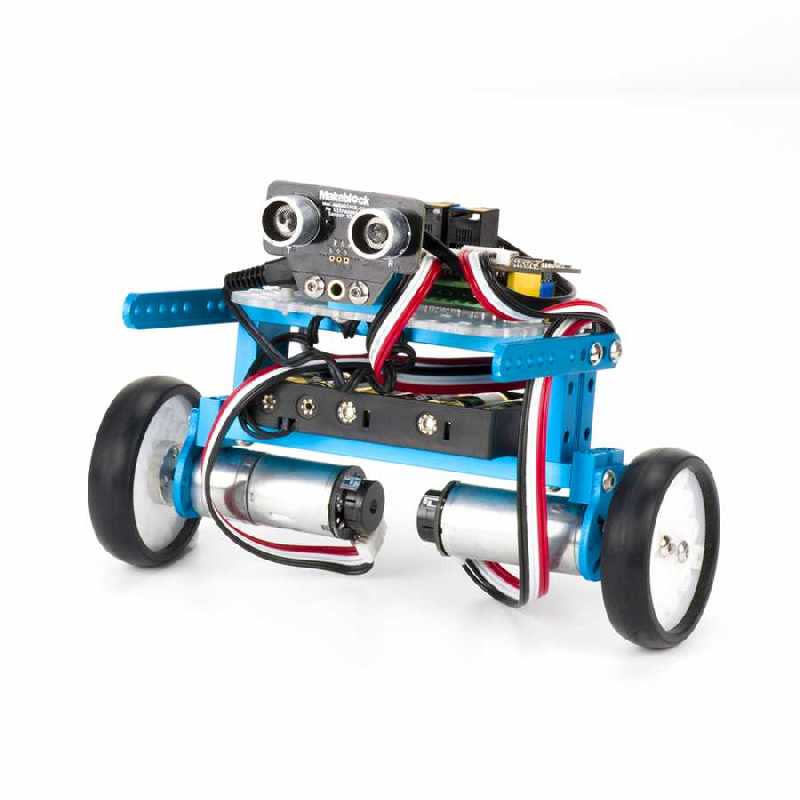

It is easier now to make your dream robots with this extensive kit! You do not need any experience to use this kit.
Here comes new version of Ultimate Robot Kit: Ulitmate 2.0!!!
To see what is new on Ultimate 2.0 please click
here.
Everything needed for a perfect robot is in this set: metal gearmotors, controller based on Arduino, several sensors, RGB LED strip, robotic gripper and many more mechanic parts!
Features:

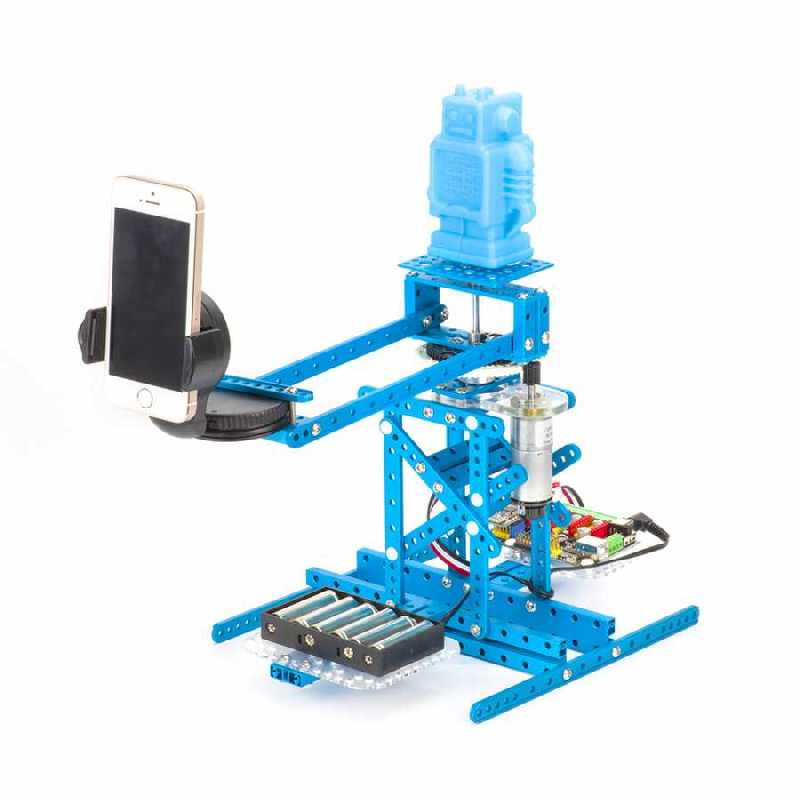

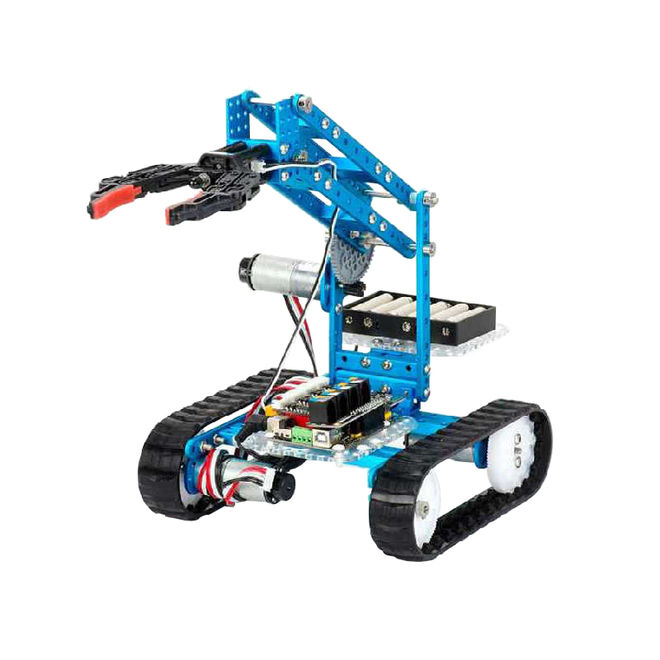

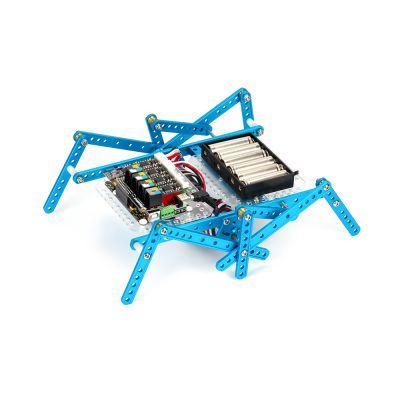

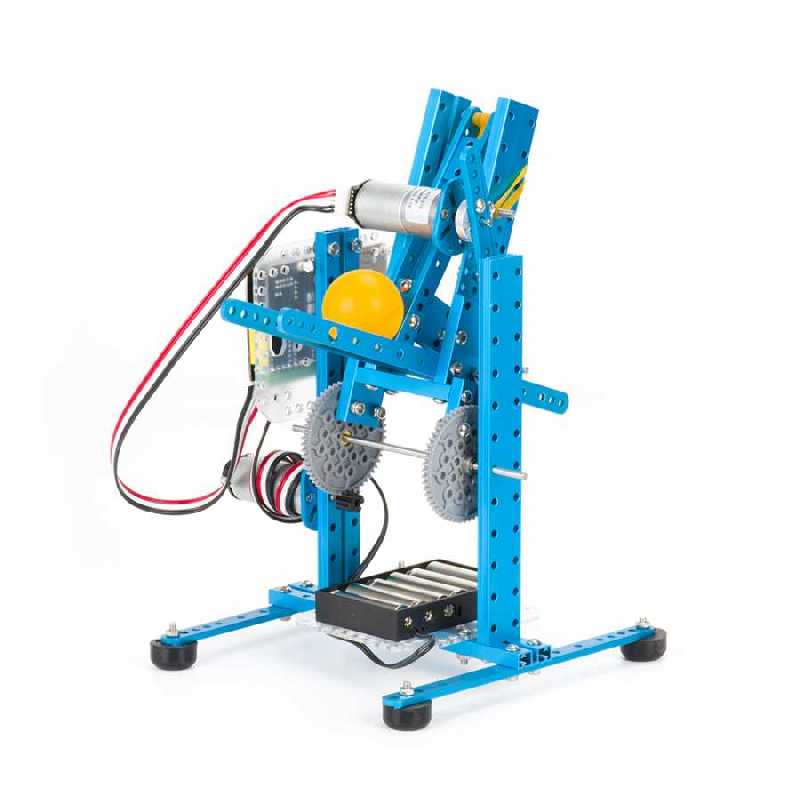

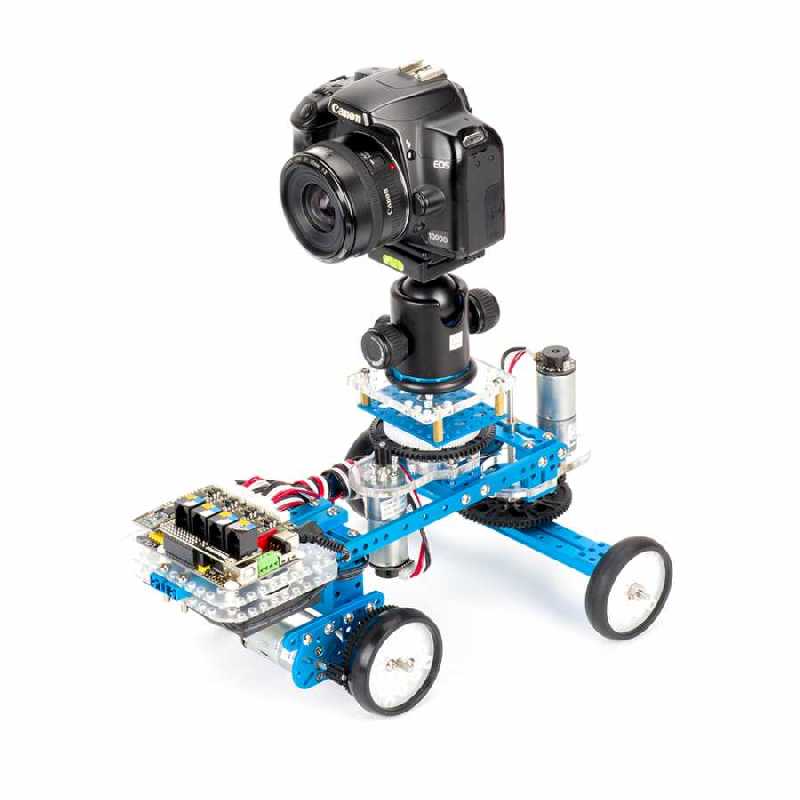

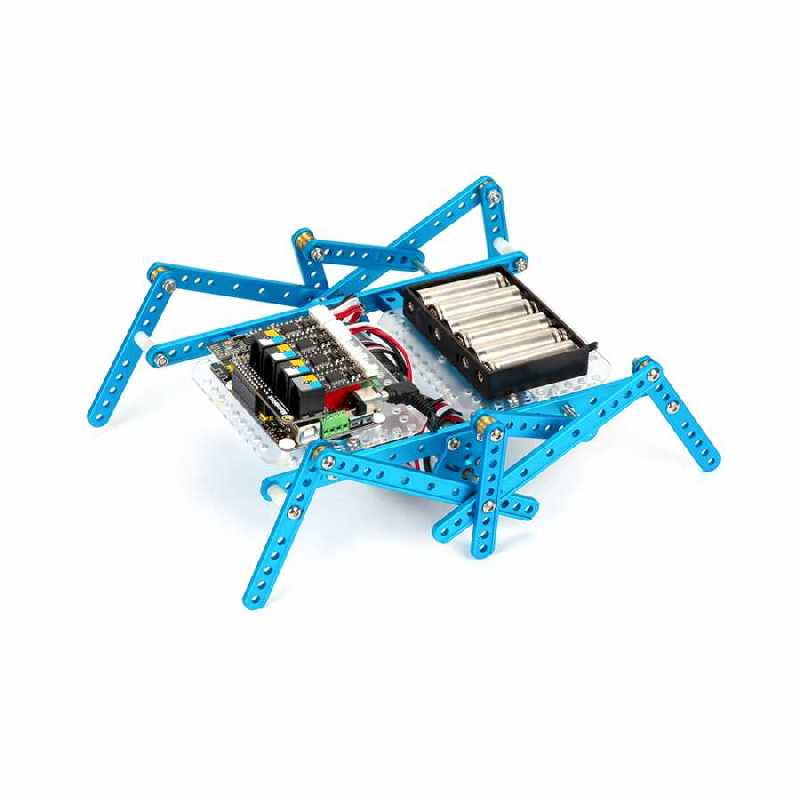

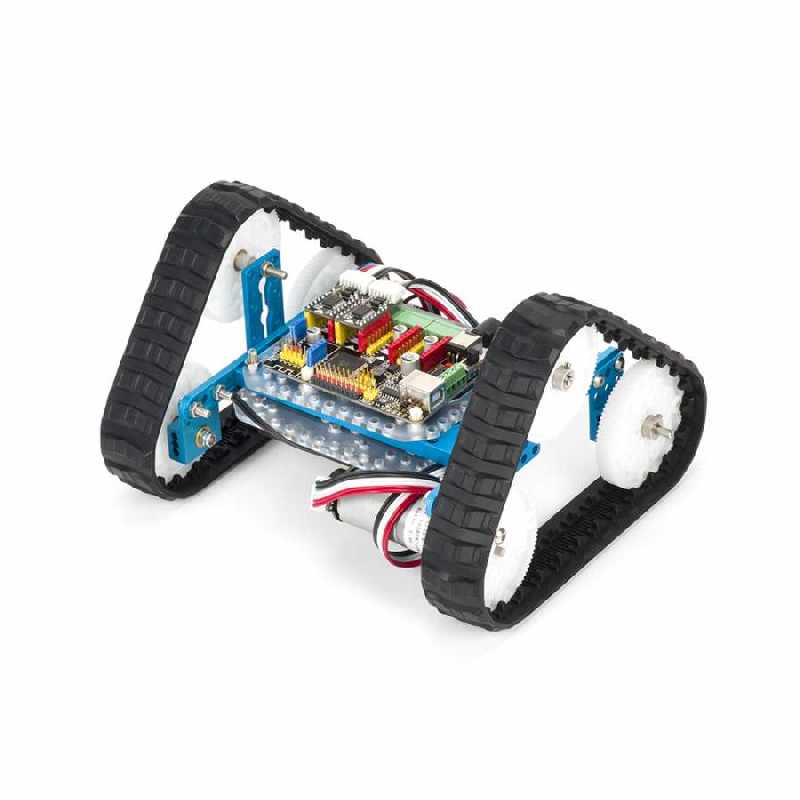

- Ten building forms will meet all your need for different application scenes
- Great for learning robotics, electronics, graphical programming, Arduino programming and Python programming
- Anodized 6061 aluminum mechanical parts with threaded-slot design brings an easy way of building the robot
- Three powerful encoder motors enable you to feel every step of the robot
- Wirelessly control your robot with smart devices through Bluetooth connection
- Powerful MegaPi main board
Programming and Control:
- Smart phone app (free)
- Scratch (Visual programming for children)
- Arduino
Parts List:
- 4 × Beam0824-016
- 6 × Plastic Timing Pulley 90T
- 4 × Screw M4×22
- 5 × Beam0824-032
- 3 × Plastic Gear 8T
- 4 × Screw M4×30
- 3 × Beam0824-064
- 2 × Plastic Gear 56T
- 47 × Nut M4
- 2 × Beam0824-128
- 2 × Plastic Gear 72T
- 10 × Nylon Lock Nut M4
- 1 × Slide Beam0824-176
- 1 × 360°Mobile Phone Bracket
- 1 × 25mm DC Encoder Motor 9V/86RPM
- 2 × Slide Beam0824-192
- 2 × Track 80×139mm
- 2 × 25mm DC Encoder Motor 9V/185RPM
- 2 × Beam0808-024
- 1 × Battery Holder 6AA
- 1 × Makeblock Robot Gripper
- 2 × Plate0324-056
- 12 × Flange Copper Sleeve 4×8×4mm
- 3 × 25mm DC Encoder Motor Cable
- 3 × Plate0324-088
- 12 × Shaft Collar 4mm
- 1 × MegaPi
- 4 × Beam0412-076
- 6 × Threaded Shaft 4×39mm
- 4 × MegaPi Encoder/DC Motor Driver
- 4 × Beam0412-092
- 2 × 4mm D shaft 50mm
- 1 × MegaPi Shield for RJ25
- 4 × Beam0412-140
- 2 × Shaft D4×88mm
- 1 × Bluetooth Module
- 6 × Beam0412-188
- 1 × 4mm D shaft 160mm
- 1 × Me Ultrasonic Sensor
- 2 × Beam0412-220
- 4 × Brass Stud M4×16
- 1 × Me Line Follower
- 2 × Bracket P3
- 4 × Plastic Ring 4×7×2
- 1 × Me Shutter
- 3 × 25mm DC Motor Bracket
- 8 × Plastic Ring 4×7×3
- 1 × Me 3-Axis Accelerometer and Gyro Sensor
- 4 × Bracket 3×3
- 2 × Plastic Ring 4×7×10
- 1 × Me Adapter
- 2 × Plate 3×6
- 20 × Plastic Rivet 4060
- 1 × USB Cable B-1.3m
- 1 × Plate 7×9-B
- 20 × Plastic Rivet 4100
- 2 × 6P6C RJ25 Cable-20cm
- 6 × Shaft Connector 4mm
- 20 × Plastic Rivet 4120
- 1 × 6P6C RJ25 Cable-35cm
- 4 × Stiffener1616-08-M4
- 12 × Headless Set Screw M3×5
- 10 × Rubber Bank
- 1 × Plane Bearing Turntable D34×24mm
- 8 × Headless Set Screw M3×8
- 10 × Nylon Cable Tie 1.9×100
- 1 × Quick Release Plate
- 6 × Countersunk Screw M3×8
- 1 × Cross&2.5mm HEX Screwdriver
- 2 × 25mm Motor Bracket-72T
- 4 × Countersunk Screw M3×10
- 1 × Small Four-way Socket Wrench
- 2 × MegaPi Acrylic Bracket
- 50 × Screw M4×8
- 1 × Wrench 5mm&7mm
- 4 × Rubber Blanket
- 46 × Screw M4×14
- 1 × HEX Key 1.5mm
- 4 × Tire 90T B
- 10 × Screw M4×16
