IRF730 - 5.5A 400V MOSFET - TO220 Mosfet

IRF730 - 5.5 A 400 V MOSFET - TO-220AB

The IRF730 is an N-channel MOSFET designed for high-voltage applications. It is widely used in power supplies, motor control circuits, and industrial electronic systems. With a drain-source voltage rating of up to 400V and a drain current of 5.5A, it offers a reliable solution for medium-power designs. Its low on-resistance and fast switching capability ensure high efficiency and minimal heat generation. The TO-220AB package provides easy mounting and excellent heat dissipation.

IRF730 - 5.5 A 400 V MOSFET - TO-220AB Specifications:

• MOSFET Type: N-Channel

• Maximum Drain-Source Voltage (V_DS): 400 V

• Maximum Continuous Drain Current (I_D): 5.5 A

• Power Dissipation (P_D): 75 W

• Gate Threshold Voltage (V_GS(th)): 2.0V - 4.0V

• On-Resistance (R_DS(on)): 1.5Ω (maximum)

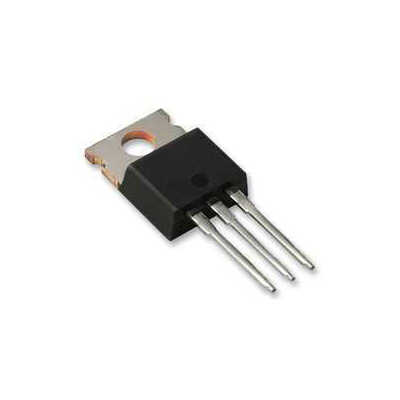

• Package Type: TO-220AB

• Operating Temperature Range: -55°C ~ +150°C

Useful Documents:

• IRF730 Datasheet
