Incremental Photoelectric Rotary Encoder - 400P-R

Product Code
:
18420
Brand / Origin
:
DFROBOT
Quantity
:
4
Without Vat
:
179.66 TL
Quantity:

-

+

Same Day Shipping
If you purchase before 3pm, your products will ship at the same day. Except saturday and sunday
Add to Favorites
You can add this product on your list and check it later.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box
  • INTRODUCTION

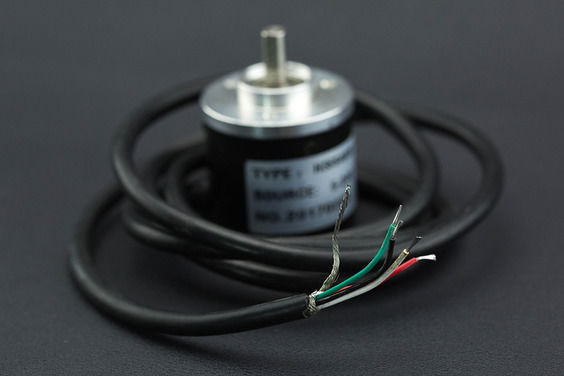

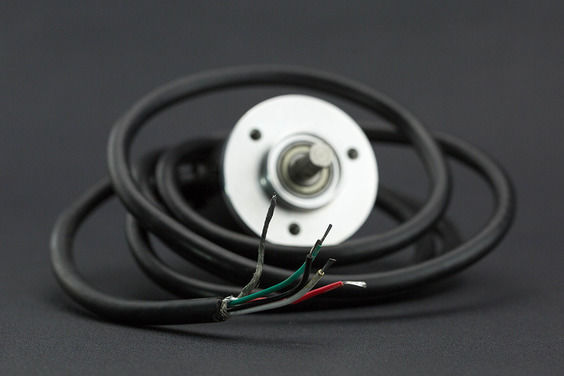

    This is an industrial incremental photoelectric rotary encoder with aluminum material, metal shell and stainless steel shaft. It generates AB two-phase orthogonal pulse signal though the rotation of the grating disk and optocoupler. 400 pulses/round for each phase, and 1600 pulses/round for dual-phase 4 times output. This rotary encoder supports max 5000 r/min speed. And it can be used for speed, angle, angular velocity and other data measurement.

    The photoelectric rotary encoder has a NPN open collector output. It could work with Microcontroller with internal pull-up resistors directly. And it is using 750L05 voltage regulator chip, which has a DC4.8V-24V wide range power input, compatible with Arduino, STM32, PLC and other types of microcontrollers.
    Note: NPN open collector output needs pull-up resistors for the oscilloscope display.

    SPECIFICATION

    • Supply Voltage: 4.8V ~ 24v
    • Encoder Body Size: Φ39× 36.5mm
    • Output Shaft Diameter: Φ6 × 13mm
    • Outside Shaft Platform: Φ20 × 4.85 mm
    • Fixing Holes Screws: M3
    • Weight: 234 g

    DOCUMENTS

    SHIPPING LIST

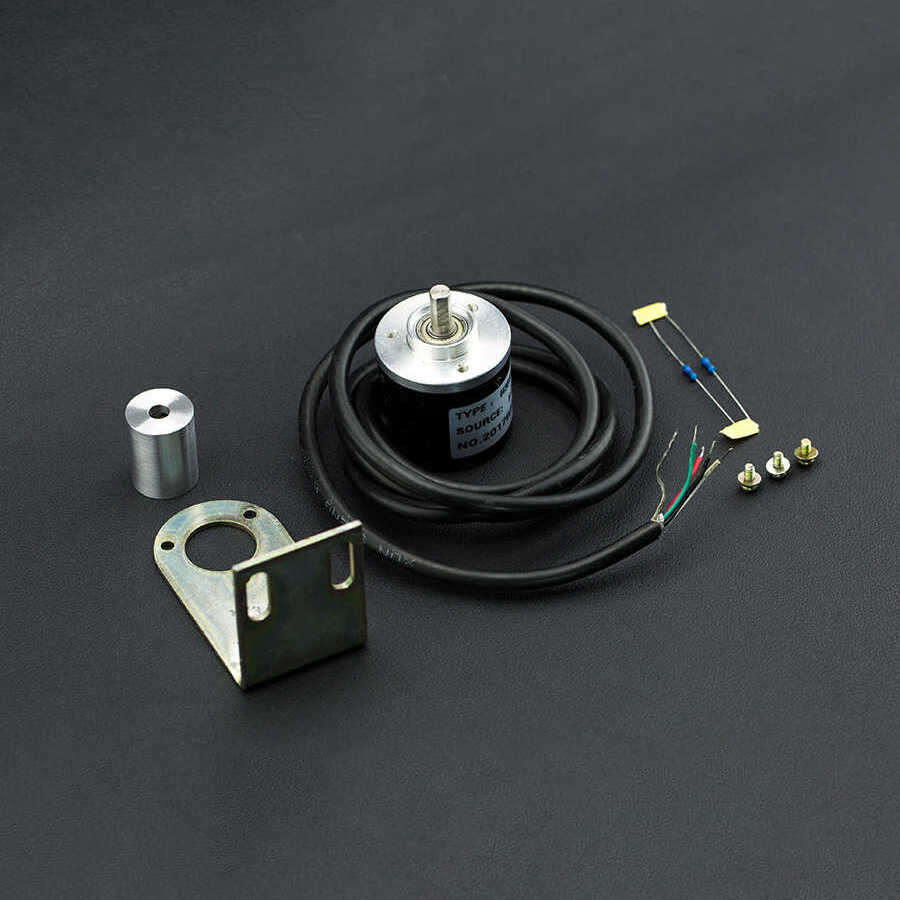

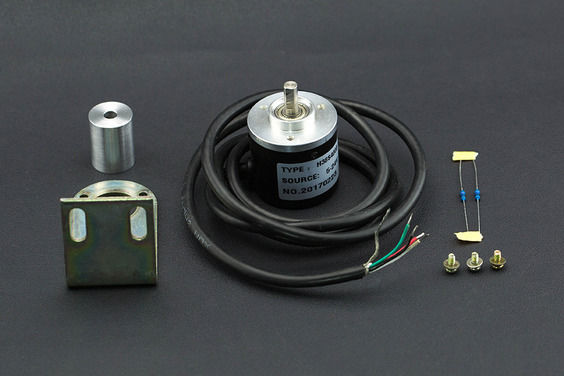

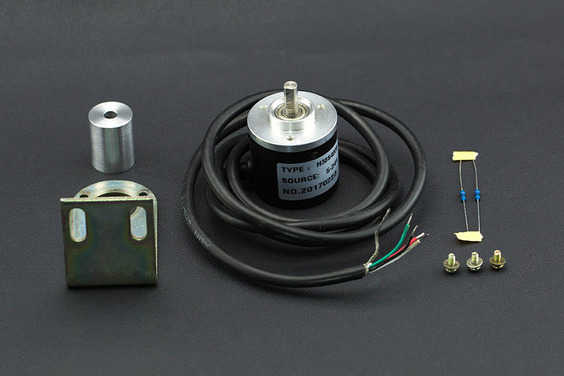

    • Encoder x1
    • Encoder mounting bracket x1
    • 6mm coupling x1
    • Screw accessories x1
    • 10K resistance x2
