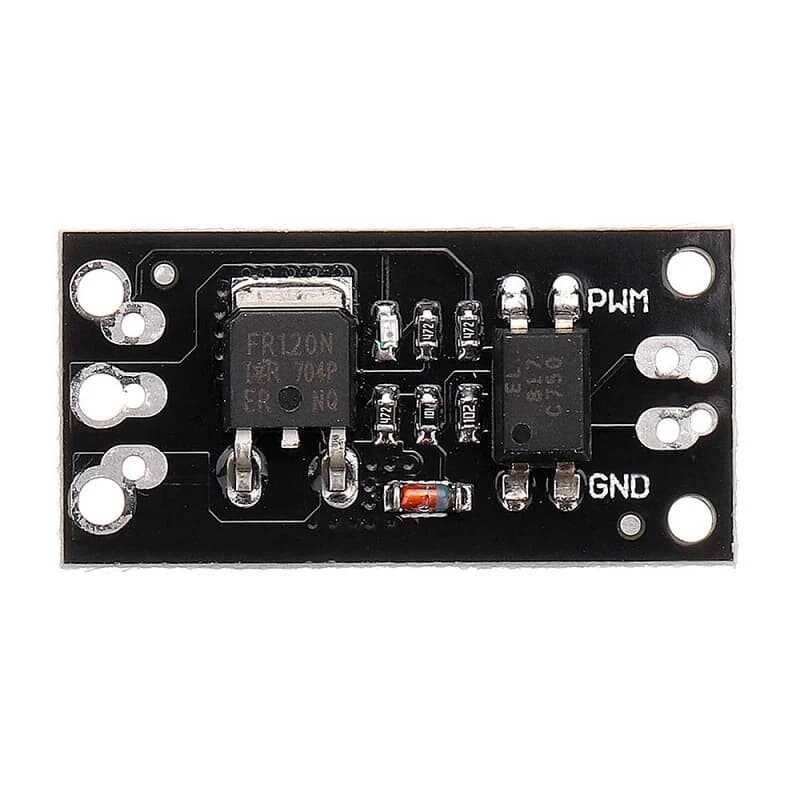

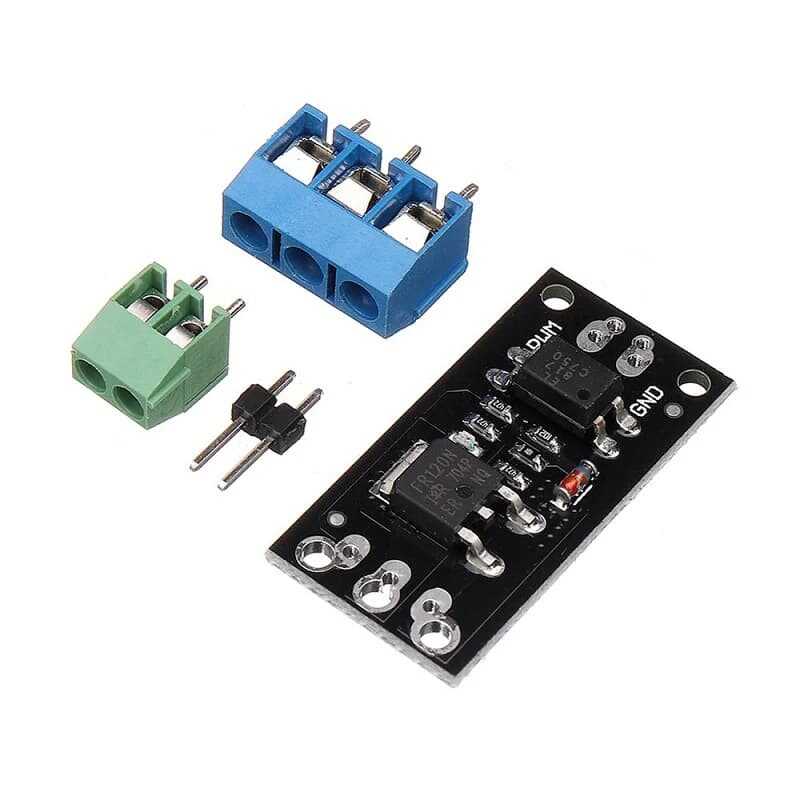

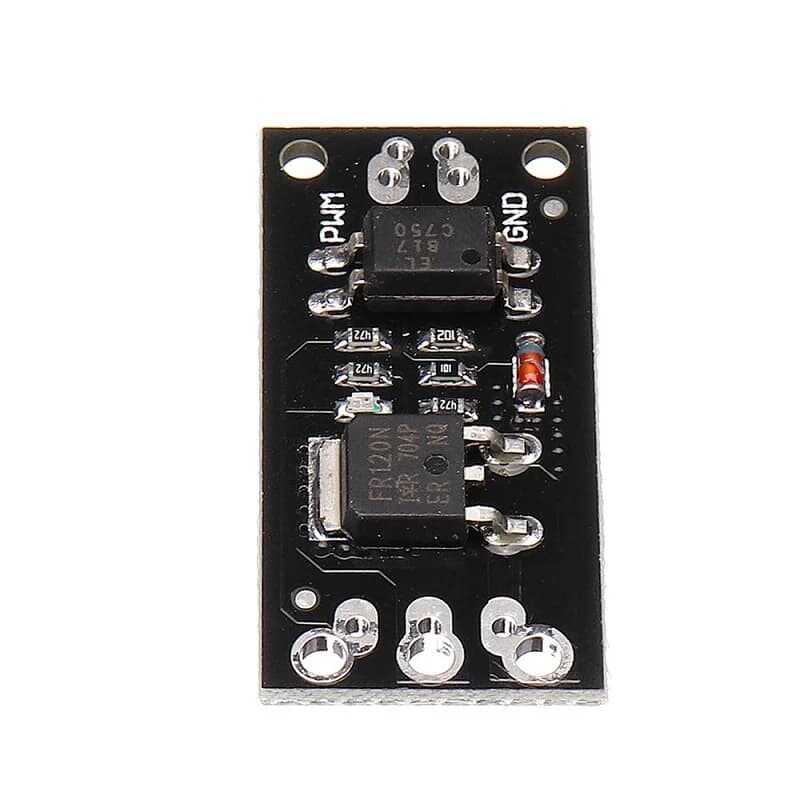

  • FR120N Mosfet Control Module Replacement Relay

    The FR120N Mosfet driver board has been developed for use in high current switching applications. Safe operation is possible with optocoupler isolation. MCU and Arduino control board are compatible with 3V or 5V signals. It can set high level start, low level stop, PWM speed. It is widely used to control the starting and stopping of the motor, solenoid valve and other connected equipment. The signal input side can be welded to the compatible breadboard or the pin itself. The output can be soldered to the terminal or directly to the wire.




    FR120N Mosfet Control Module Replacement Relay Technical Specifications:

    • Number of Channels: 1
    • Vds - Drain-Source Breakdown Voltage: 100V
    • Id - Continuous Discharge Current: 9.4A
    • Rds On - Drain-Source Resistance: 210mOhms
    • Vgs th - Gate-Source Threshold Voltage: 4V
    • Vgs - Gate-Source Voltage: 20V
    • Qg - Gate Charge: 25nC
    • Minimum Operating Temperature: - 55°C
    • Maximum Operating Temperature: +175°C
    • Pd - Power Dissipation: 48W
    • Dimensions: 33.5x16.6x11.5mm
