  • Make your own oscilloscope!

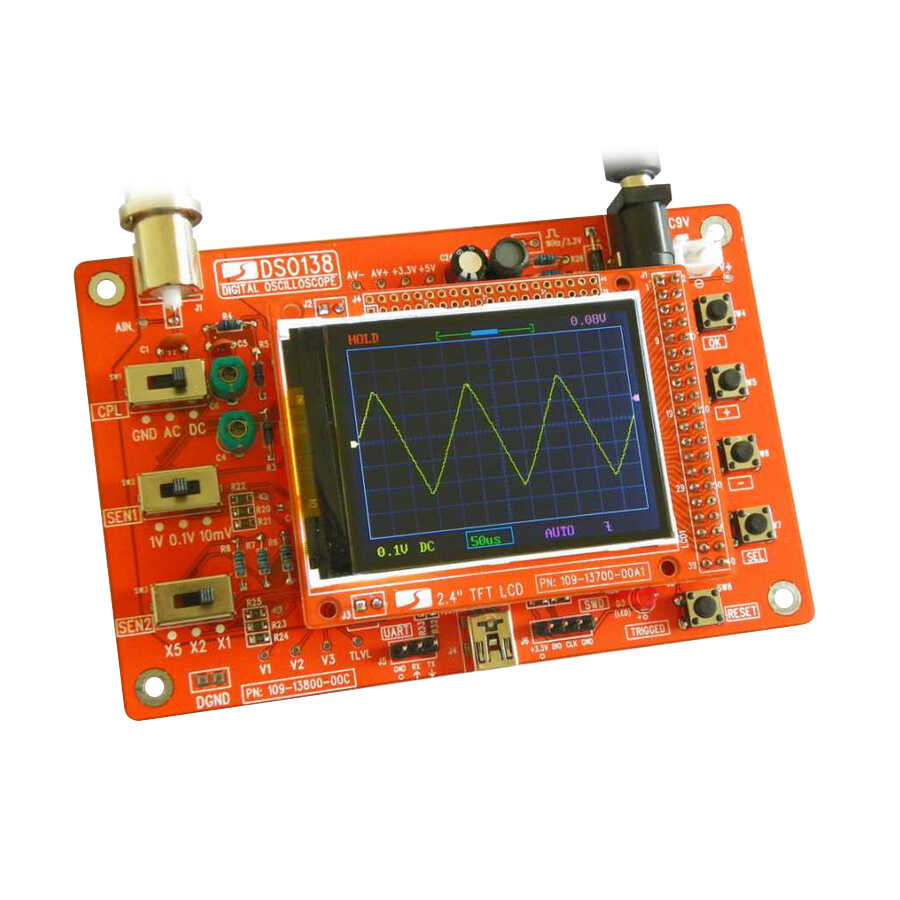

    This DSO138 digital oscilloscope kit adopts ARM Cortex-M3 processor and with 2.4-inch TFT screen. It's easy and reliable for circuit operation. It can display frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.

    DSO138 DIY Oscilloscope Features:
    • This kit uses ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color
    • TFT display screen, can be used as ARM test development board.
    • Can be secondary development on the basis of this kit, for example, it can be changed to Millivoltmeter, data loggers.
    • Adjustable vertical displacement, and with instructions.
    • With automatic, regular and one-shot modes, easy to capture the moment waveform.
    • Available rising or falling edge trigger.
    • Observable previous trigger waveform (negative delay).
    • Can freeze at any time waveform display (HOLD function).
    • Comes 1Hz /3.3V square wave test signal source.
    • With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
    • Waveform storage function: will not lose the waveform after power off.
    • Short-circuit and open-circuit detection: can help the user find out the soldering error.
    • TFT controller recognition function.
    • The SMD has been soldered, more suitable for electronic beginner.

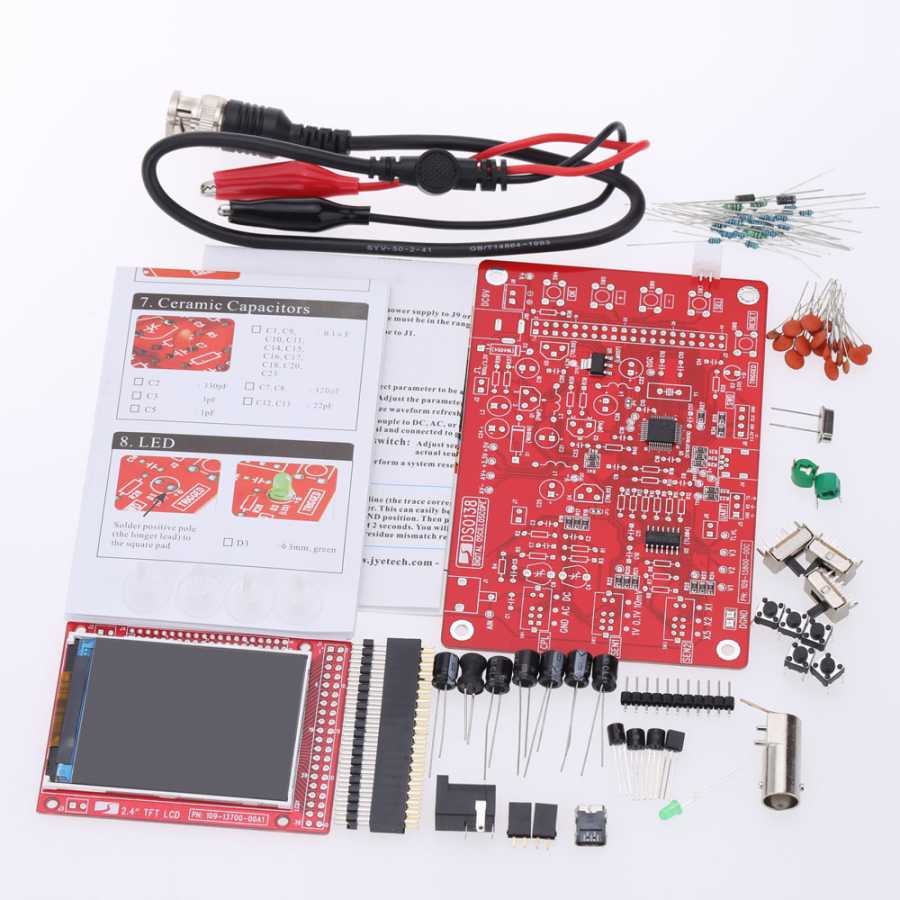

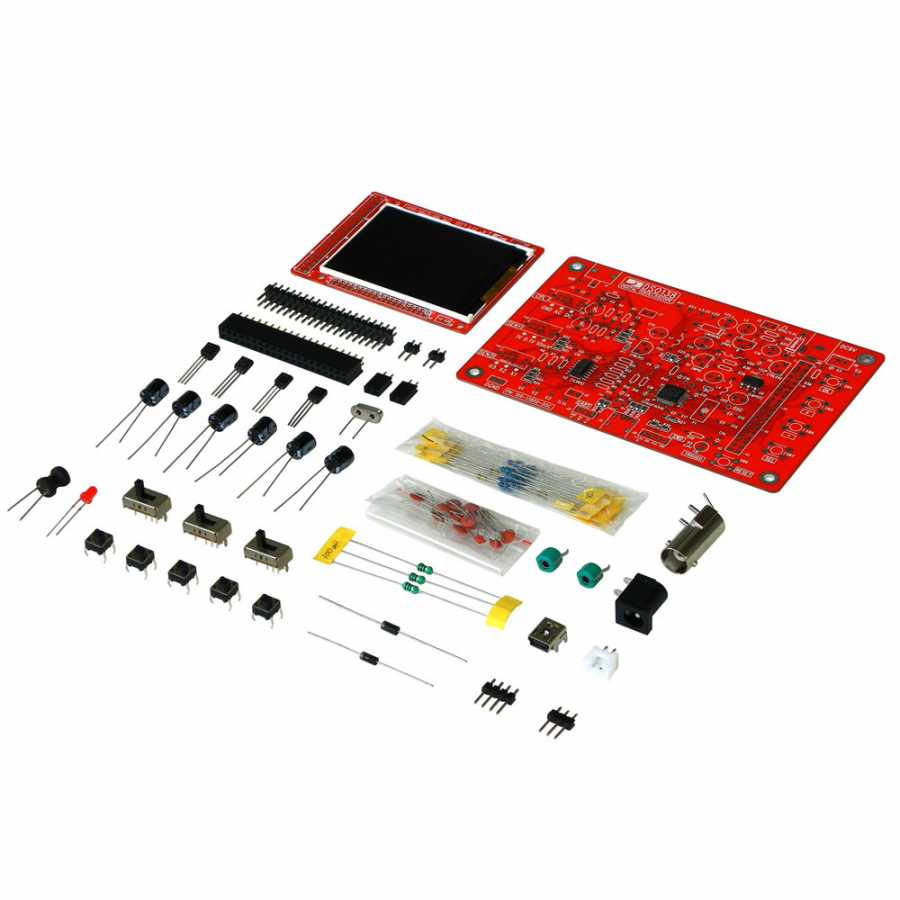

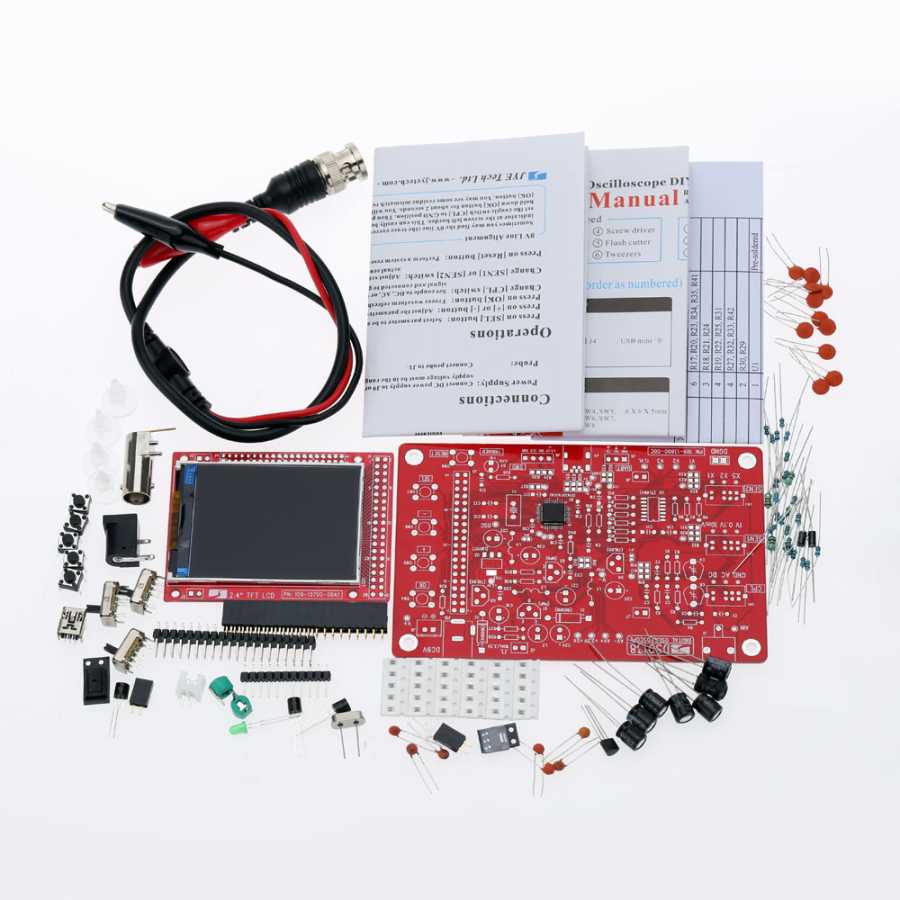

    Package Contents:
    • 1 * DSO138 DIY Digital Oscilloscope Kit

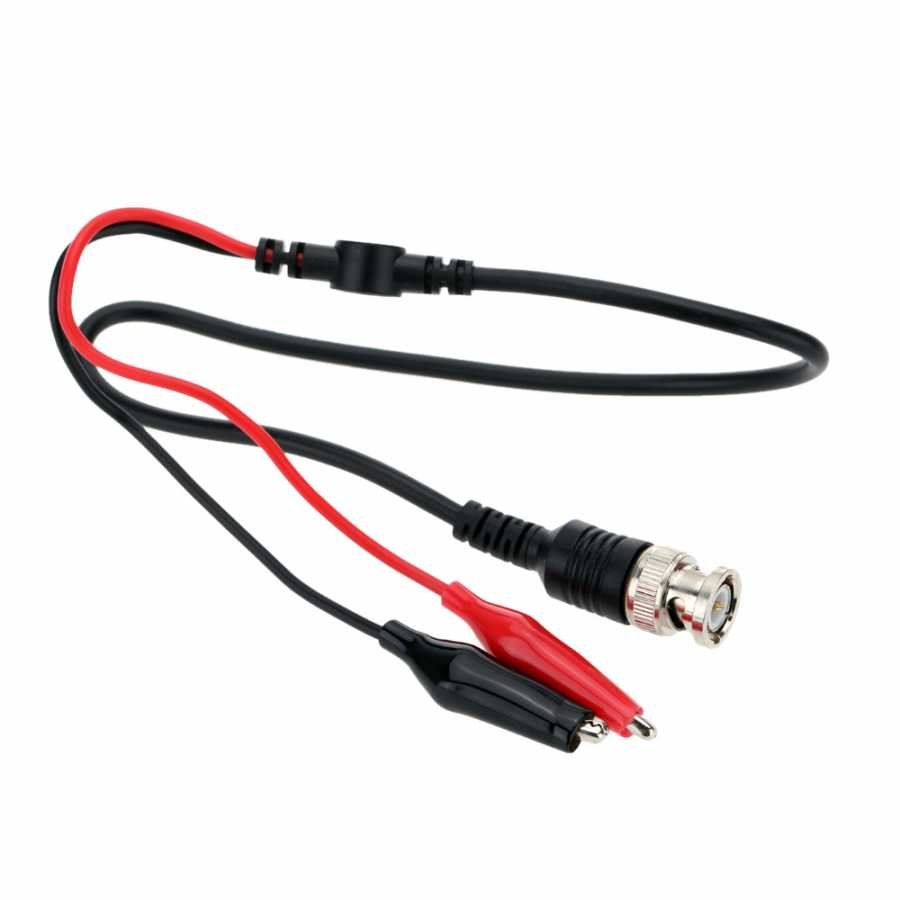

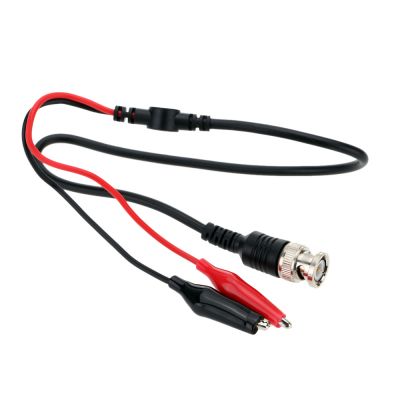

    • 1 * Probe
    • 3 * User Manual(English)



    DSO138 DIY Oscilloscope Kit Tech Specs:
    • Maximum Real-time Sampling Rate: 1Msps
    • Accuracy: 12Bit
    • Sampling Buffer Depth: 1024 bytes
    • Analog Bandwidth: 0-200KHz
    • Vertical Sensitivity: 10mV / Div - 5V / Div (1-2-5 progressive manner)
    • Input Impedance: 1MΩ
    • Maximum Input Voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)
    • Coupling Modes: DC / AC / GND
    • The Horizontal Time Base Range: 10μs / Div - 50s / Div (1-2-5 progressive manner)
    • Supply Voltage: DC 9V
    • PCB Size: 117 * 76mm / 4.6 * 3in
    • Screen Size: 52 * 40mm / 2 * 1.57in
    • Package Size: 18 * 12.5 * 3cm / 7.08 * 4.92 * 1.18in
    • Package Weight: 119g / 4.21oz
