Codlai ArmBot Programmable 4-Axis Robotic Arm

Codlai ArmBot Programmable 4-Axis Robotic Arm

Codlai ArmBot is a modular and upgradeable 4-axis robotic arm platform specially designed for robotics coding projects. With its mechanical structure that mimics the human arm, it can grasp, lift, and precisely place objects at designated positions. It is an ideal solution for STEM education, maker projects, and industrial simulation applications.

When equipped with MiniBot, it can be wirelessly controlled via Wi-Fi; when integrated with IoTBot, it can be managed remotely via computer, smartphone, or tablet. Thanks to the dedicated ArmBot blocks available in the CODLAI Editor, you can easily program your robotic arm without the need for complex mathematical calculations.

Manufactured entirely with 3D-printed (PLA / PETG) parts, its body structure allows users to reproduce and further develop the components themselves. With its open and expandable platform, it can be enhanced with sensors and transformed into advanced automation projects.

Codlai ArmBot Technical Specifications:

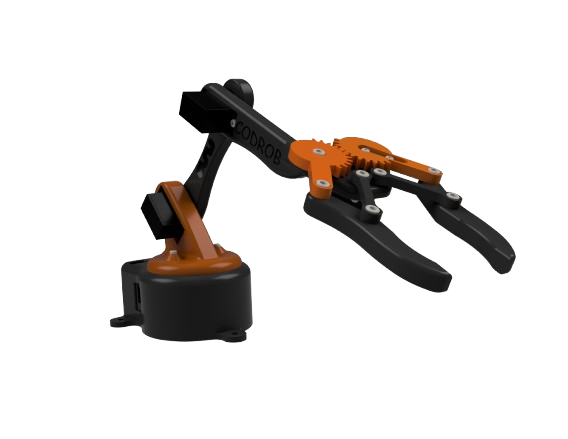

• 4-axis robotic arm structure (rotational axis, shoulder, elbow, and gripper)

• MG90S metal gear servo motors

• Wi-Fi controlled operation (with MiniBot)

• Infrastructure suitable for IoT projects

• Block-based and text-based programming support with CODLAI Editor

• 3D-printed modular body design (PLA / PETG)

• Assembled dimensions: 30 x 25 x 15 cm

• Product weight: approximately 168 grams

• Recommended age group: 7+

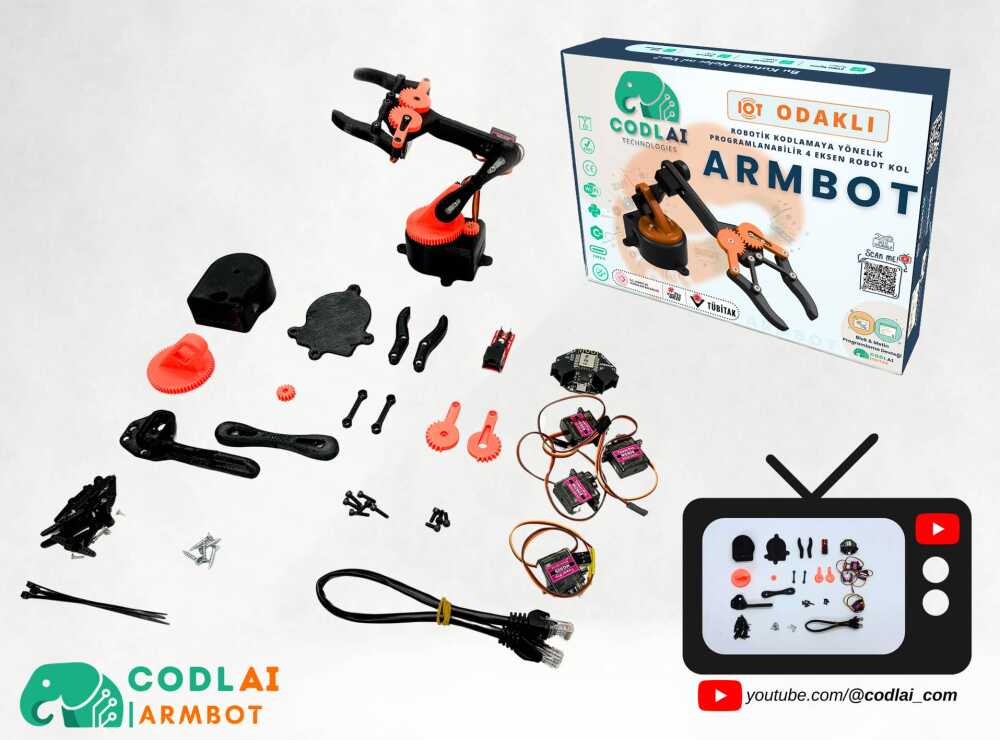

Codlai ArmBot Package Contents:

• 1 x MiniBot (ESP8266 Wi-Fi supported programmable board)

• 1 x ArmBot Control Board

• 4 x MG90S Servo Motors

• 3D-printed body parts (PLA / PETG)

• Screws and mounting hardware set

• 1 x M3 Allen Key & Screwdriver

• 1 x Type-C USB Cable (1 meter)

• 1 x 30 cm RJ45 Connection Cable

• 1 x CODLAI Keychain

Useful Links / Documents:

• CODLAI ArmBot Setup & User Manual
• CODLAI STEM Education Kits Document
