Analog Discovery 2 - Academic

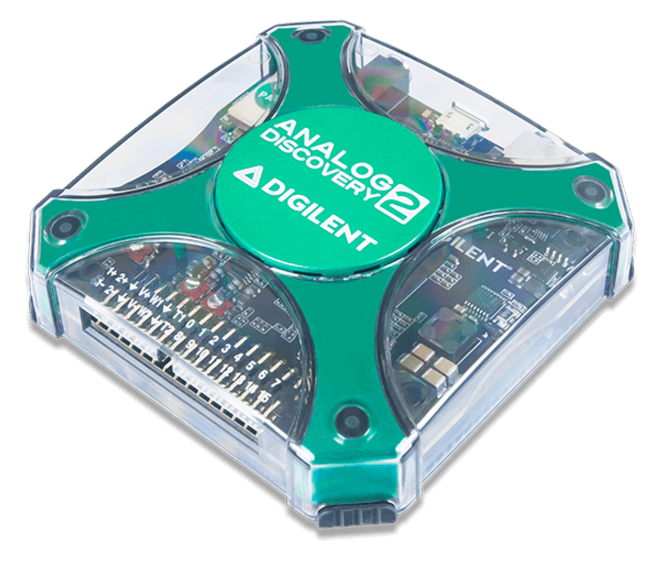

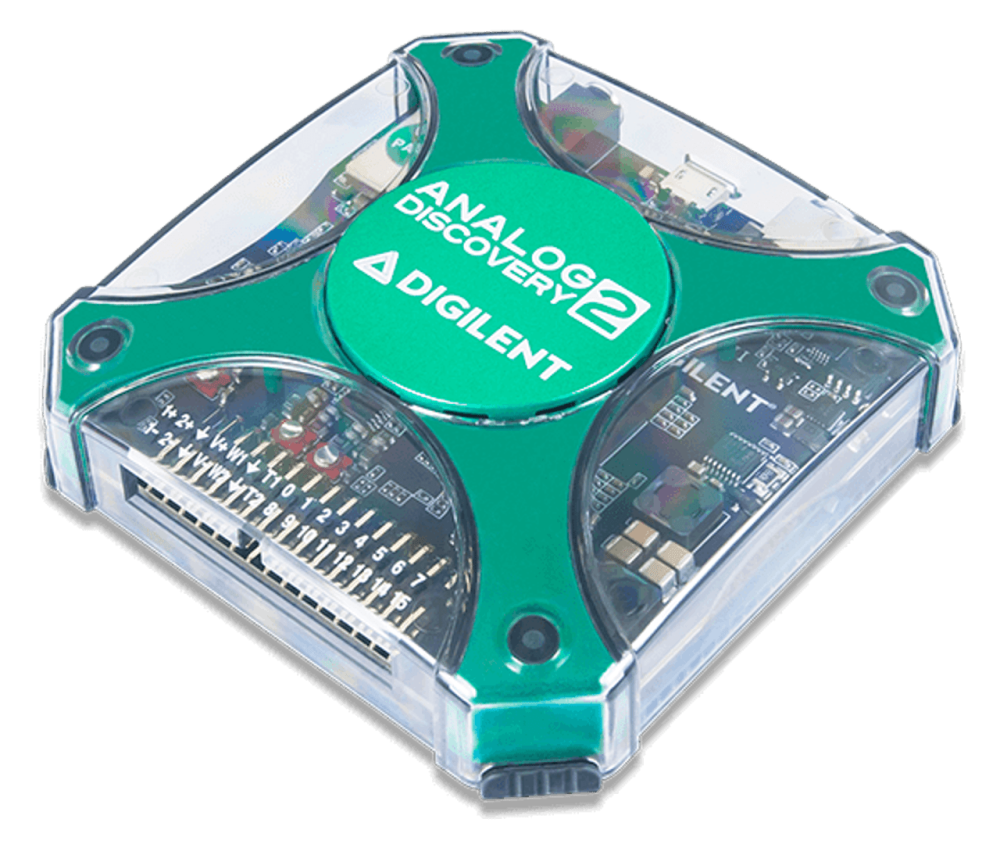

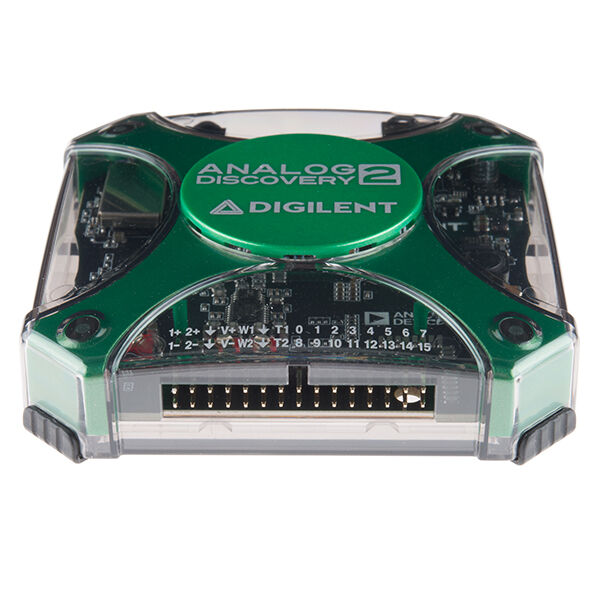

The Digilent Analog Discovery 2 is a USB oscilloscope and multifunction instrument that allows users to measure, visualize, create, record, and control any mixed-signal circuit. Developed in conjunction with Analog Devices and supported by the Xilinx University Program, the Analog Discovery 2 is small enough to fit in your pocket, yet powerful enough to replace a pile of lab equipment, giving engineering students, hobbyists, and electronics enthusiasts the freedom to work with analog and digital circuits in virtually any environment, inside or outside the lab. Analog and digital inputs and outputs can be connected to a circuit using simple wire probes to connect and operate the inputs and outputs. Run by the free WaveForms 2015 software (Compatible with Mac, Linux, and Windows), the Analog Discovery 2 can be configured to operate like any of a variety of traditional instruments.

Analog Discovery 2 - Academic Package includes:

• Analog Discovery 2

• Housing

• USB A to micro B programming cable

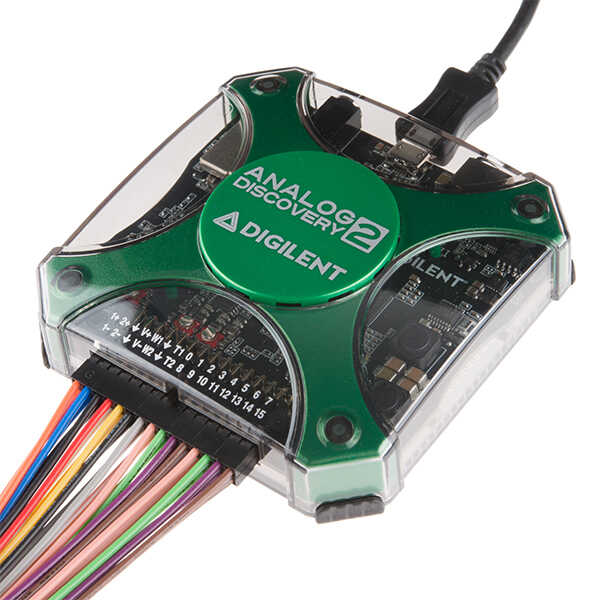

• 2x15 flywire signal cable assembly

• 5-pack 6-pin male header

• Dual channel USB digital oscilloscope (1MΩ, ±25V, differential, 14 bits, 100Msample/sec, 30MHz+ bandwidth - * with Analog Discovery BNC Adapter Card)
• Dual channel arbitrary function generator (±5V, 14 bits, 100Msample/sec, 20MHz+ bandwidth - with
• Analog Discovery BNC Adapter Card)
• Stereo audio amplifier to drive external headphones or speakers with copied AWG signals
• 16 channel digital logic analyzer (3.3V CMOS, 100Msample/sec)
• 16 channel pattern generator (3.3V CMOS, 100Msample/sec)
• 16 channels virtual digital I/O including buttons, switches and LEDs - perfect for logic training applications
• Dual input/output digital trigger signals (3.3V CMOS) to connect multiple instruments
• Single channel voltmeter (AC, DC, ±25V)
• Network analyzer – Bode, Nyquist, Nichols transfer diagrams of a circuit. Range: 1Hz to 10MHz
• Spectrum Analyzer – Power spectrum and spectral measurements (noise floor, SFDR, SNR, THD, etc.)
• Digital Bus Analyzers (SPI, I²C, UART, Parallel)
• Two programmable power supplies (0…+5V, 0…-5V). Maximum usable output current and power

• Datasheet
• Waveforms 2015
• Real Analog Educational Materials
• Digilent Resource Center
