7inch Resistive Touch Industry HMI Screen

Brand
AirHMI
Product Code
22284
Fiyat
: 2,071.30 TL + VAT
KDV Dahil Fiyat
: 3,146.28 TL
İndirimli Fiyat
: 2,485.56 TL

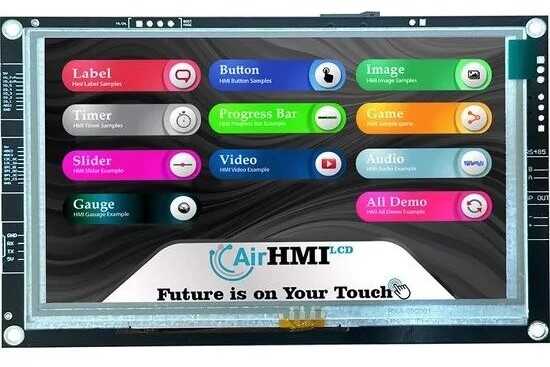

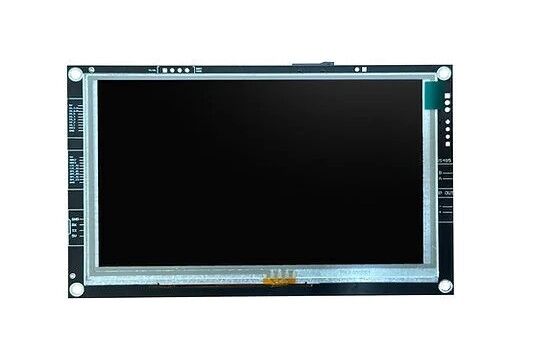

7inch Resistive Touch Industry HMI Screen


AIRHMI TFT screens; They are specially manageable immersive TFT screens that can create easy GUI with drop unit and C management programming language.Thanks to its user-friendly interface, you can easily create your designs. AIRHMI helps in this regard with many objects such as button, label, image, progress bar, slider, gauge. Thanks to its editor and simple usage structure, you can prepare your design quickly by saving your expenses in your developments. In addition, you can easily manage your projects with the UART, GPIO, ADC, PWM, I2C and SPI pins you will need. Communication with the control card is transmitted via TTL (UART) statement. (Supports RS-485 communication. Optional).
The built-in Buzzer can be played simply. You can use it with buzzer function book every time you touch the touch or alerts. You can enrich your projects visually and audibly with video and audio playback features in the industry series. With AIRHMI screens, the limits of your projects will be beyond imagination.

Difference from other AIRHMIs



There are three different series of AIRHMI TFT displays. It meets your needs with Elementary, Advanced and Industry options, respectively. The Industry series is the most powerful version in terms of hardware. It stands out with its 32MB memory, 5xGPIO, 2x PWM or GPIO, 2x5V output, 3x ADC, 1xI2C, 1xSPI, Internal Buzzer, Video and Audio playback features. With its large Flash capacity, it provides more space for your projects. It provides communication with different protocols thanks to GPIO, PWM, ADC, I2C, SPI support. AIRHMI is the perfect display for control and monitoring between man and machine.



7inch Resistive Touch Industry HMI Screen Technical Specification:

  • 800x480 resolution
  • 65K colors
  • 32MB RAM
  • 32MB Flash Memory
  • 5V Supply
  • TTL (UART) Serial Communication
  • 5x GPIO
  • 2x PWM or GPIO
  • 3x ADC
  • 1x I2C
  • 1x SPI
  • 2x 5V Output
  • Internal RTC
  • RS485(Optional)
  • Dahili Buzzer
  • Built-in Buzzer
  • SD Card Support

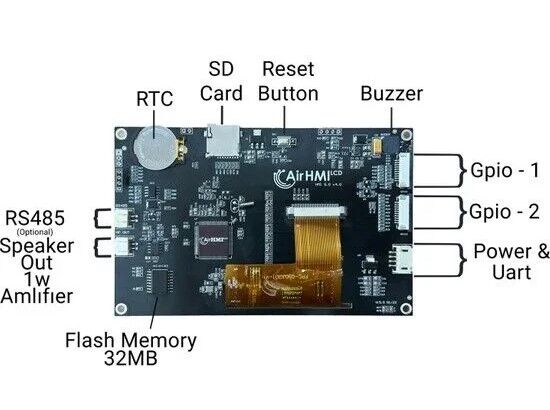

7inch Resistive Touch Industry HMI Pin Diagram:

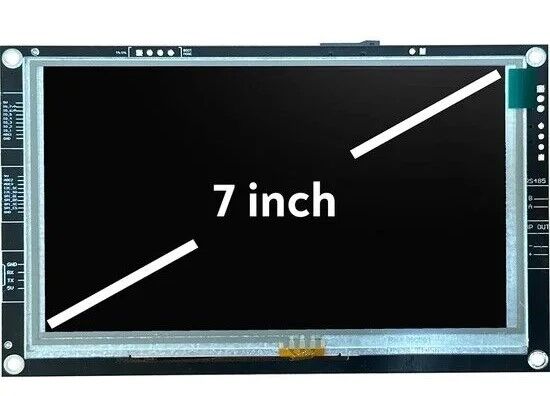

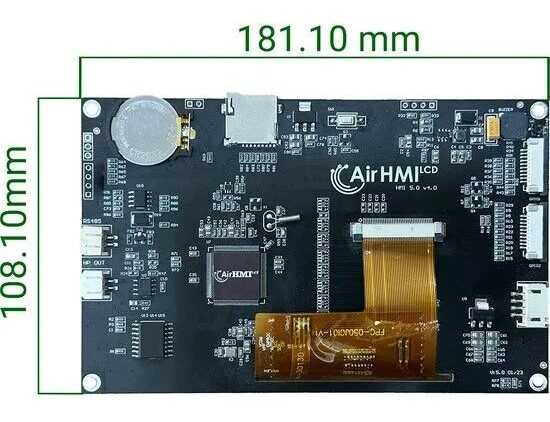

Size 7inch Resistive Touch Industry HMI:
