74HC595 IC

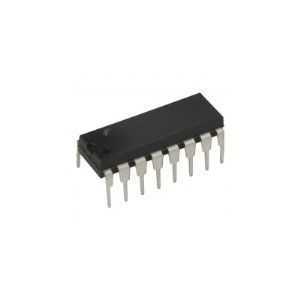

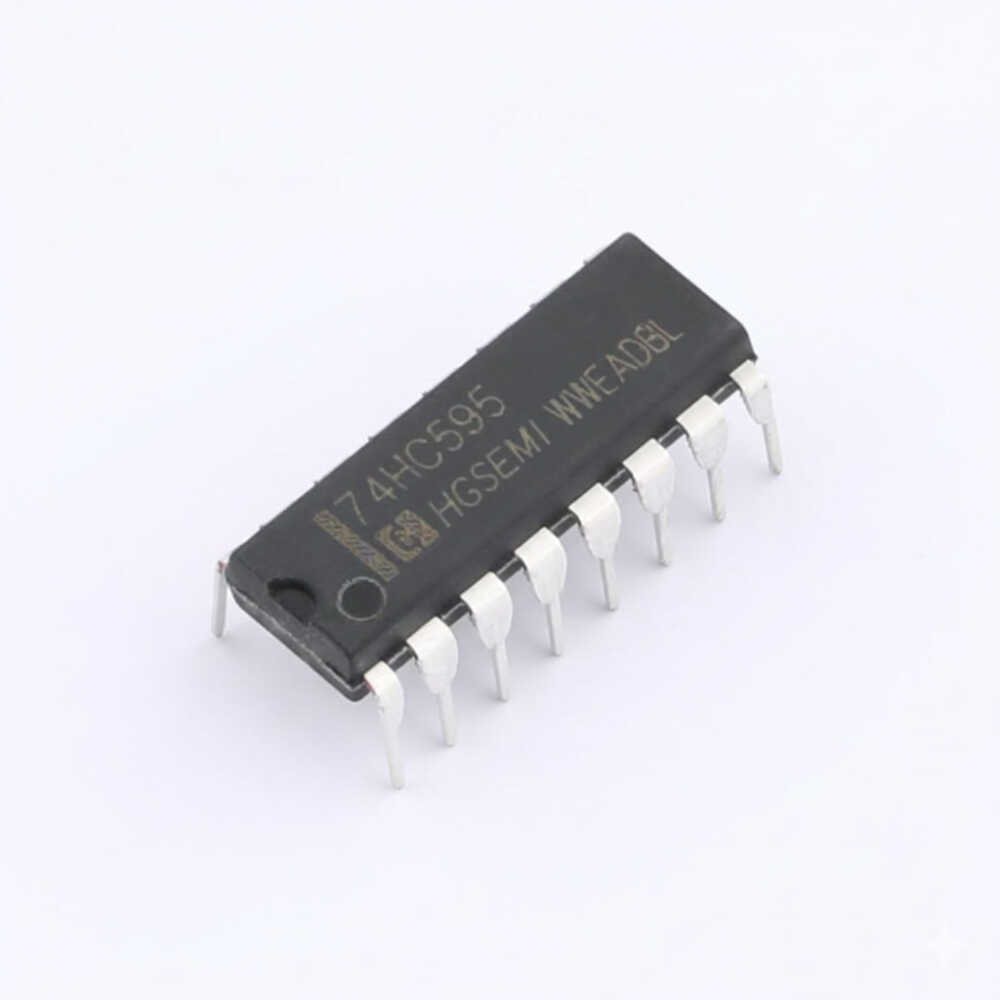

74HC595N IC DIP-16

The 74HC595N is an 8-bit serial-in, parallel-out shift register IC. It is an ideal solution for expanding the number of digital output pins when working with microcontrollers. The IC converts serial data input into parallel outputs, making it suitable for driving LED displays, 7-segment displays, or relay driver circuits. Built using high-speed CMOS technology, the 74HC595 offers low power consumption and TTL-compatible input/output levels.

74HC595N IC DIP-16 Specifications:

• Configuration: 8-bit serial-in, parallel-out shift register

• Includes an additional 8-bit storage (latch) register

• Operating voltage: 2V – 6V

• Maximum output current: ±6 mA (V_CC=5V)

• Data input frequency: up to 100 MHz

• Operating temperature range: -40°C to +85°C

• Package type: DIP-16 (Dual Inline Package)

• Applications: LED matrix drivers, 7-segment displays, relay boards, and microcontroller interfaces

Useful Documents:

• 74HC595N Datasheet

Similar Products:

• 74HC Series ICs
