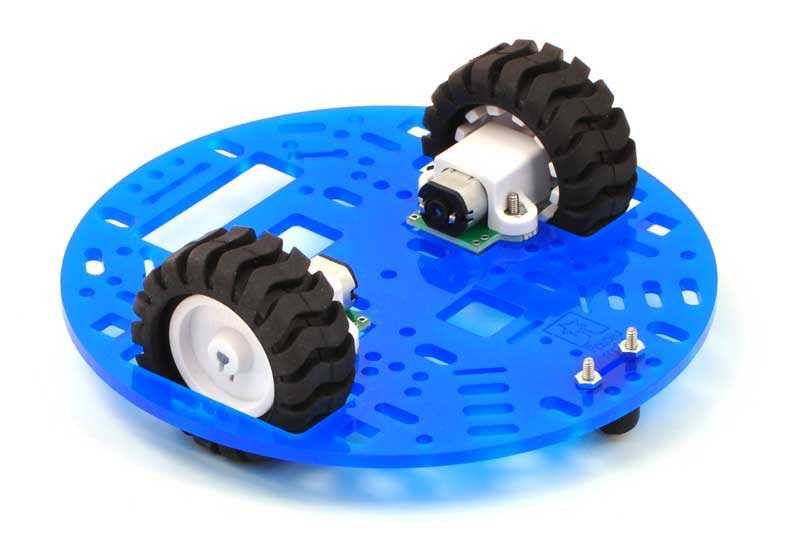

This high perfomanced micro DC gearmotor has 1000 RPM speed at DC 6V. Motor has carbon brushes, so motor has high performance and long life. This motor can be used at various projects like mini sumo, obstacle avoiding and line follower robots.

Technical Features:
  • Operation Voltage: 6V DC
  • Speed (no load): 1000 RPM
  • Reduction rate: 30:1
  • No load current: 120 mA
  • Stalll current: 1.6A
  • Stall torque: 0.6 kg-cm
  • Motor dimensions: 10 mm x 12 mm x 26 mm (YxGxU)
  • Shaft type: 9mm length 3mm D type shaft
  • Weight: 9.5 gr

-

Features
Speed (RPM)
501-1000 Rpm, 1001-6000 Rpm
Encoder
w/o Encoder
Shaft Diameter
3mm
Gearbox Type
Metal Gearbox
Voltage
6V
14804

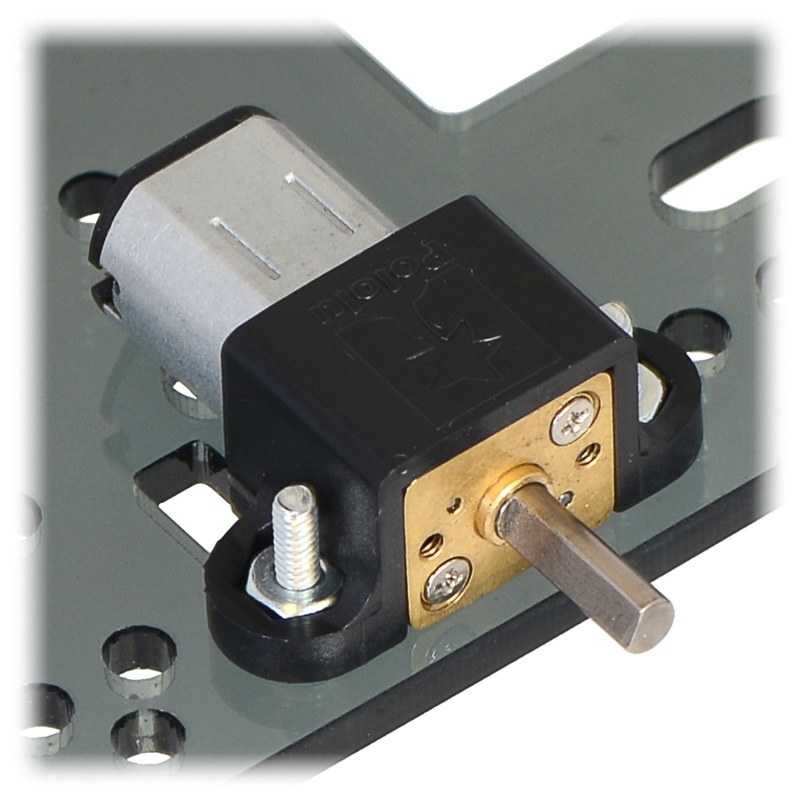

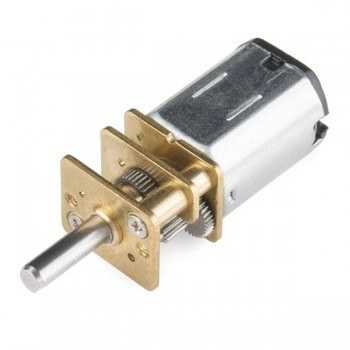

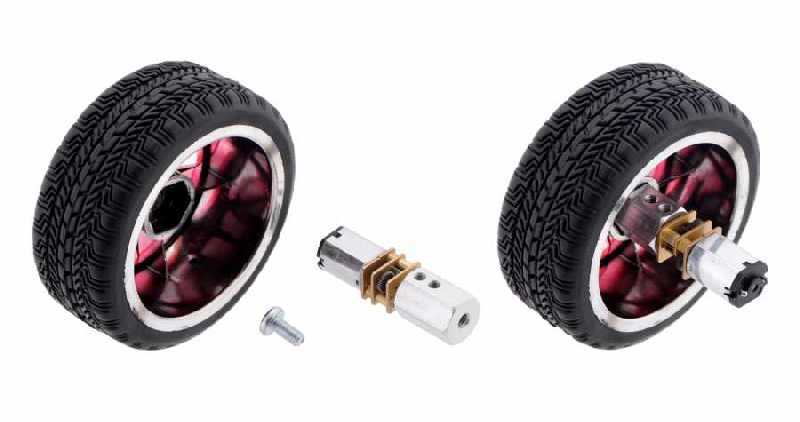

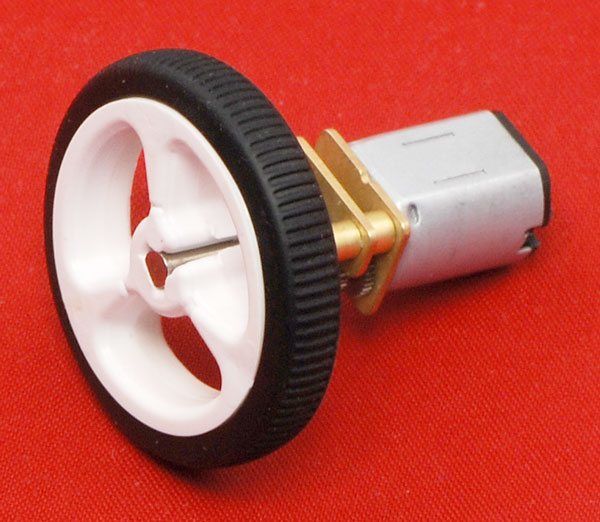

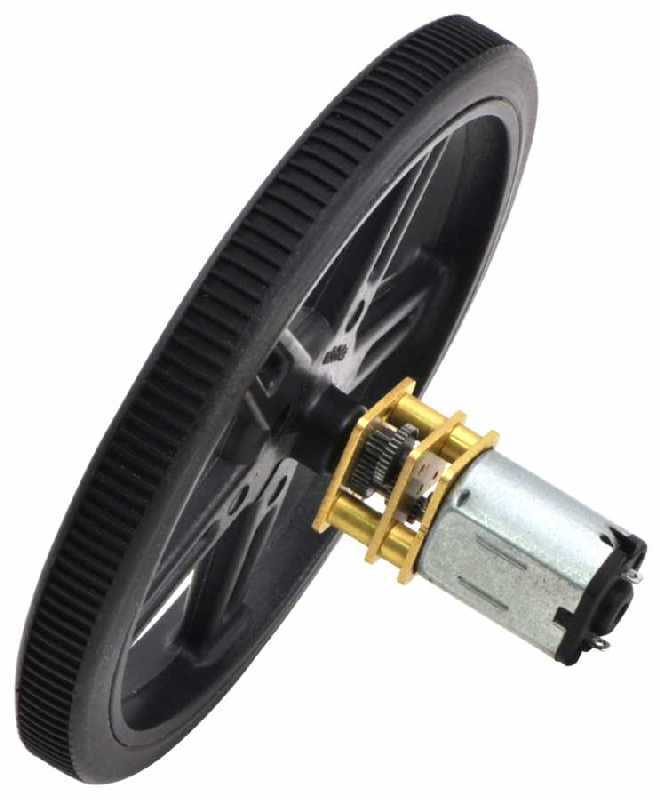

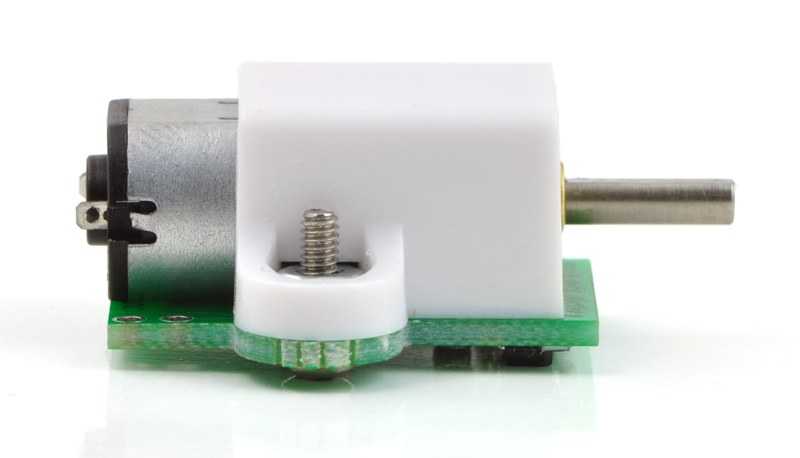

6V 1000 RPM Carbon Brushed Micro DC Gearmotor
6V 1000 RPM Carbon Brushed Micro DC Gearmotor
:
777.24 TL + VAT
:
932.69 TL
