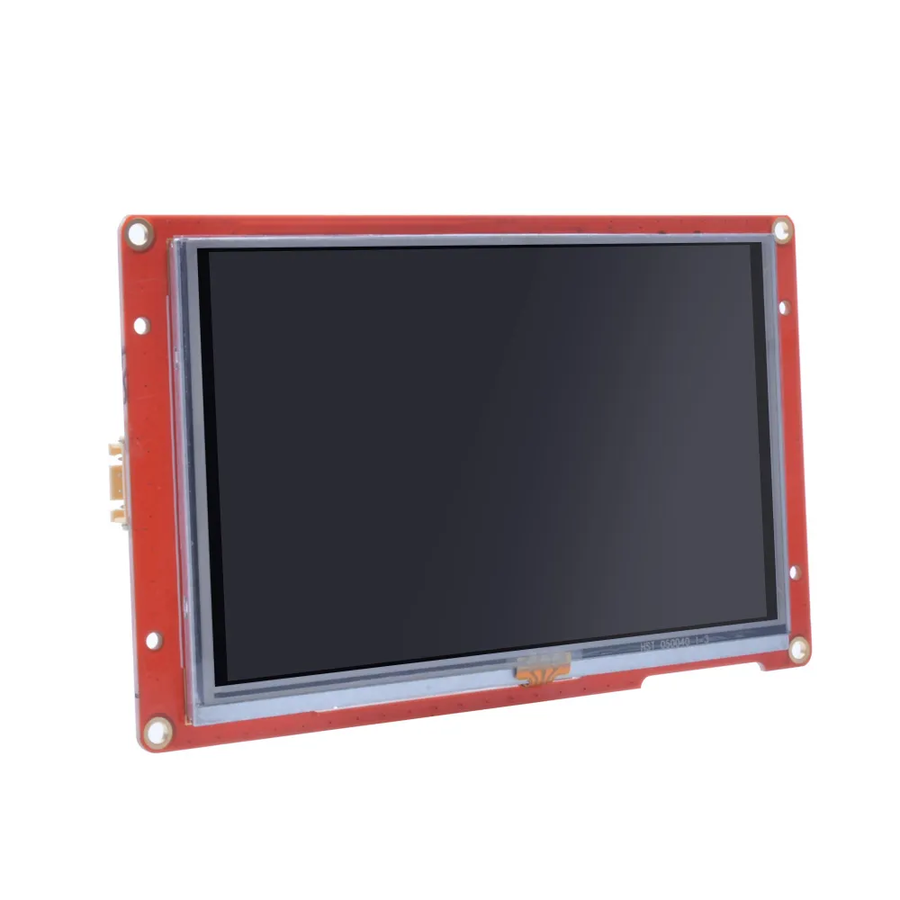

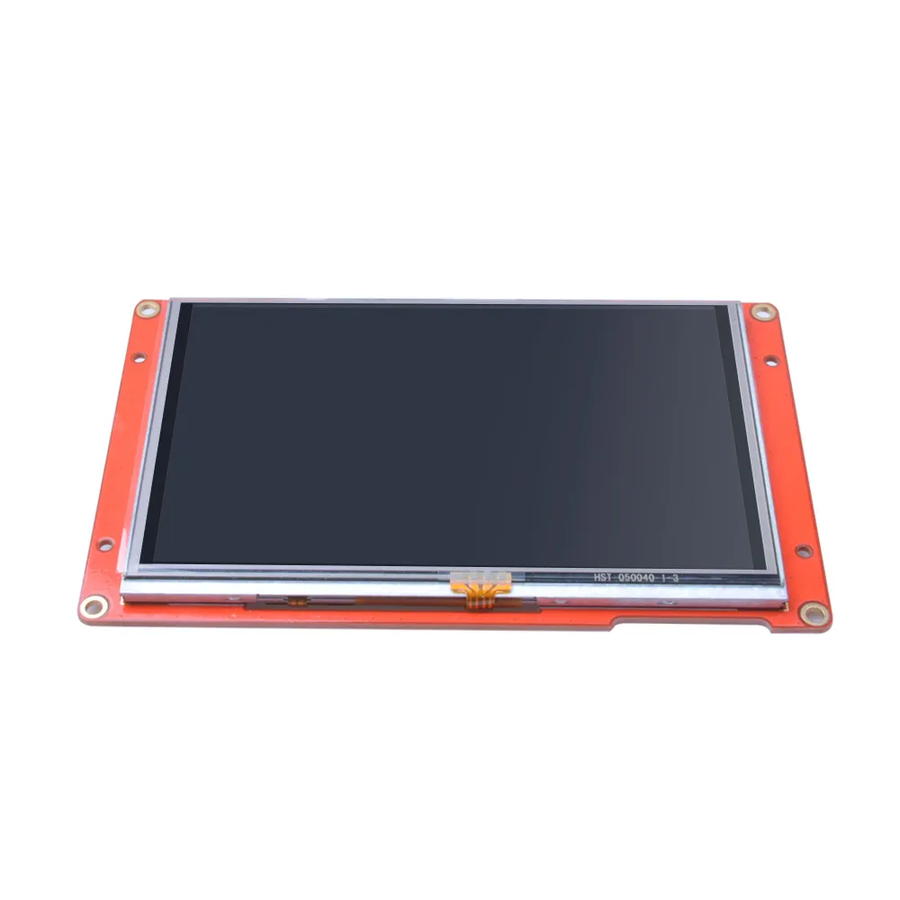

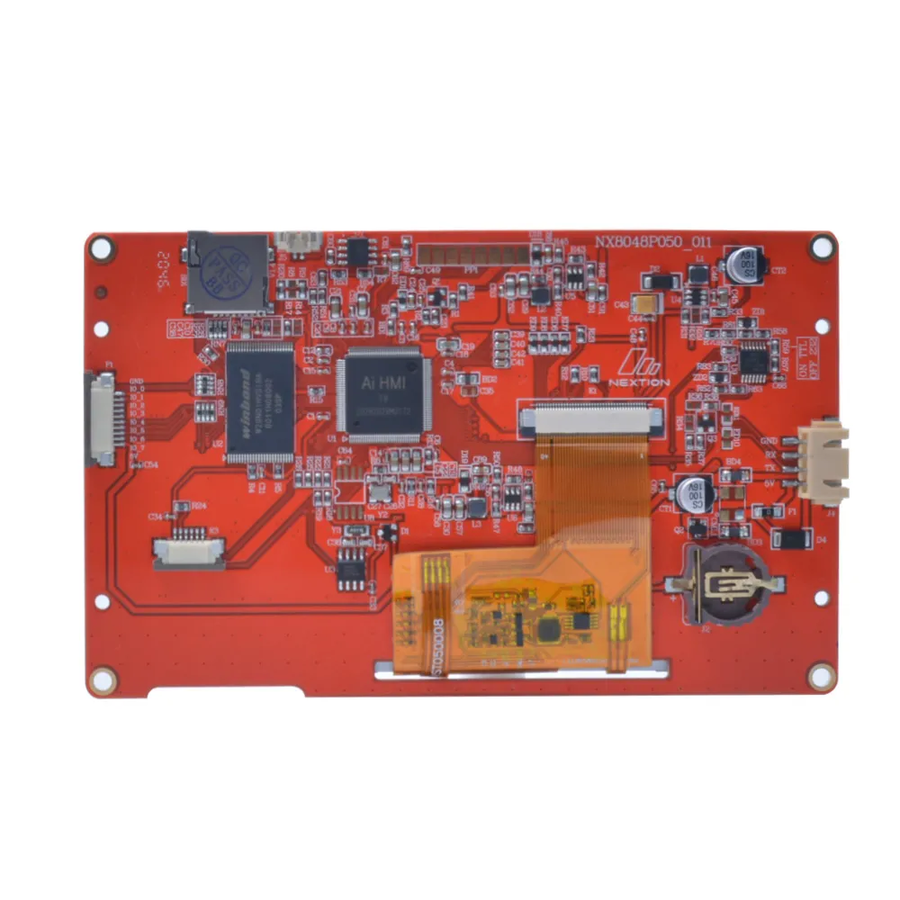

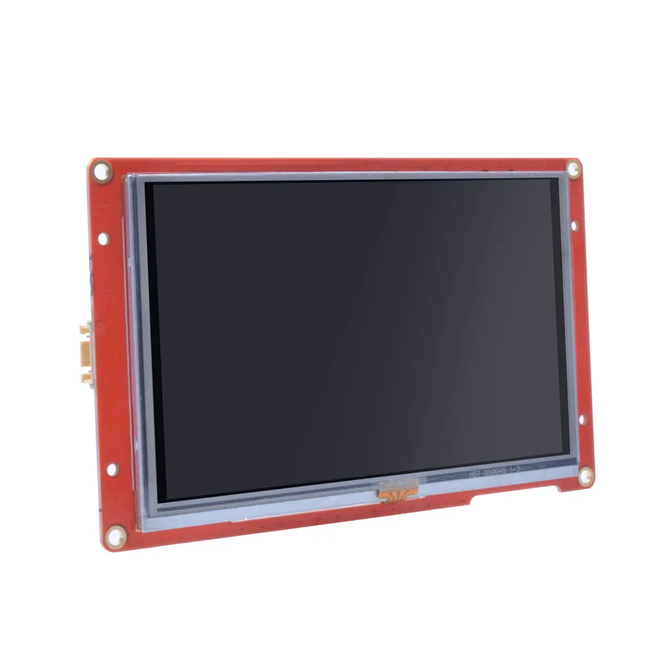

NX8048P050-011C – Nextion 5.0 inch Nextion Intelligent Serial Capacitive HMI Touch Screen

Nextion is a Human Machine Interface (HMI) solution that combines the onboard processor and touch memory display with Nextion Editor software for HMI GUI project development. Using the NEXTION Editor software, it offers the possibility to quickly develop the HMI GUI with ASCII text-based instructions for dragging and dropping components (graphics, text, buttons, sliders, etc.) and coding how components interact on the screen side. The Nextion HMI display is connected to the peripheral MCU via TTL Serial (5V, TX, RX, GND) to provide event notifications that the peripheral MCU can handle, the peripheral MCU can easily update the progress and status to the Nextion display using simple ASCII text-based instructions. Intelligent Series products have more powerful hardware in terms of MCU, Flash storage and SRAM compared to Basic Series and Enhanced Series. More and new audio, video and animation playback functions enrich the user's interaction with the project HMI. Intelligent Series, transparent components, page load effect, component Move and Drag etc. It supports advanced software features and functions such as

NX8048P050-011C - Nextion 5.0 inch Intelligent Specifications:
MCU: 200MHz
RAM: 512KB
Flash: 128MB
EEPROM: 1024 Bytes
Resolution: 800×480 Pixels (It can also be set to 480×800.)
Input Voltage: Min: 4.65, Max: 6.5V, Normal: 5.0V
Input Current: Normal Mode: 220mA, Deep Sleep Mode: 170A
Serial Port Baud Rate: 9600bps
Serial Port Mode: TTL
Serial Port: 4Pin_2.54mm
Extended IO: 8 Digital extended GPIO, IO0-IO7 support input, output and component binding event, IO6-IO7 support PWM pin.
SD Card Socket: Yes (FAT32 format), support maximum 32G Micro SD Card.
Touch Type: Resistive
Touch Resistance: >1 Million
Backlight: LED
Backlight Life (Average): >30,000 Hours
Brightness : 300nit
Weight: 130g
