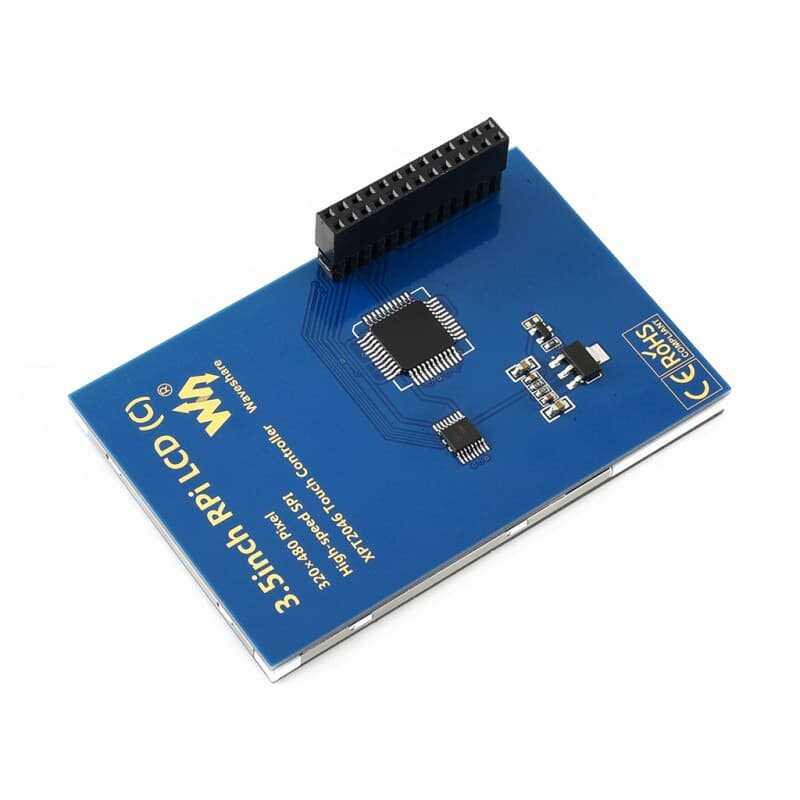

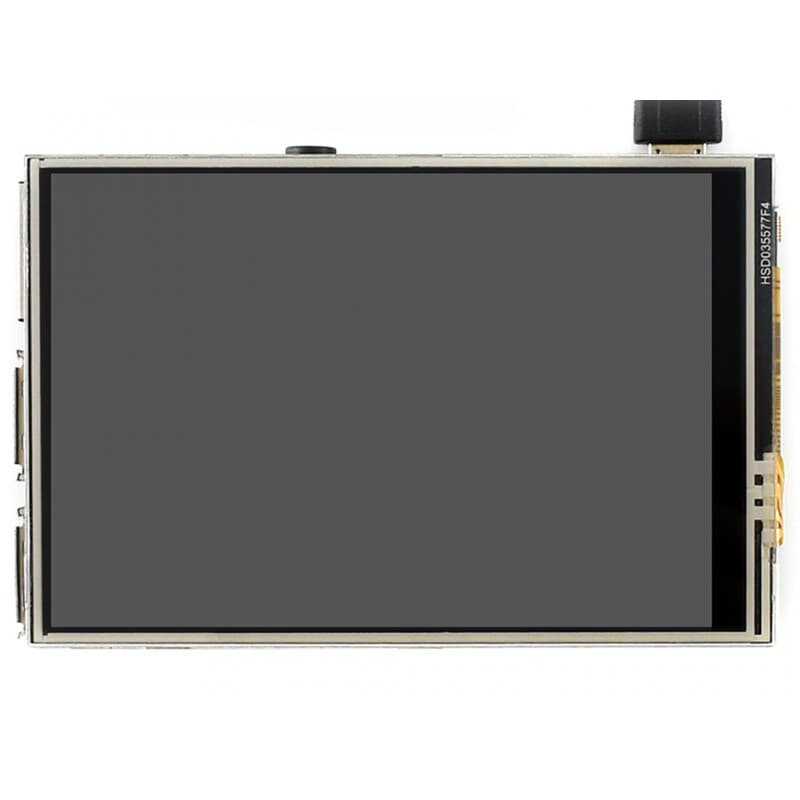

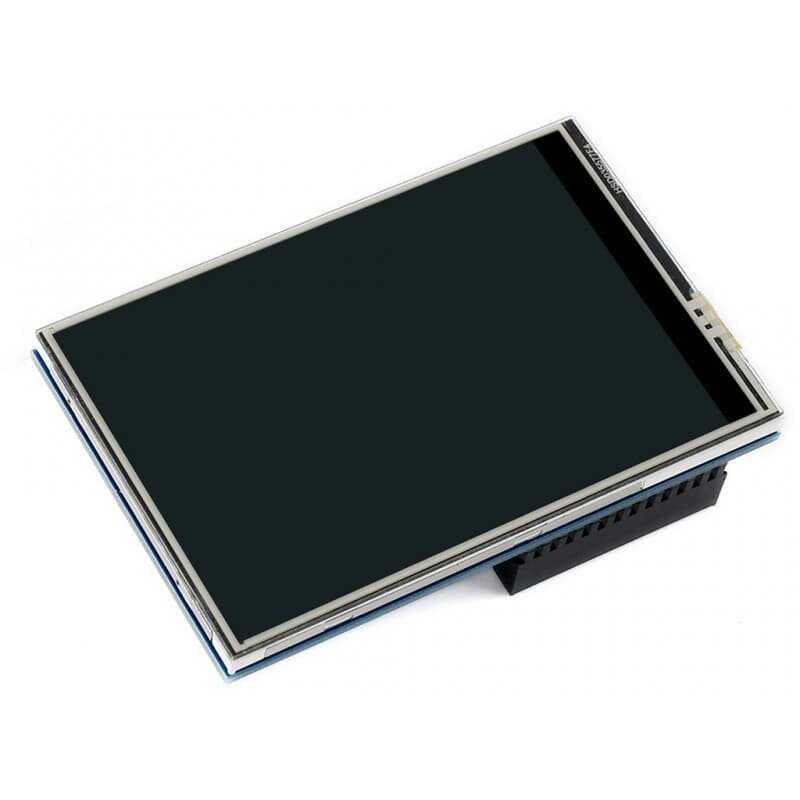

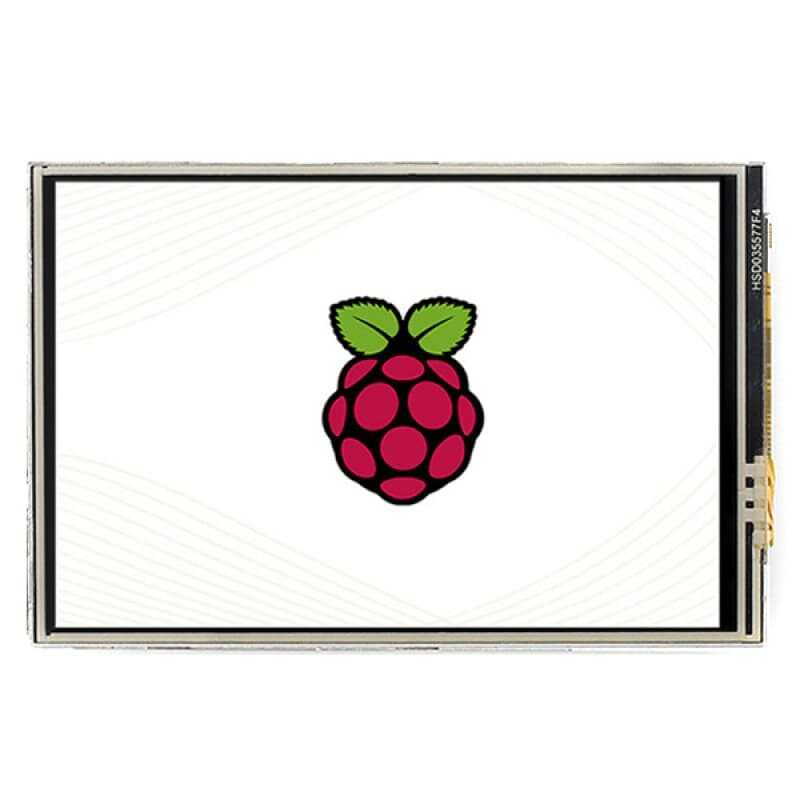

WaveShare 3.5 inch Resistive Touch High Speed LCD - 480x320 (C)

Product Code
:
18298
Brand / Origin
:
WaveShare
:
Comments (0)
Quantity
:
9
Without Vat
:
459.42 TL
Quantity:

-

+
Same Day Shipping
Orders placed until 5:00 on weekdays and 10:30 on Saturday are shipped the same day.
Add to Favorites
Click here to add this product to your list and review it later.
Technical Service
We are always with you with our experienced staff and advanced support services.
Refund Guarantee
We carry out the process without upsetting you with a 14-day return guarantee.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box

  • 480x320, 3.5 inch Touch Screen TFT LCD Designed for Raspberry Pi, 125MHz High-Speed SPI.

    Features:

    • 480x320 hardware resolution
    • Resistive touch control
    • Supports any revision of Raspberry Pi (directly-pluggable)
    • 125MHz High-Speed SPI signal transmission, clear & stable display effect
    • Drivers provided (works with your own Raspbian/Ubuntu/Kali/Retropie)
    • Supports FBCP software driver as well, allows to config software resolution and set up dual-display
    • Size perfectly fits the Pi (Raspberry Pi B+/2B/3B/3B+)
    • High quality immersion gold surface plating
    • Combined with the Raspberry Pi (refresh rate up to 50Hz), allows you to:

    -Watch videos (multi formats like MP4)
    -Play video games (RetroPie, take a bite)
    -Take photos by touching (up to 17 camera modes)
    -Use software keyboard (system interaction without keyboard/mouse)

    Technical Specs:

    • LCD type: TFT
    • LCD interface: SPI
    • Touch screen type: Rezistif.
    • Touch screen controller: XPT2046
    • Colours : 65536
    • Backlight: LED
    • Resolution: 480x320 piksel
    • Aspect ratio: 8:5
    • Complies with RoHS Standards.

    Interface:

    Pin No.

    Symbol

    Description

    1, 17

    3.3V

    Power positive (3.3V power input)

    2, 4

    5V

    Power positive (5V power input)

    3, 5, 7, 8, 10, 12, 13, 15, 16

    NC

    NC

    6, 9, 14, 20, 25

    GND

    Ground

    11

    TP_IRQ

    Touch Panel interrupt, low level while the Touch Panel detects touching

    18

    LCD_RS

    Instruction/Data Register selection

    19

    LCD_SI / TP_SI

    SPI data input of LCD/Touch Panel

    21

    TP_SO

    SPI data output of Touch Panel

    22

    RST

    Reset

    23

    LCD_SCK / TP_SCK

    SPI clock of LCD/Touch Panel

    24

    LCD_CS

    LCD chip selection, low active

    26

    TP_CS

    Touch Panel chip selection, low active


    Dimensions:

    Documents and Useful Links:

        Features
        Size
        :
        3.5 - 5.0 inches
