WaveShare 1.3 inch OLED Display HAT for Raspberry Pi - 128x64

Product Code
:
18317
Brand / Origin
:
WaveShare
Quantity
:
4
Without Vat
:
69.39 TL
Quantity:

-

+

Same Day Shipping
If you purchase before 3pm, your products will ship at the same day. Except saturday and sunday
Add to Favorites
You can add this product on your list and check it later.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box

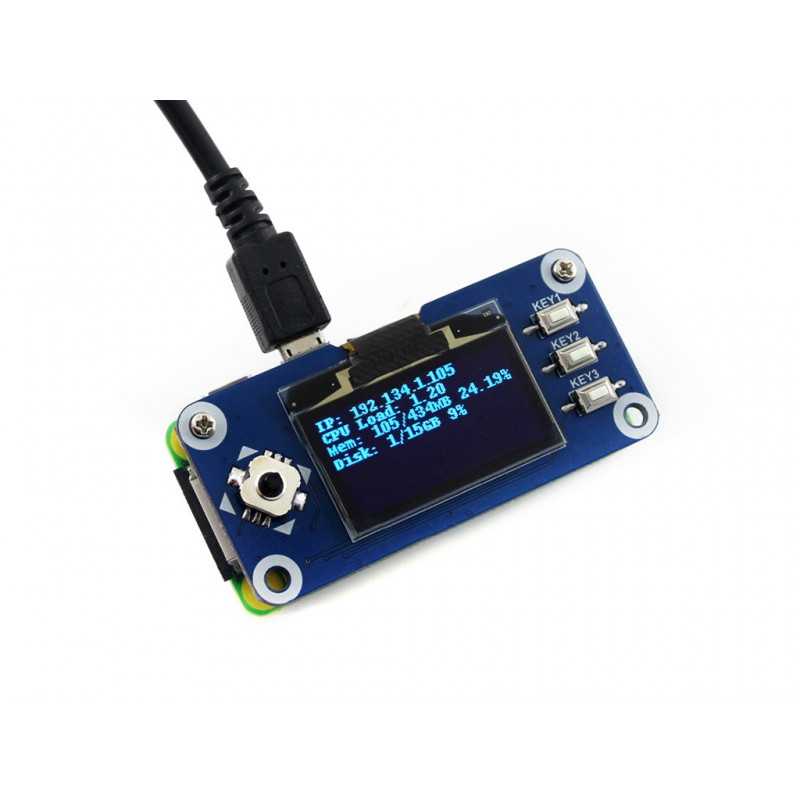

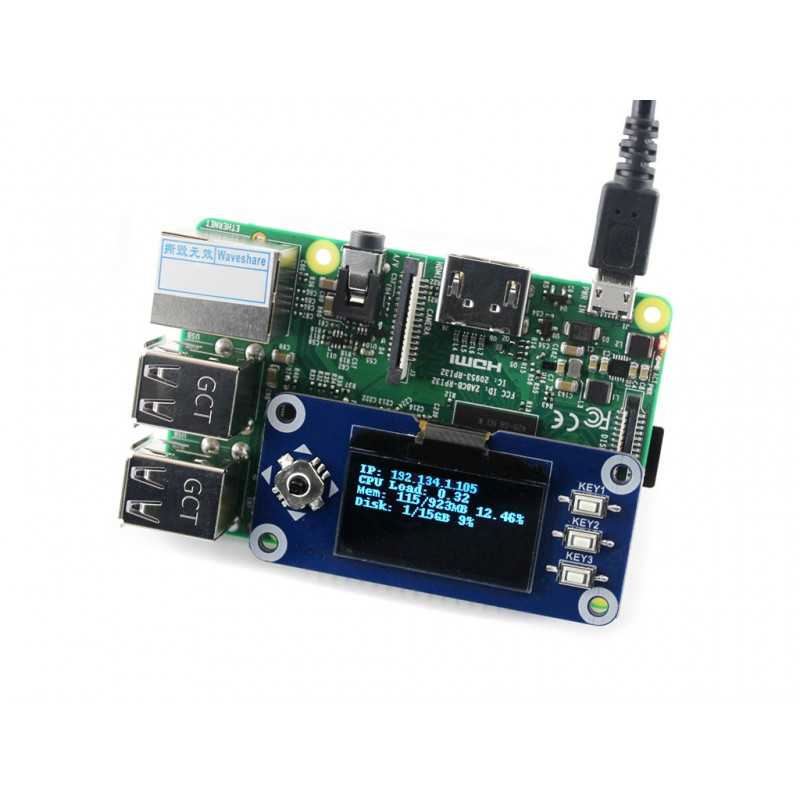

  • This is an OLED display HAT for Raspberry Pi, 1.3inch diagonal, 128x64 pixels, with embedded controller, communicating via SPI or I2C interface. Trying to add a control interface for your Pi? This compact display would be the ideal choice.

    Features:

    • Compatible with Raspberry Pi 2B/3B/3B+/Zero/Zero W/Zero WH, Jetson Nano

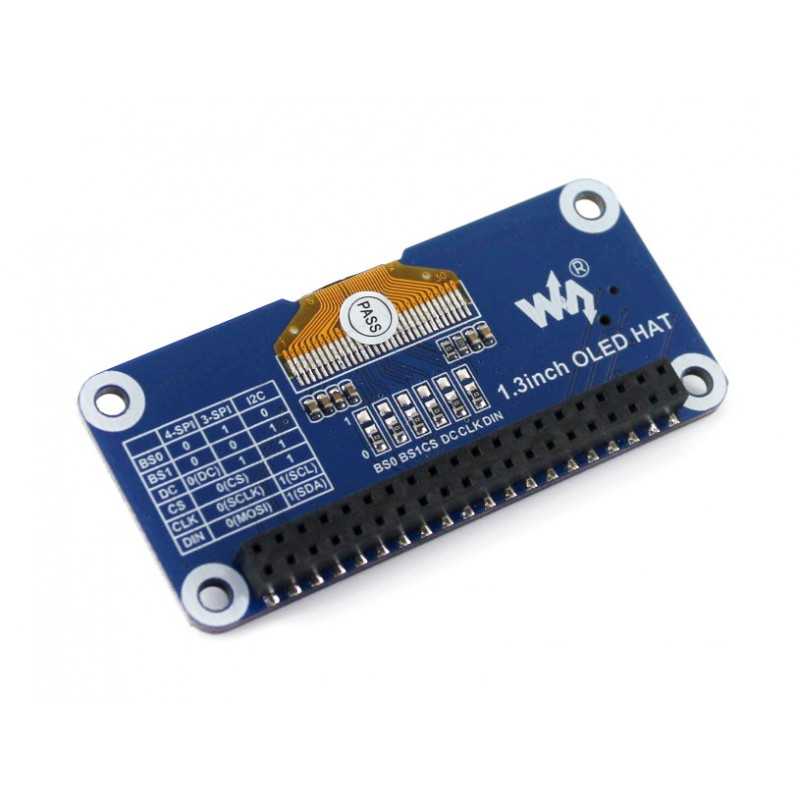

    • Optional interfaces: 4-wire SPI, 3-wire SPI, I2C, configured via onboard resistor

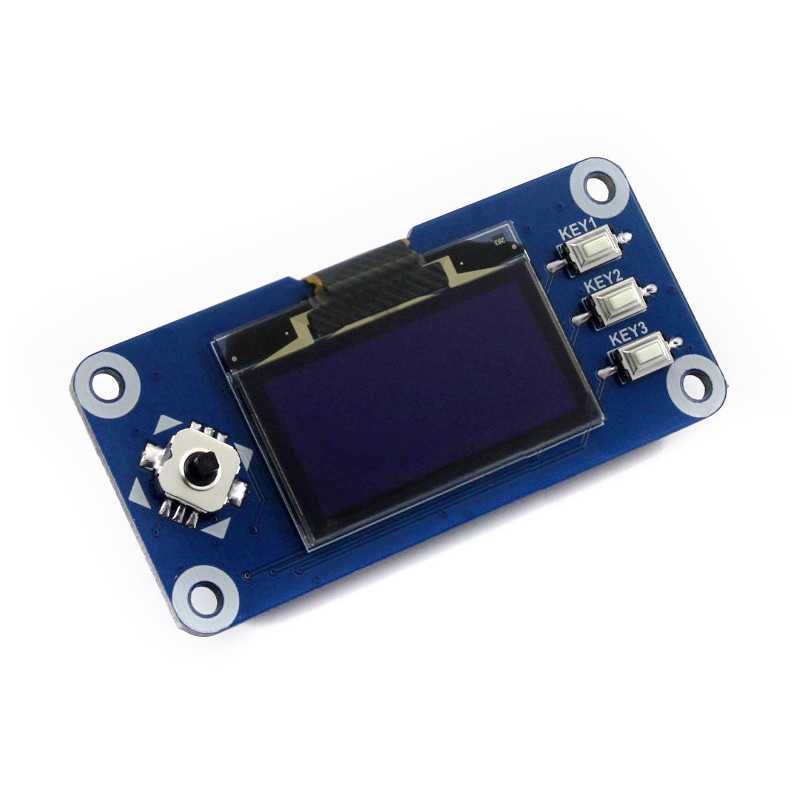

    • 1x joystick (5-position), 3x pushbuttons, handy and useful
    • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

    Package Contents:

    • 3inch OLED HAT x1
    • RPi screws pack (2pcs)

    Technical Specs:

    • Driver: SH1106
    • Interface: 4-wire SPI, 3-wire SPI, I2C
    • Display color: blue
    • Resolution: 128x64
    • Operating voltage: 3.3V

    Interface:

    Symbol

    Raspberry Pi Pin (BCM)

    Function/Description

    KEY1

    P21

    Button 1/GPIO

    KEY2

    P20

    Button 2/GPIO

    KEY3

    P16

    Button 3/GPIO

    Joystick Up

    P6

    Joystick Up

    Joystick Down

    P19

    Joystick Down

    Joystick Left

    P5

    Joystick Left

    Joystick Right

    P26

    Joystick Right

    Joystick Button

    P13

    Joystick Button

    SCLK

    P11/SCLK

    SPI clock input

    MOSI

    P10/MOSI

    SPI data input

    DC

    P24

    Data/Command selection (high for data, low for command)

    CS

    P8/CE0

    Chip selection, low active

    RST

    P25

    Reset, low active



    Dimensions:
