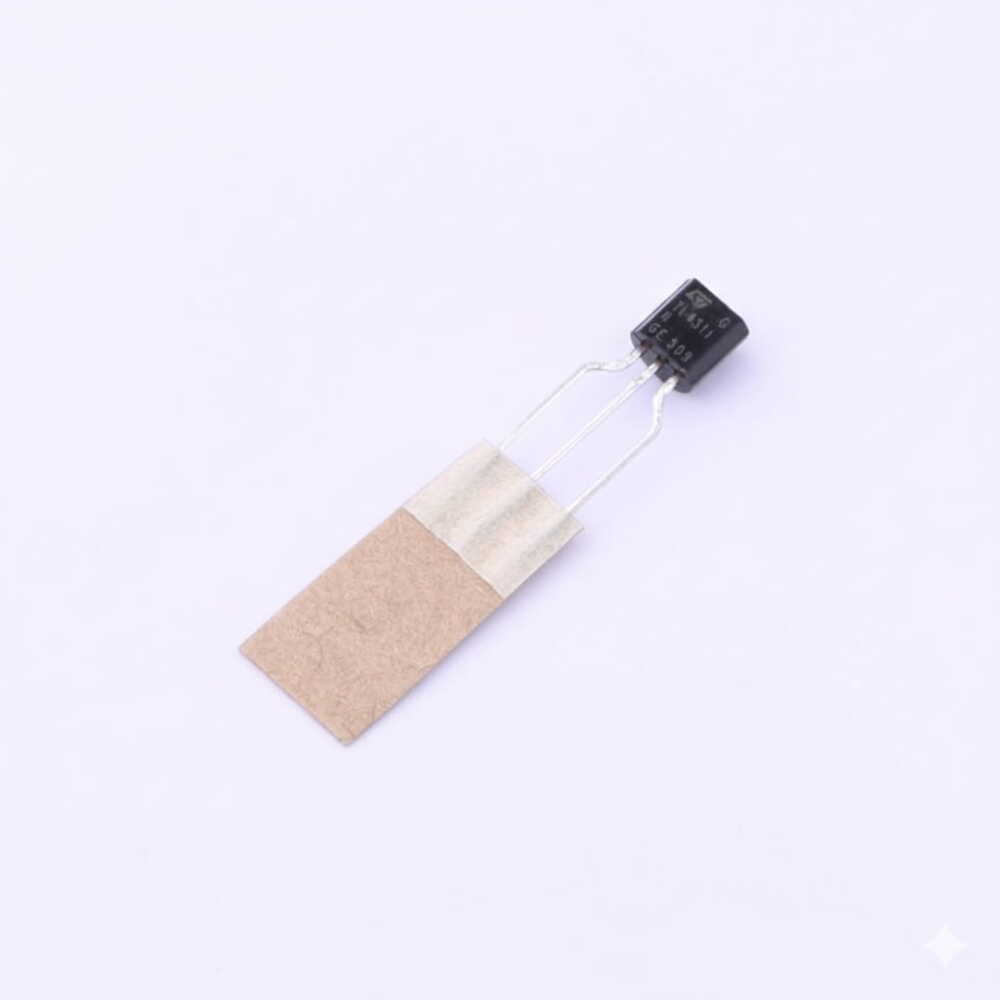

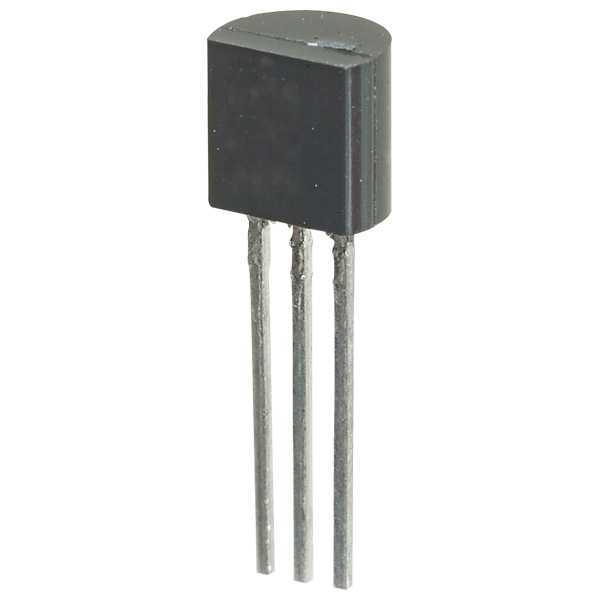

TL431IZT TO-92 Ayarlanabilir Hassas Voltaj Referansı (Shunt Regülatör)

TL431IZT TO-92 Adjustable Precision Voltage Reference (Shunt Regulator)

The TL431IZT is an adjustable precision voltage reference designed as a shunt regulator, offering stable and accurate voltage control in a wide range of applications. With an adjustable output voltage range from 2.5V to 36V and a tolerance of ±2%, it provides reliable regulation for power management and control circuits.

Thanks to its ability to sink up to 100mA of output current and its excellent temperature stability, the TL431IZT is widely used in power supplies, SMPS feedback circuits, battery chargers, and voltage monitoring applications. The TO-92 through-hole package makes it suitable for prototyping as well as compact and cost-effective PCB designs.

TL431IZT Technical Specifications:

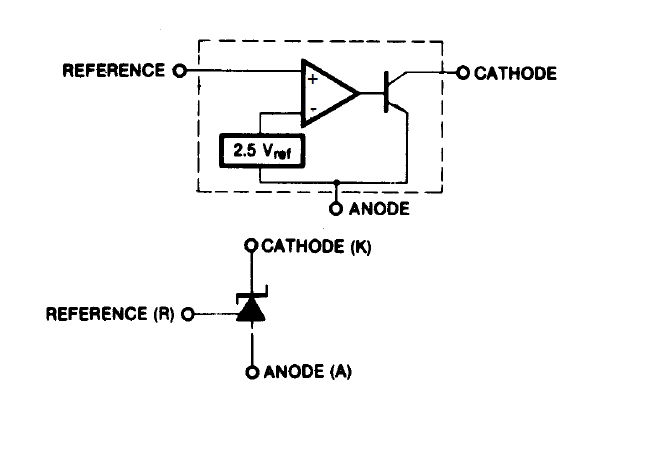

• Device type: Adjustable voltage reference (Shunt regulator)

• Reference type: Parallel (Shunt)

• Output voltage range: 2.495V – 36V

• Voltage tolerance: ±2%

• Supply voltage range: 2.5V – 36V

• Maximum output current: 100mA

• Package type: TO-92 (Through Hole)

• Operating temperature range: -40°C ~ +105°C

Useful Links / Documents:

• Datasheet
• EasyEDA Model
