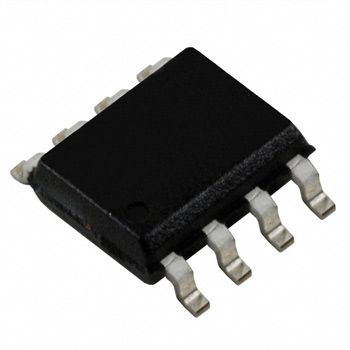

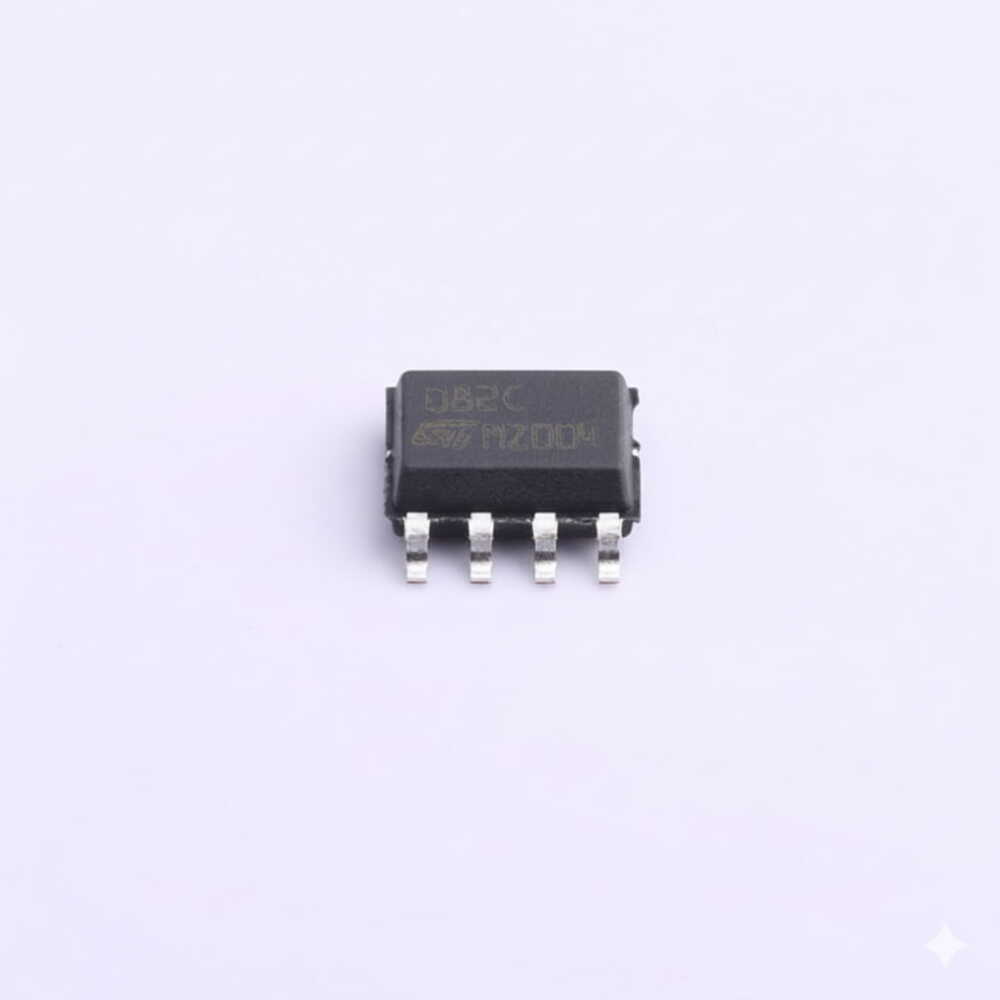

TL082CDT SO-8 Dual JFET Input Operational Amplifier

TL082CDT SO-8 Dual JFET Input Operational Amplifier

The TL082CDT is a general-purpose, dual-channel operational amplifier featuring JFET input stages with high input impedance. Thanks to its low input bias current and high slew rate, it delivers reliable performance in precision analog signal processing applications.

With a wide supply voltage range of 6V to 36V, a typical slew rate of 16V/µs, and a 4MHz gain bandwidth product, it is widely used in audio circuits, active filters, signal conditioning, measurement, and instrumentation applications. The SO-8 SMD package makes it suitable for compact and professional PCB designs.

TL082CDT Technical Specifications:

• IC type: Operational Amplifier (Op-Amp)

• Input structure: JFET input

• Number of channels: 2 (Dual)

• Package type: SO-8 (SMD)

• Supply voltage: 6V – 36V

• Slew rate: 16V/µs (typical)

• Gain bandwidth product (GBW): 4MHz

• Input offset voltage: 3mV

• Input bias current: 100pA

• Operating temperature range: 0°C ~ +70°C
