Sunline 853D+ Hot Air Handle (for 5A) - S208G

Brand
Sunline
Product Code
22087
Fiyat
: 695.80 TL + VAT
KDV Dahil Fiyat
: 1,138.54 TL
İndirimli Fiyat
: 834.97 TL
Money Order Price : 809.92 TL %3  Discount

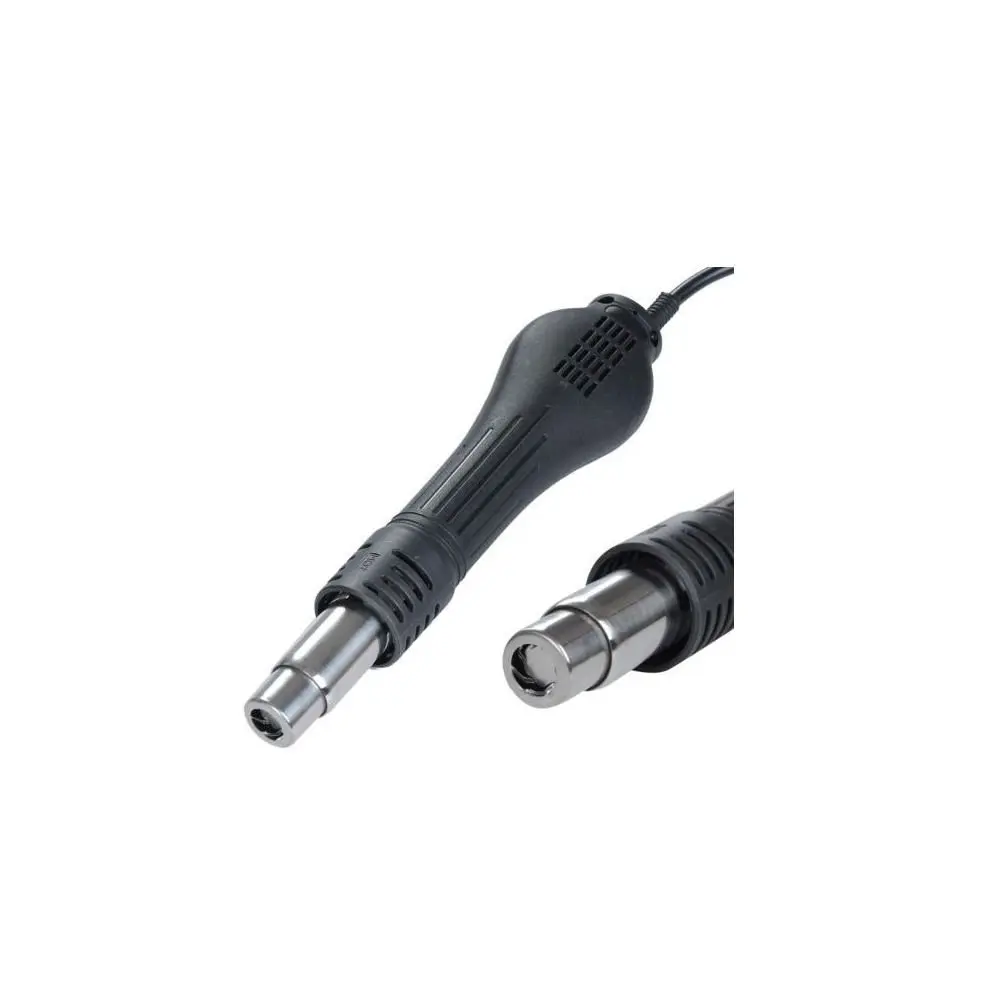

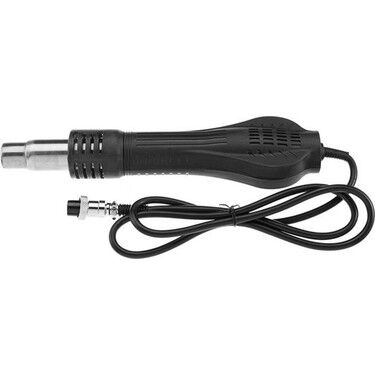

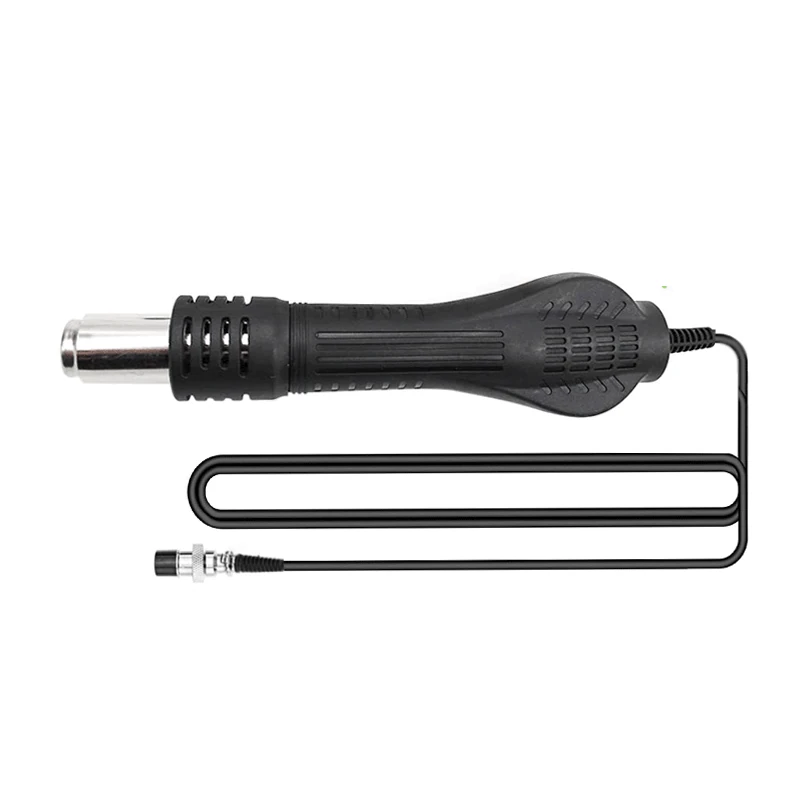

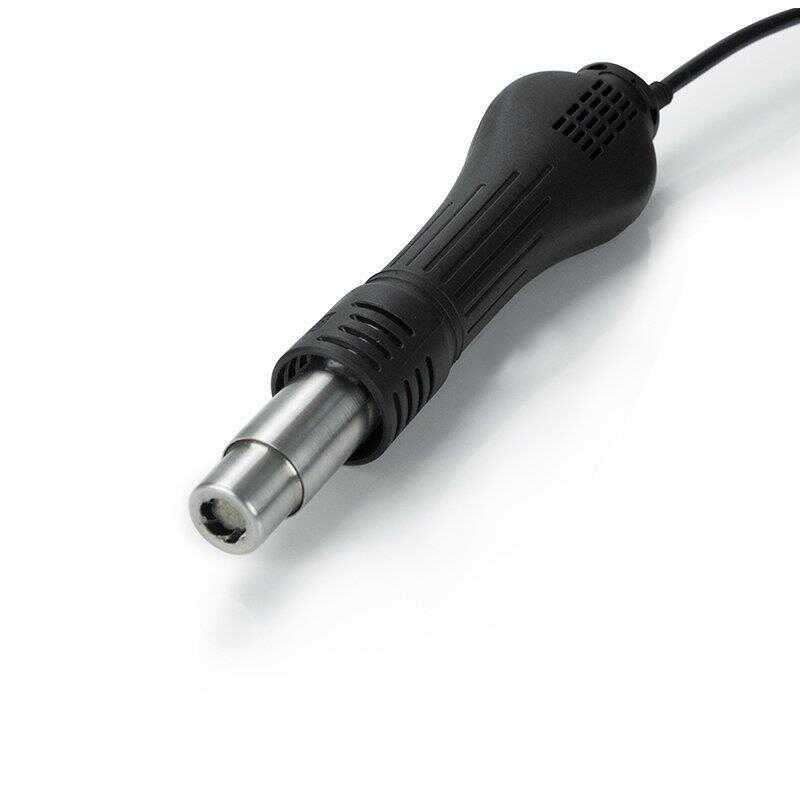

Sunline 853D+ Hot Air Handle (for 5A) - S208G



Sunline 853D+ Hot Air Handle (for 5A) - S208G, with its ergonomic and compact design, provides a comfortable working environment for professionals. Thanks to the state-of-the-art microcomputer temperature control P.I.D, it easily fixes the set temperature at the correct values without deviation, which gives you an accurate result. The product is manufactured with an innovative design by integrating an adjustable 30V / 5A DC power supply, hot air and soldering station. In this way, it meets your needs in all routine repair and repair works. It has the necessary equipment for maximum security. The unique ABS, anti-lock function also kicks in when the fan creates an unexpected function and running stability problem. The system immediately cuts off the weather station and power supply to ensure user and environment safety. In addition, these 3 functional features integrated into the case can work independently of each other thanks to the "dual core processor".

Sunline 853D+ Hot Air Arm (for 5A) - S208G Technical Specifications:



  • Model: 853D
  • Power consumption: 1000W±10%
  • Storage Ambient Temperature: 20°C / 80°C
  • Environment Operating temperature: 0°C / 50°C
  • Hot Air Station:
  • Airflow Type: Brushless fan
  • Discharge Flow: 120L / MIN
  • Temperature Range: 100°C / 480°C
  • Temperature Stability: ±2°C
  • Display Type: LED
  • Arm Cable Length: 100 cm
  • Blowing Arm Warmer: 74Ω
  • Soldering Station:
  • Power Consumption: 75W ± 10%
  • Temperature Range: 200°C / 480°C
  • Temperature Stability: ±1°C
  • Grounding Voltage: 2 mVGround Impedance: 2 ohms
  • Display Type: LED
  • Arm Cable Length: 100 cm
  • Arm Warmer: High Power Warmer
  • Calibration Mode: PID Digital Programmed Calibration
  • DC Power Supply Section:
  • Output Voltage: DC 0 /30V
  • Output Current: 0 / 5
  • Load Stability: 0.01 ± 2mV
  • Temperature Coefficient: 300 ppm/ °C
  • Ripple dB: 1mvrms
  • Display Type: LED
  • Size: 320 x 240 x 198 mm
  • Weight: 7.7kg
22087
Sunline 853D+ Hot Air Handle (for 5A) - S208G
Sunline 853D+ Hot Air Handle (for 5A) - S208G
:
695.80 TL + VAT
:
834.97 TL
