STM32 Development Board NUCLEO-G474RE

STM32 Development Board NUCLEO-G474RE

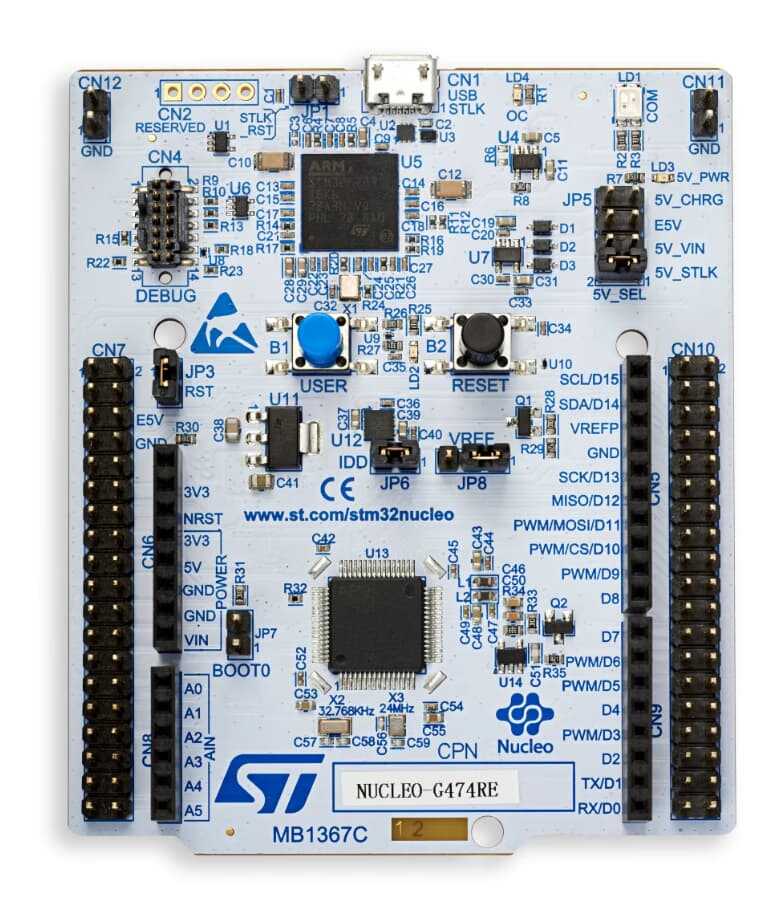

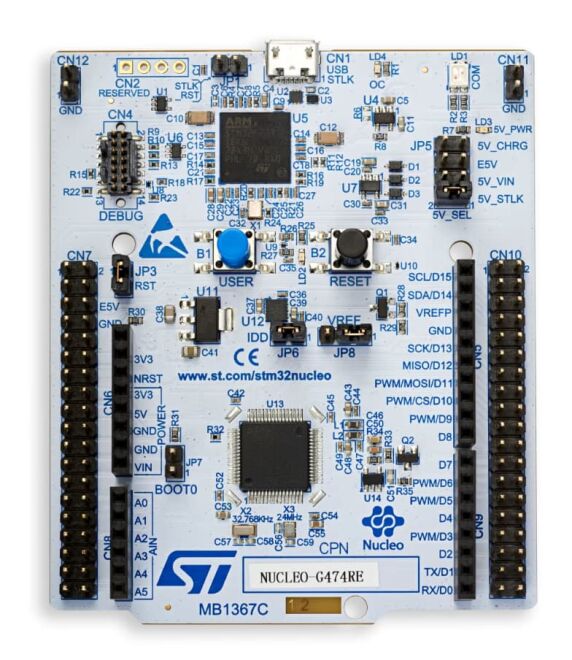

The STM32 Development Board NUCLEO-G474RE is a Nucleo-64 development board designed by STMicroelectronics for the high-performance STM32G4 series microcontrollers. The board features the STM32G474RE microcontroller with an Arm® Cortex®-M4 core and floating-point unit (FPU), making it especially suitable for motor control, power electronics, and industrial applications.

Thanks to the integrated ST-LINK/V3E debugger and programmer, programming and debugging can be performed quickly without the need for external hardware. Arduino™ Uno V3 and ST Morpho pin compatibility allows the board to be used with a wide range of expansion boards and hardware modules.

Compatible with popular development environments such as STM32CubeIDE, IAR Embedded Workbench, and Keil MDK-ARM, the NUCLEO-G474RE is a powerful and flexible development platform for education, R&D, and professional embedded system projects.

STM32 Development Board NUCLEO-G474RE Technical Specifications:

• STM32G474RE microcontroller with Arm® Cortex®-M4 core

• Maximum operating frequency of 170 MHz

• 512 KB Flash memory

• 128 KB SRAM

• On-board ST-LINK/V3E debugger and programmer

• Arduino™ Uno V3 and ST Morpho pin compatibility

• 24 MHz external high-speed oscillator (HSE)

• USB virtual COM port and advanced debug support

• Compatible with STM32Cube software libraries and example projects

Useful Links / Documents:

• STM32G474RE Datasheet
• NUCLEO-G474RE Documentation
