Raspberry Pi 500+ Desktop Kit

Raspberry Pi 500+ Desktop Kit

The Raspberry Pi 500+ Desktop Kit bundles the sleek, space-saving keyboard-computer with essential accessories. It provides a practical “plug-and-play” experience for everyday tasks, learning, software development, and maker projects.

Everything you need for a ready-to-run setup is included in the box; connect it to your monitor and get started right away with fast boot, quiet operation, and energy efficiency.

Technical Specifications (Raspberry Pi 500+):

• Processor: Raspberry Pi 5-based 2.4 GHz quad-core 64-bit architecture

• Memory: 16 GB LPDDR4X-4267 RAM

• Storage: Preinstalled 256 GB Raspberry Pi NVMe SSD (upgradeable up to M.2 2280); microSD card slot

• Video Output: 2 × micro HDMI® (up to dual 4Kp60)

• Connectivity: 2 × USB 3.0, 1 × USB 2.0, Gigabit Ethernet, dual-band Wi-Fi 5 (802.11ac), Bluetooth 5.0 BLE

• GPIO: 40-pin header (horizontal, accessible via external adapter)

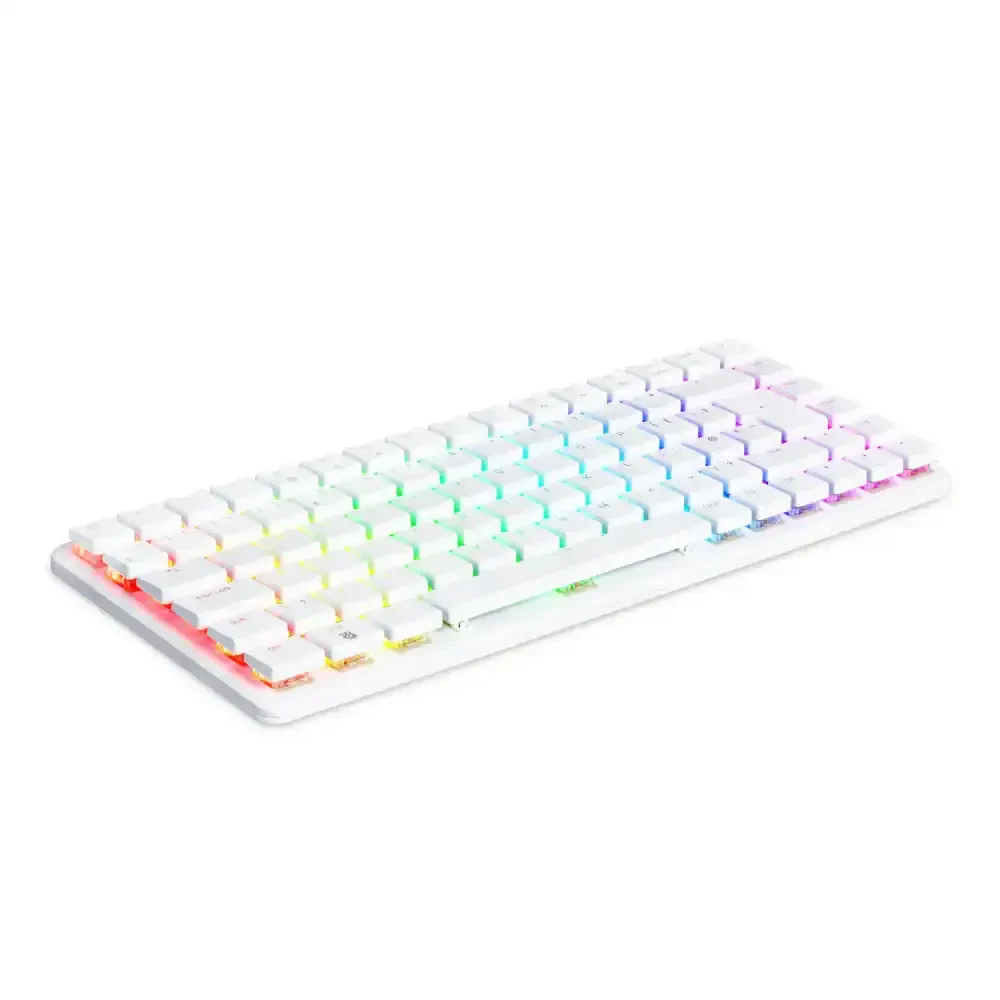

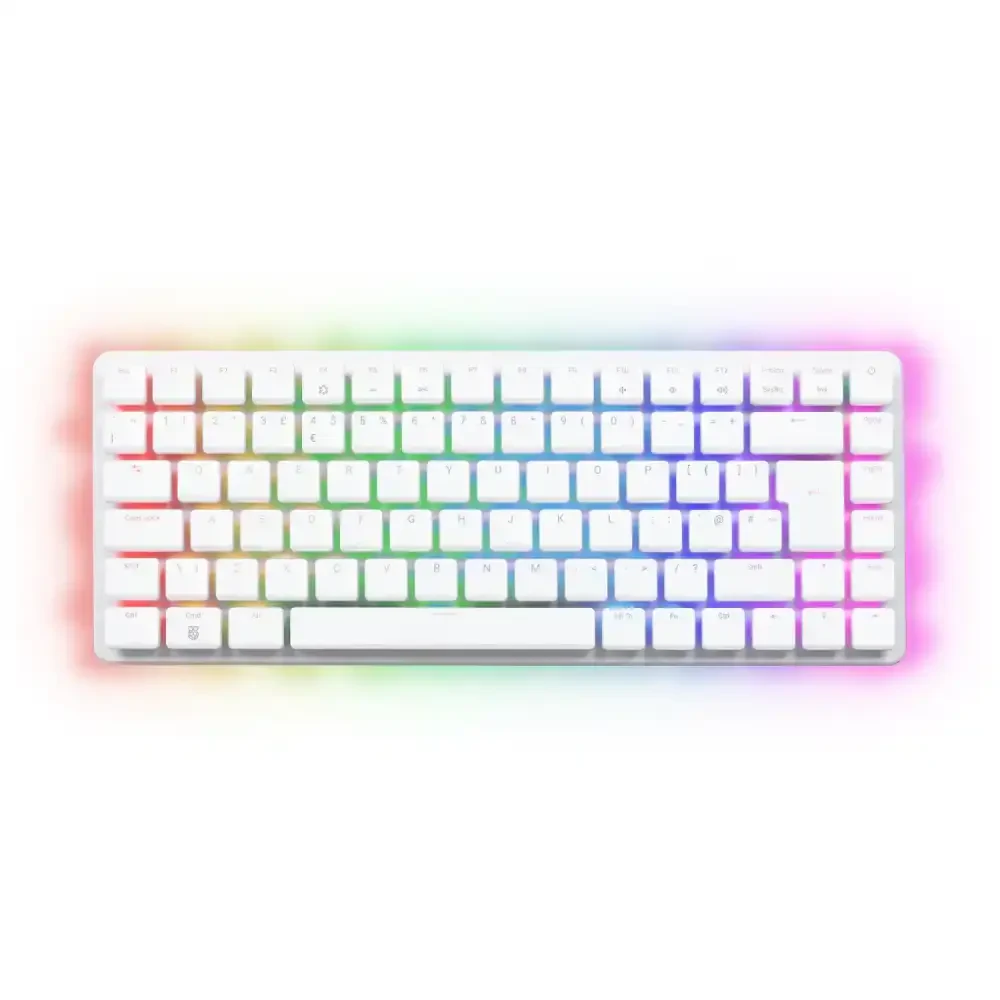

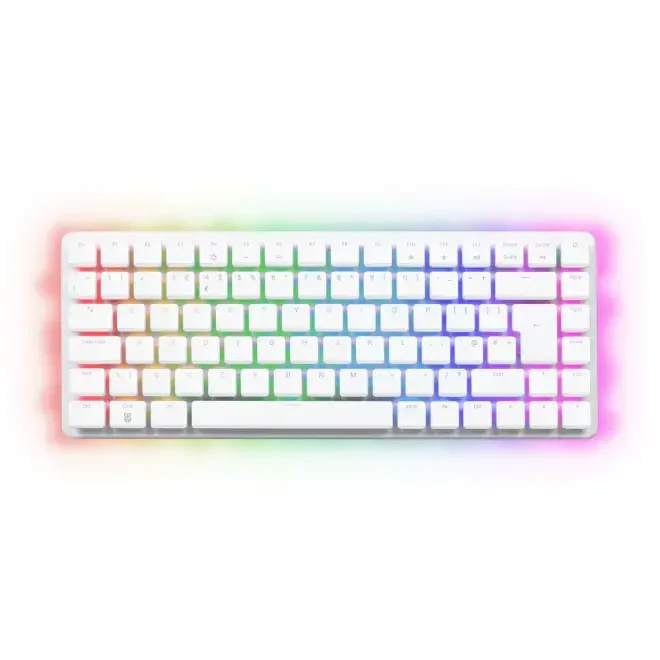

• Keyboard: Gateron KS-33 Blue low-profile mechanical switches, addressable RGB lighting, keycap puller tool

• Power Input: USB-C (5 V DC; 27 W adapter recommended)

• Dimensions/Thermals: One-piece aluminum heat spreader; 312 × 123.06 × 35.76 mm; operating temperature 0–50 °C

• Operating System: Compatible with Raspberry Pi OS and other Linux distributions

Package Contents:

• Raspberry Pi 500+ computer (16 GB RAM, 256 GB NVMe SSD preinstalled)

• USB-C power adapter (27 W compatible)

• Micro HDMI to HDMI cable

• Raspberry Pi optical mouse

• Quick start guide and setup documents

Useful Documents:

• Raspberry Pi 500+ Product Brief
• Raspberry Pi 500+ GitHub Documentation
• SSD replacement instructions
• Blog post: Raspberry Pi 500+: A Powerful and Accessible All-in-One Workstation!

Compatible Accessories:

• Raspberry Pi Accessory Range
• Raspberry Pi 5 27W USB-C Power Adapter
