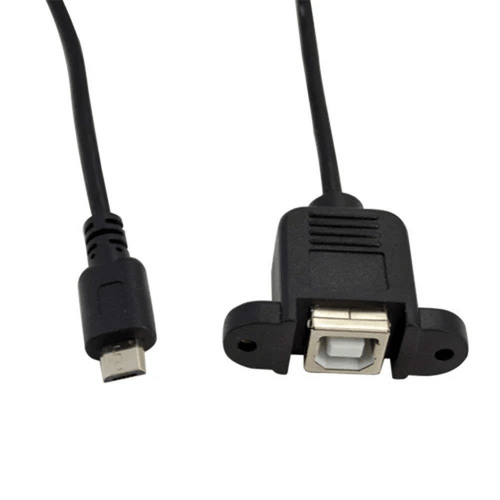

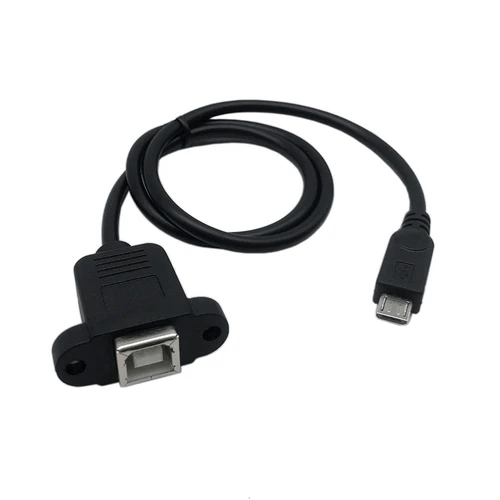

Panel Mount USB Cable - B Female to Micro-B Male

Panel Mount USB Cable - B Female to Micro-B Male

Handy USB extension cable will make it easy for you to enclose a device that has a micro-B type port. It would be most handy when putting an Arduino Leonardo or Raspberry Pi in a box.

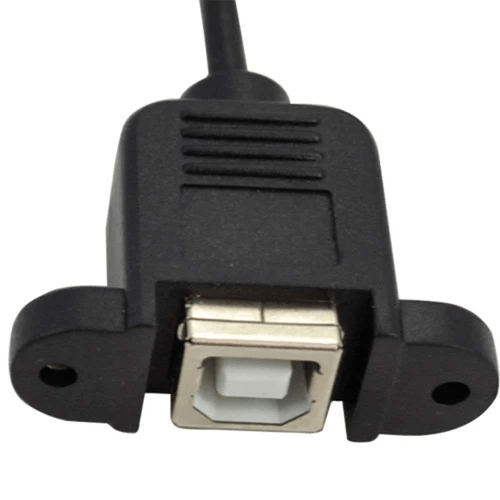

The jack half has two mounting 'ears' with M3 screws installed, ~1.1" / ~29mm apart. Can be used with box walls 0.125" to 0.25" wide. Depending on your usage you may want shorter or longer screws, feel free to experiment! Entire cable is ~310mm / ~12" long.

Technical Details:

• Length (from tip to tip): ~310mm / ~12"
• Length (between two connectors): ~280mm / ~11"
• Two 12mm M3 mounting screws, ~29mm apart
