Micro Switch with Pulley 5A 250V C-168

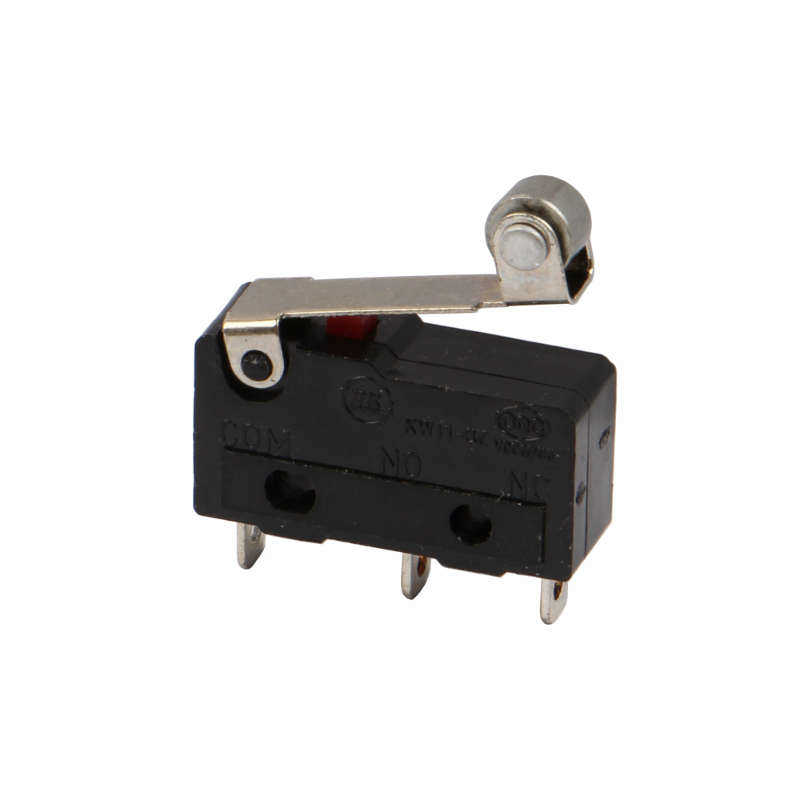

Micro Switch with Roller 5A 250V (JL024-2-026)

A roller micro switch capable of switching up to 5A current at 250V AC.

This roller micro switch is used in mechanical systems for position detection, limit sensing, or motion control. It provides long-lasting and reliable operation thanks to its durable switching mechanism. Operating at 5A 250V AC, this model can be used in both low and high voltage circuits. The roller lever allows smooth actuation and reduces mechanical stress.

It can be used as a limit switch in industrial automation systems, 3D printers, CNC machines, robotic projects, and various electronic applications.

Micro Switch with Roller 5A 250V Technical Specifications:

• Operating Voltage: 125V AC / 250V AC

• Current Capacity: 5A (125V AC) / 3A (250V AC)

• Connection Terminals: C (Common), NO (Normally Open), NC (Normally Closed)

• Actuator Type: Roller lever

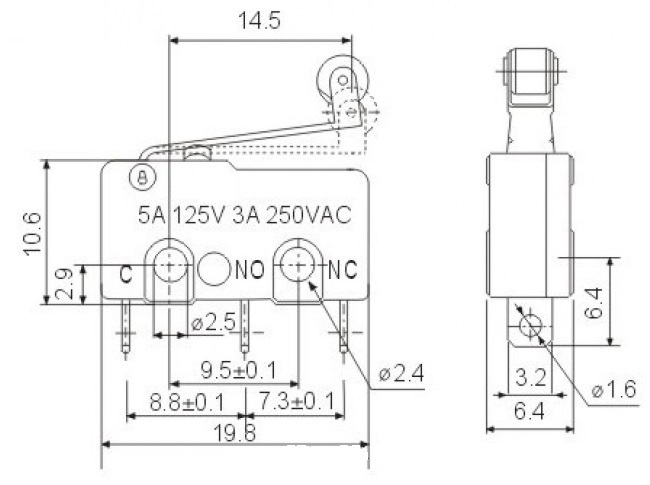

• Body Dimensions: 19.8 mm x 10.6 mm x 6.4 mm

• Lever Length: 14.5 mm

• Mounting Hole Diameter: Ø2.4 mm
