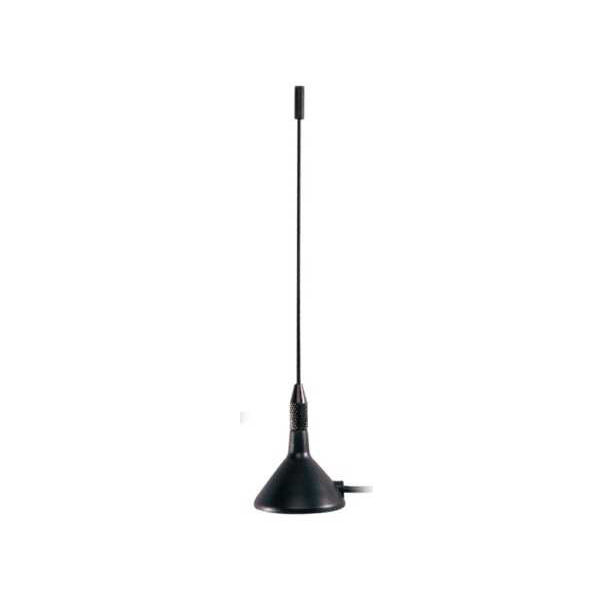

LTE-G-823 - External GSM Antenna

Product Code
:
17059
Brand / Origin
:
Jc
:
Comments (0)
Quantity
:
2
Without Vat
:
121.83 TL
Quantity:

-

+
Same Day Shipping
Orders placed until 5:00 on weekdays and 10:30 on Saturday are shipped the same day.
Add to Favorites
Click here to add this product to your list and review it later.
Technical Service
We are always with you with our experienced staff and advanced support services.
Refund Guarantee
We carry out the process without upsetting you with a 14-day return guarantee.
Add Comment
  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box

  • You can use this antenna with your GSM modules

    Technical Specifications:

    • Frequency Range : 824~960/1710~2170MHz
    • Polarization : Linear
    • Gain : 2dBi（Zenith）
    • V.S.W.R : ＜2.5
    • Impendance : 50Ω

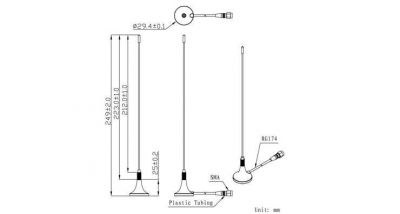

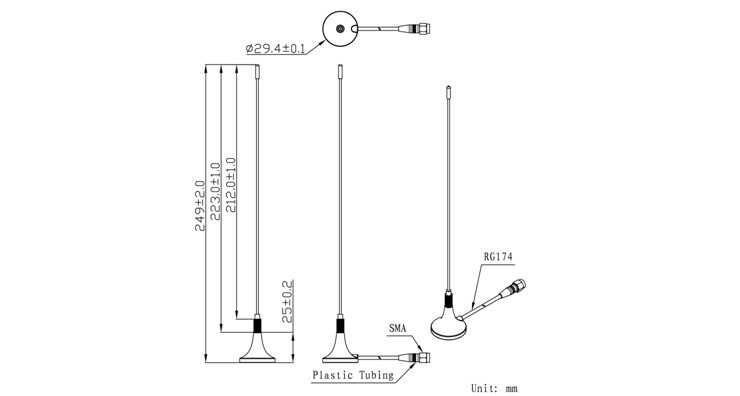

    • PCB Dimension : 230 mm
    • Cable : RG174 / 3m

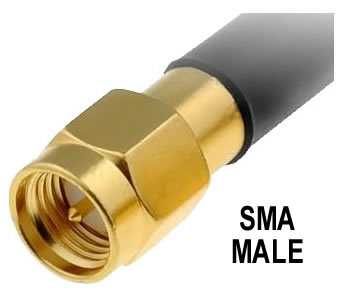

    • Connector : SMA or others
    • Mounting Method : Magnet
    • Operating Temperature : -40℃~+85℃
    • Relative Humidity : Up to 95%
    • Ingress Protection : IP67
    • Vibration : 10 to 55Hz with 1.5mm amplitude 2hours
    • Environmentally Friendly : ROHS Compliant
    Features
    Connector Type
    :
    SMA
