LaserBox

Product Code
:
18471
Brand / Origin
:
Makeblock
Quantity
:
5
Without Vat
:
48,380.77 TL
Add to Favorites
Click here to add this product to your list and review it later.
Technical Service
We are always with you with our experienced staff and advanced support services.
Refund Guarantee
We carry out the process without upsetting you with a 14-day return guarantee.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (4)
  • Recommend
  • Images
  • Suggestion Box
  • Bring Sketch to Life!!!


    Featuring the AI visual algorithm, Laserbox can follow the pattern drawn on the piece of material and programme the laser pathway automatically, no design nor operating software required! Just cut or engrave at the click of a button!




    Smart. Effortless. Powerful...


    Directly draw and cut - no software required and watch :)
    Featuring the AI visual algorithm, Laserbox can follow the pattern drawn on the piece of material and programme the laser pathway automatically, no design nor operating software required! Just cut or engrave at the click of a button!


    Material recognition
    Laserbox can recognize the types and thickness of the materials via official circle codes. Material settings, including power, speed, and height are instantly configured. Your iPhones will be recognized as well.


    5 MP ultra-wide-angle camera
    Built-in a 5 MP ultra-wide-angle camera, Laserbox shows you a preview of your design on the material. Insert your design with our software and position it with your mouse or finger exactly where you want.

    Image extraction
    Laserbox can extract the image on any object’s surface for further creation. Just use the Marquee Tool to select the image you like, then use it to make your own design.


    Smart path planning
    Laserbox software can plan the optimal cutting and engraving pathway for each project. Before cutting, Laserbox allows you to preview which paths it has plotted as well as estimated completion times. Laserbox’s software interface shows the status of your project in real time, as well as the remaining time of the current job. This allows you to efficiently plan your work and keep the results under close control.




    Three autofocus modes

    Say goodbye to complicated focusing procedures, no need to adjust the laser head manually. Laserbox has three easy autofocus modes: ① Material Recognition Autofocus, ② Material Set-up Autofocus, ③ Visual Autofocus. Achieving optimal focus couldn’t be easier.

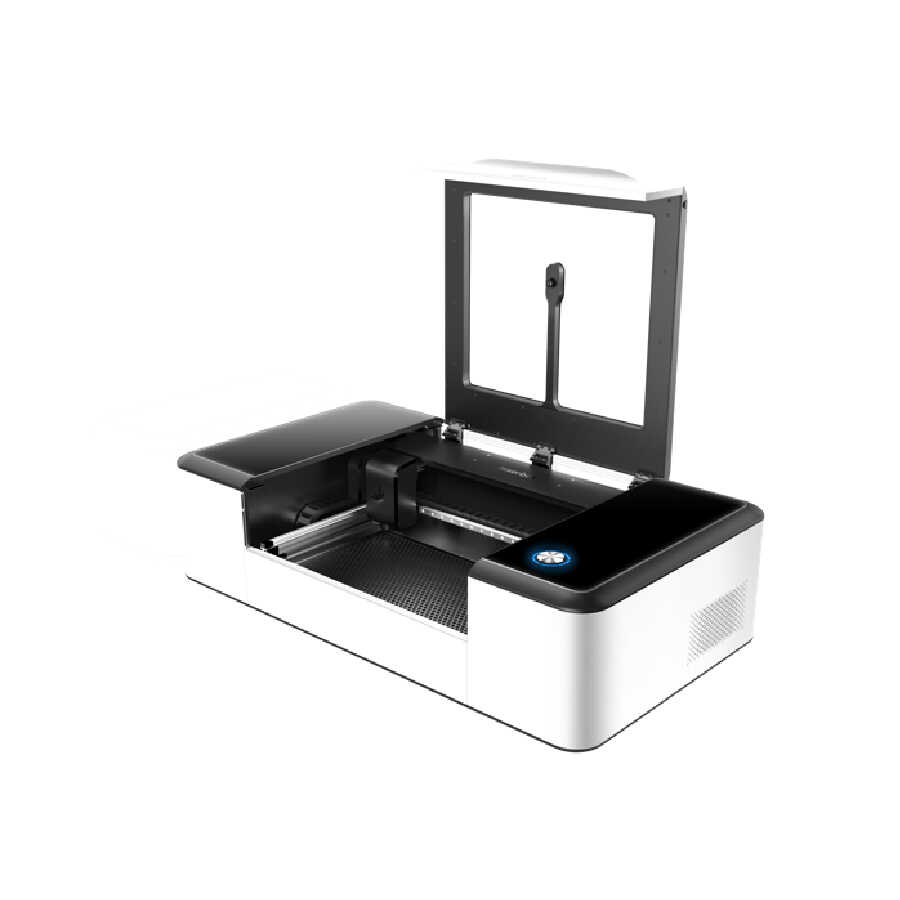

    Job pauses whenever you open the lid
    Laserbox stops working at the same time you open the lid, completely safe to use even for children.


    Smart smoke purifier
    The smart smoke purifier automatically opens, and adjusts the volume according to the working status of Laserbox, which ensures environment-friendly ventilation. The filter for smoke purifier could be easily replaced.


    Multiple safety early-warning systems
    Monitored in real time by collective high-performance sensors, Laserbox has multiple safety notifications, that immediately alert you to issues like overheating and water cooling system errors.


    Technicial Specifications:

    • Laser tube type and power: CO₂ laser 40W
    • Working area: 500 × 300 mm
    • Z-axis height: 25mm
    • Max cutting speeds: 600mm/sec
    • Precision: 0.05mm
    • Visual working area: 490 × 290 mm
    • Max. cutting depth: 15mm
    • Autofocus: Material Recognition Autofocus, Material Set-up Autofocus, Visual Autofocus
    • Connection: Wi-Fi, USB, Internet
    • Design software: Photoshop, Illustrator, CorelDRAW, AutoCAD, AutoDraw, Solidworks, and etc.
    • File formats: JPG, PNG, BMP, TIF, DXF, SVG, CR2, and etc.
    • Operating systems: Windows, macOS
    • Firmware updates: Continuous performance optimizing with firmware updates
    • Dimensions: 958 × 528 × 268 mm
    • Weight: 40kg
