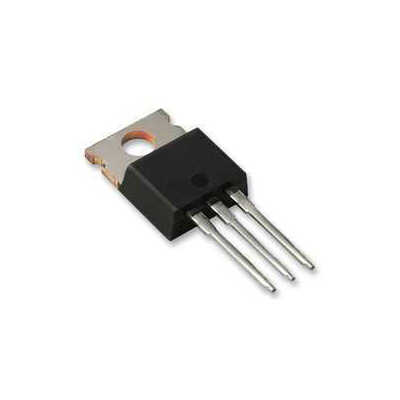

IRF830 - 4.5A 500V MOSFET - TO220 Mosfet

IRF830 - 4.5A 500V N-Channel MOSFET TO-220

The IRF830 is an N-channel power MOSFET designed for high-voltage and medium-current applications. It offers low on-resistance (R_DS(on)) and fast switching characteristics, providing high efficiency in operation. Commonly used in power supplies, inverter systems, motor drivers, and general power electronics circuits, the IRF830 features a TO-220 package that provides excellent heat dissipation and easy mounting.

IRF830 - 4.5A 500V N-Channel MOSFET Specifications:

• Transistor type: N-channel MOSFET

• Maximum drain current (I_D): 4.5A

• Maximum drain-source voltage (V_DS): 500V

• On-resistance (R_DS(on)): 1.5Ω (typical)

• Gate threshold voltage (V_GS(th)): 2V – 4V

• Total power dissipation: 74W (at 25°C)

• Operating temperature range: -55°C to +150°C

• Package type: TO-220

• Applications: SMPS circuits, inverter systems, motor drivers, and power regulation circuits
