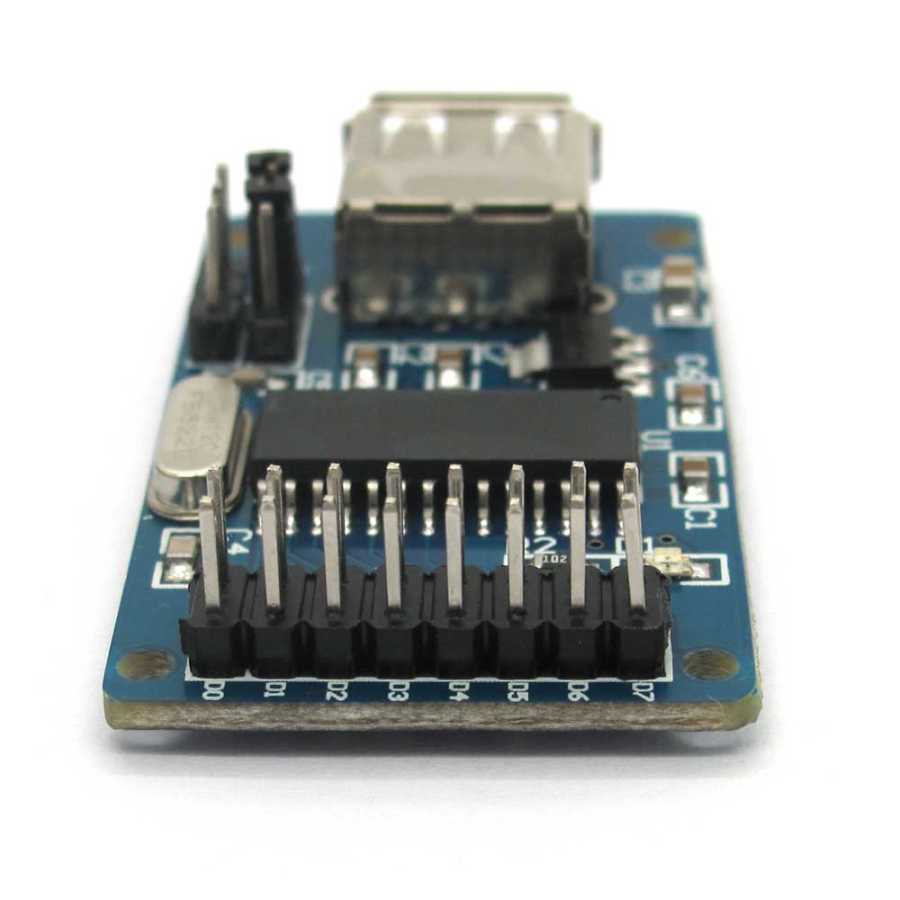

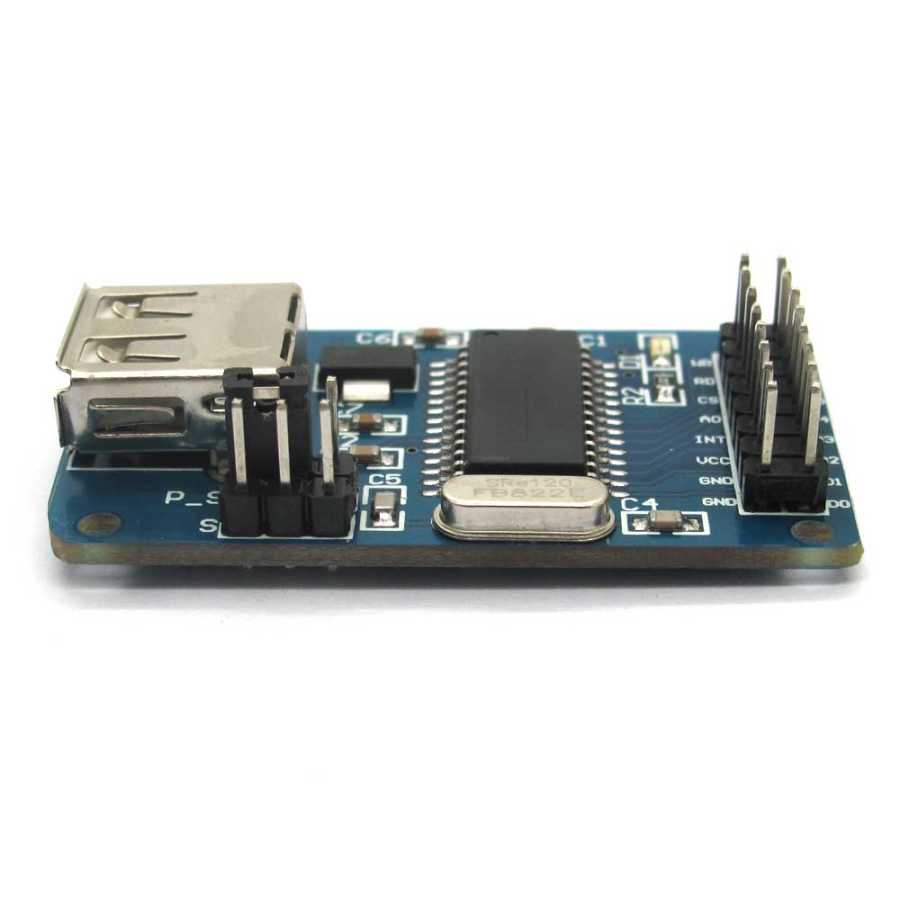

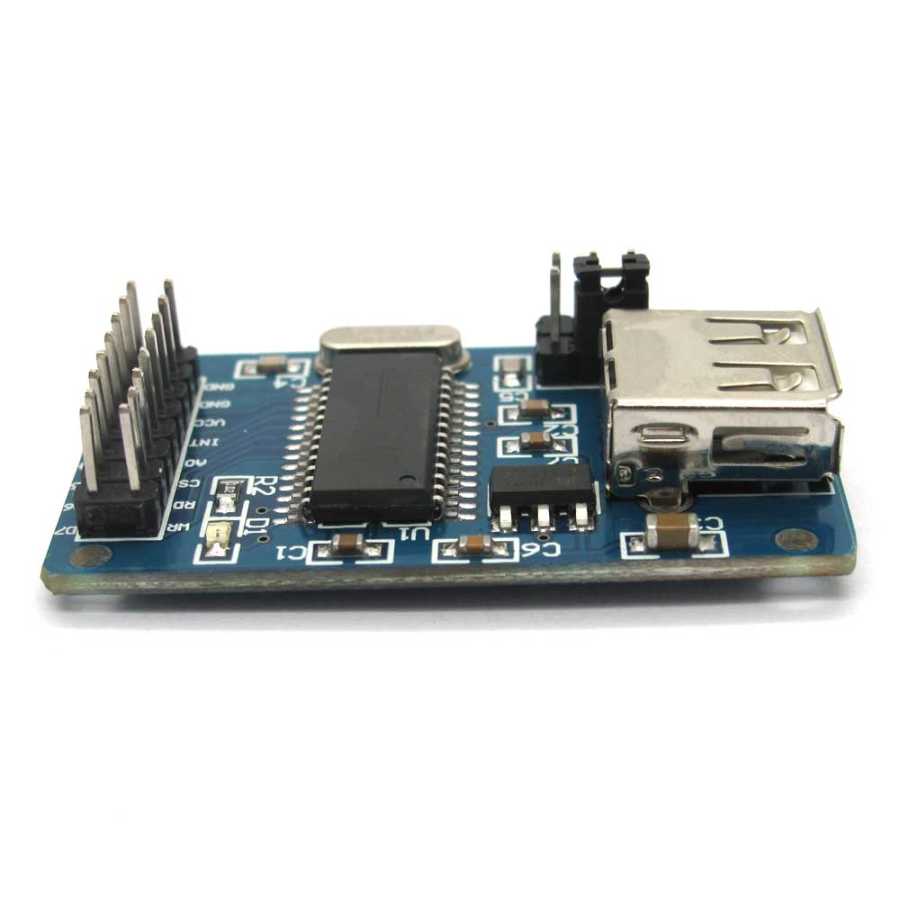

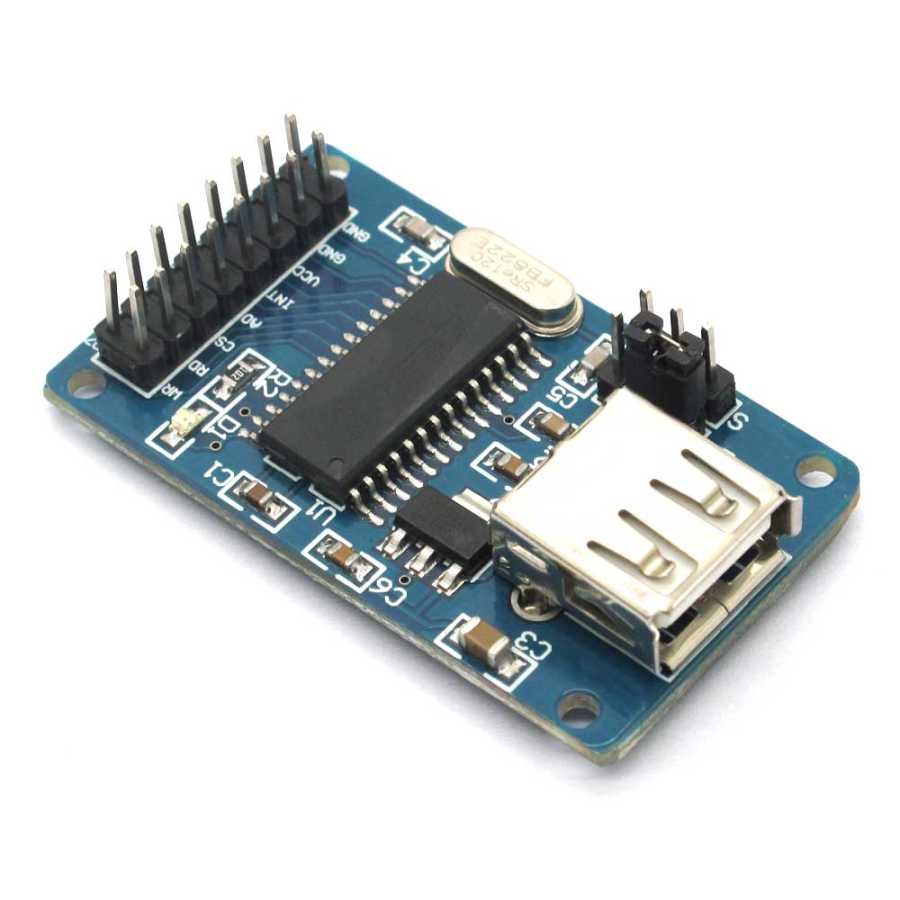

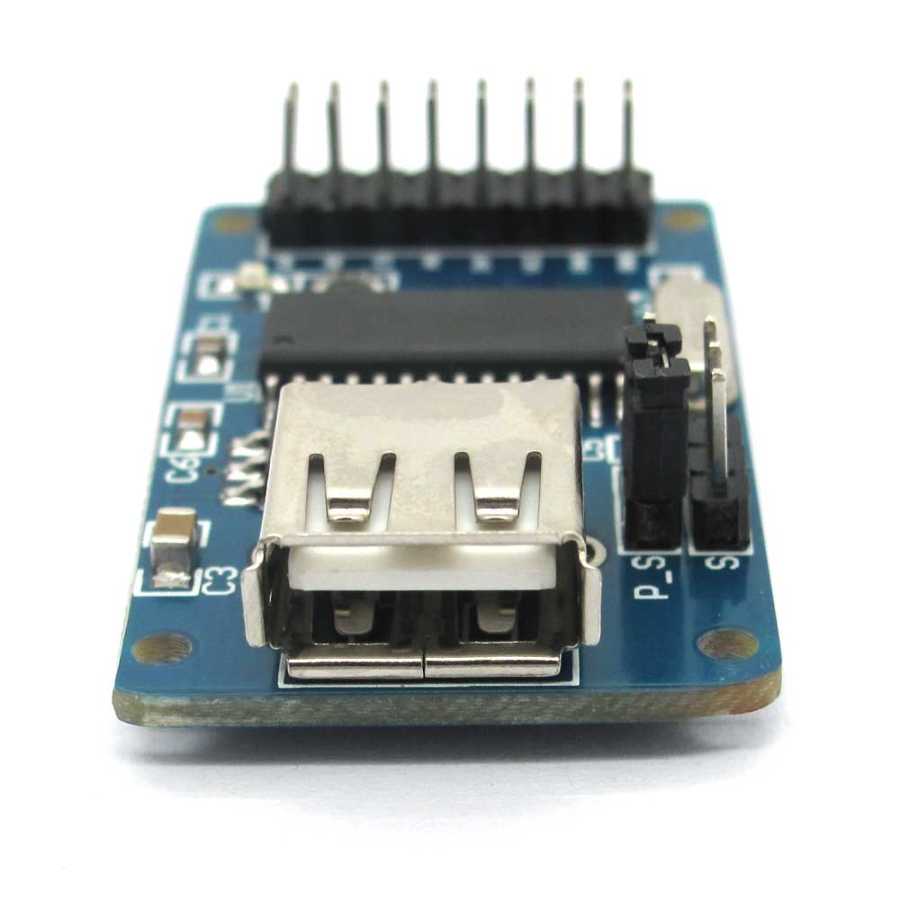

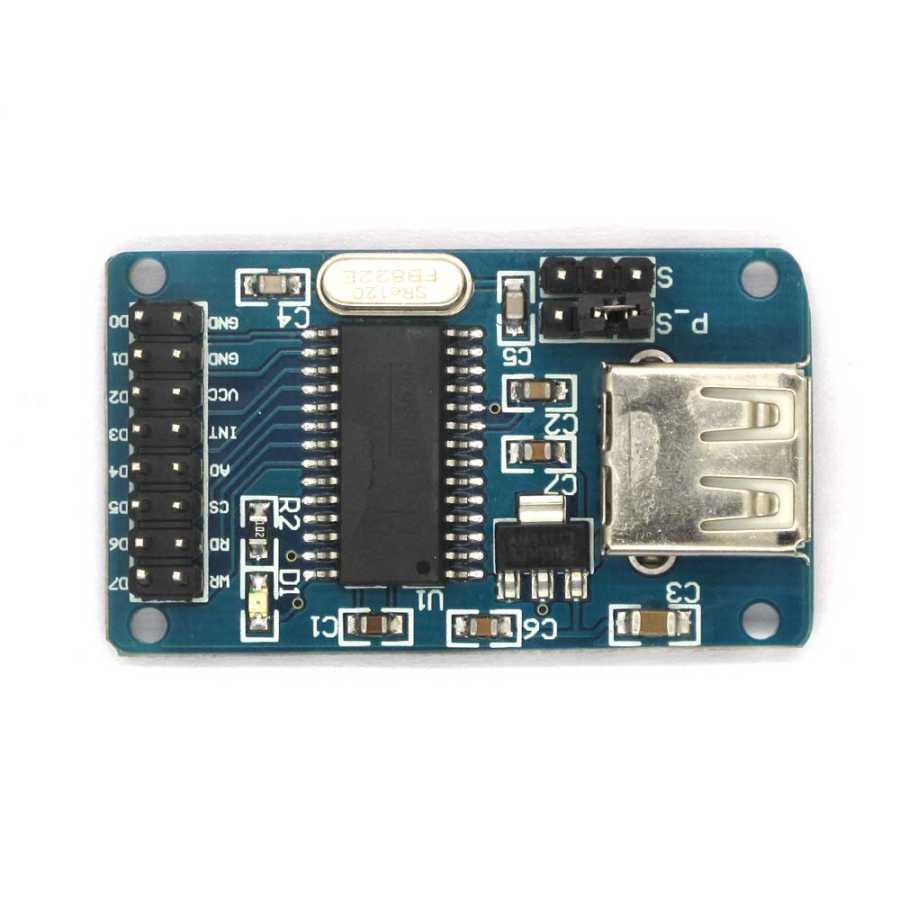

CH375B USB Flash Disk Read Module for Arduino

CH375B USB Flash Disk Read Module for Arduino

The CH375B USB Flash Disk Read Module for Arduino is a module that you can use to read and control USB flash drives with your development boards and other microcontrollers.
It features the CH375B IC on board. It has an 8-bit data bus, along with read, chip select, and interrupt connection pins.
Thanks to its serial communication and interrupt output interfaces, you can easily integrate this module into your projects.

CH375B USB Flash Disk Read Module for Arduino Technical Specifications:

• 2x8 pin header connection interface
• Parallel or serial communication mode (can be set via the jumper on the board)
• USB status indicator LED
• 3.3V regulator with low dropout voltage (maximum 800 mA current)
• Ability to be powered with 5V from the target connection board (your development board)
• 12 MHz internal crystal oscillator
• Dimensions: 47 mm x 27 mm

Documents & Useful Links:

• CH375B Datasheet
• Module Circuit Schematic
• Sample Application Page with Arduino®
