CAN-BUS Shield

CAN-BUS Shield Compatible with Arduino

The CAN-BUS communication protocol is widely used in the automotive sector, providing communication between all electronic components inside the car such as sensors, screens, etc. You can access detailed information about CAN-BUS from this link.

The CAN-BUS Shield allows your development boards to communicate with your vehicle's ECU. In this way, by using your Arduino® boards, you can instantly access a lot of information about your vehicle such as engine speed, coolant temperature, gas pedal position, etc.

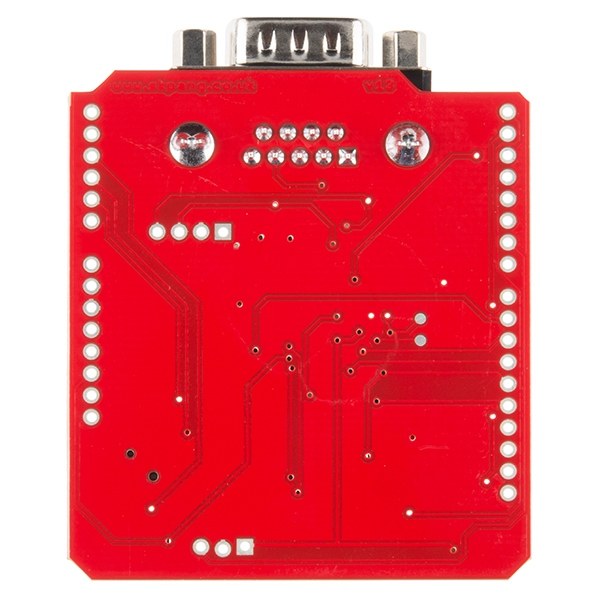

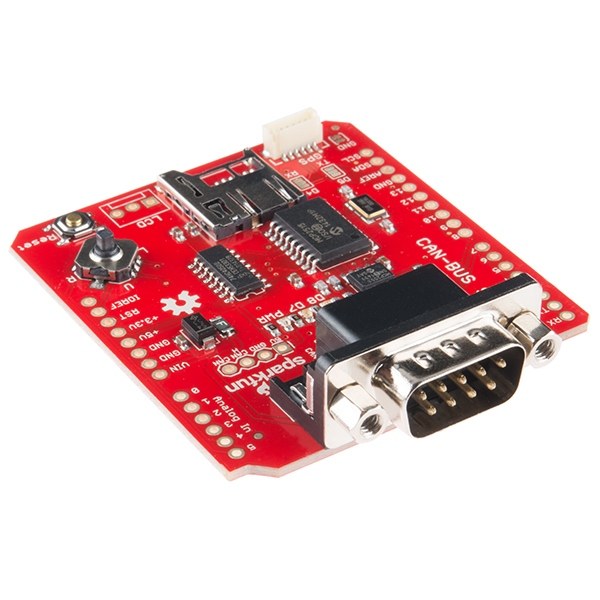

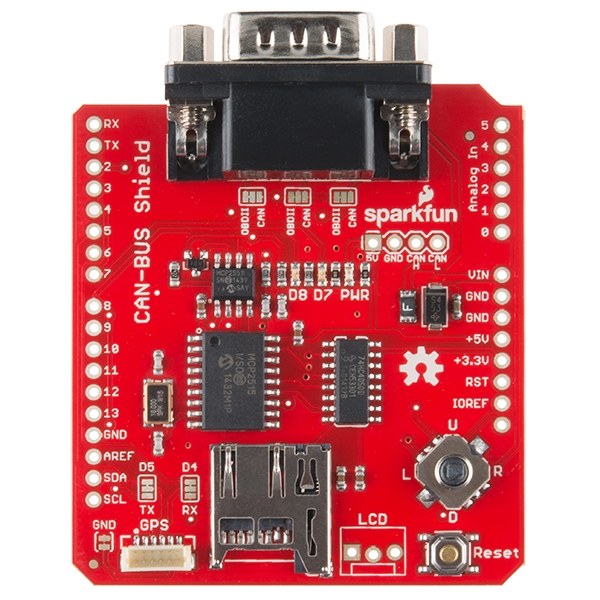

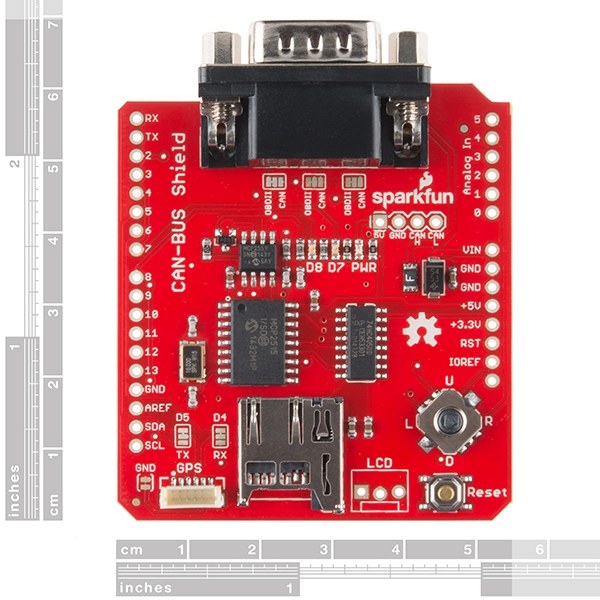

The board features the MCP2515 CAN controller and MCP2551 CAN transceiver ICs produced by Microchip. The CAN connection is provided by a DB9 to OBD-II converter cable. The board also features a serial LCD connection, joystick, micro SD card slot, and EM506 GPS module connections. Thus, you can easily use this shield in data logging applications.

Technical Specifications:

• CAN v2.0b, up to 1 Mb/s
• High-speed SPI interface (10 MHz)
• Standard and extended data and remote frame support
• CAN communication via standard 9-pin sub-D connector
• Can supply power to the board via sub-D connector (protected by resettable fuse)
• EM506 GPS module socket
• Micro SD card slot
• Serial LCD connector
• Reset button
• Joystick for menu navigation on the LCD
• 2 x LED indicators

Products That Can Be Used Together:

• OBD-II DB9 Converter Cable
• UNO R3 Development Board Compatible with Arduino (CH340)
• Arduino® UNO R3
• Shield Types Compatible with Arduino
• SD Cards

Documents & Useful Links:

• Schematic
• EAGLE Files
• MCP2515 Datasheet
• MCP2551 Datasheet
• Hookup Guide
• OBD-II Guide
• GitHub Page (Sample Code and Library)
• Product Video
