ARDUINO GSM SHIELD GPS

ARDUINO GSM SHIELD GPS

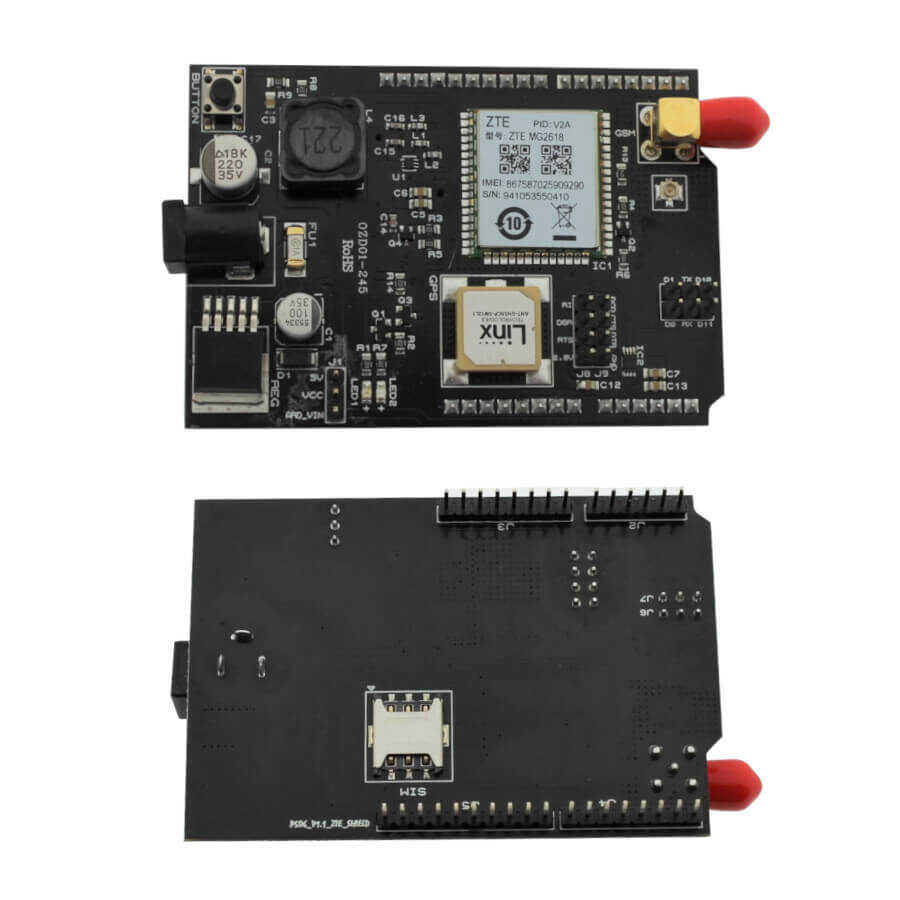

The Arduino GSM Shield GPS is an advanced communication shield designed to be used with Arduino UNO, combining GSM communication and GPS positioning features on a single board. It supports operations such as sending and receiving SMS, making and answering calls, data transmission over GPRS, and obtaining GPS location information.

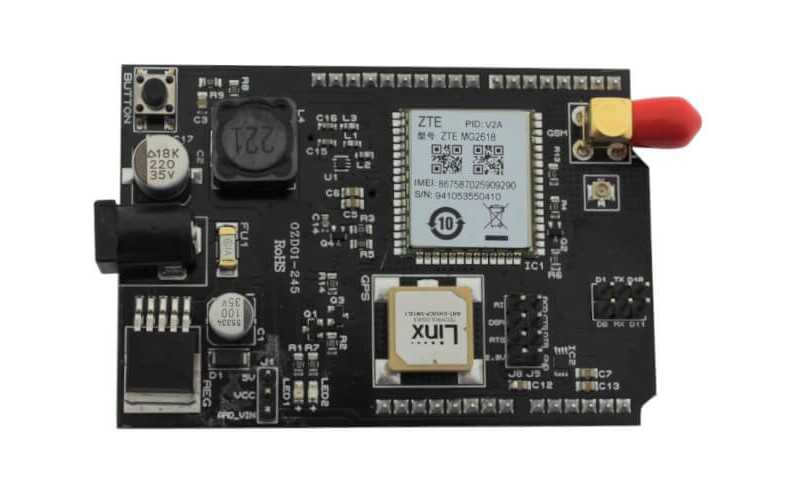

Powered by the ZTE Welink MG2618V2C-MK-02 GSM/GPS module, it delivers reliable and stable GSM and GPS performance. The shield communicates with Arduino via UART and is controlled using AT commands. It is an ideal solution for IoT, vehicle tracking, remote monitoring, security, and location-based applications.

ARDUINO GSM SHIELD GPS Technical Specifications:

• Uses the ZTE Welink MG2618V2C-MK-02 GSM/GPS module

• Supports GSM 850 / 900 / 1800 / 1900 MHz frequency bands

• GPS, GNSS, Beidou, Galileo, and GLONASS positioning support

• SMS sending and receiving support (Text and PDU modes)

• Supports making, answering, and ending voice calls

• GPRS support (Uplink: 42.8 kbps / Downlink: 85.6 kbps)

• Compatible with GPRS Multi-slot Class 10 and Mobile Station Class B

• UART communication with Arduino (SoftwareSerial support)

• Supports SMA and IPEX GSM antenna connections

• Dedicated GPS/GNSS antenna connector

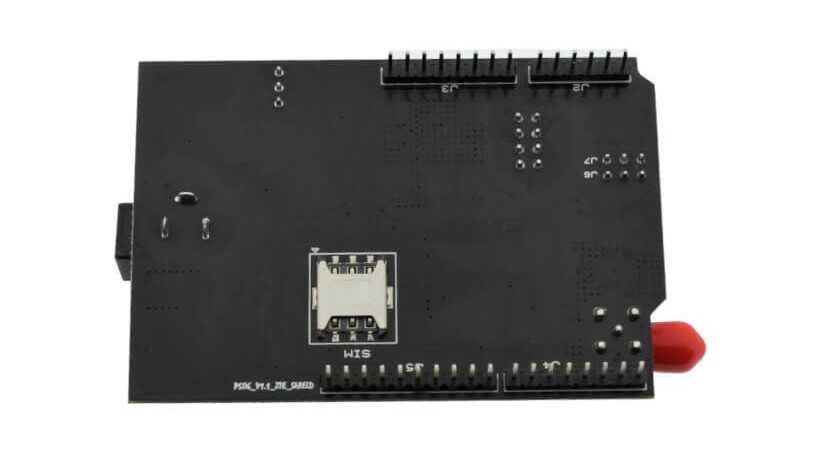

• Integrated SIM card slot

• LED status indicators (Power and Network status)

• Supports 5V power supply via Arduino or external adapter
