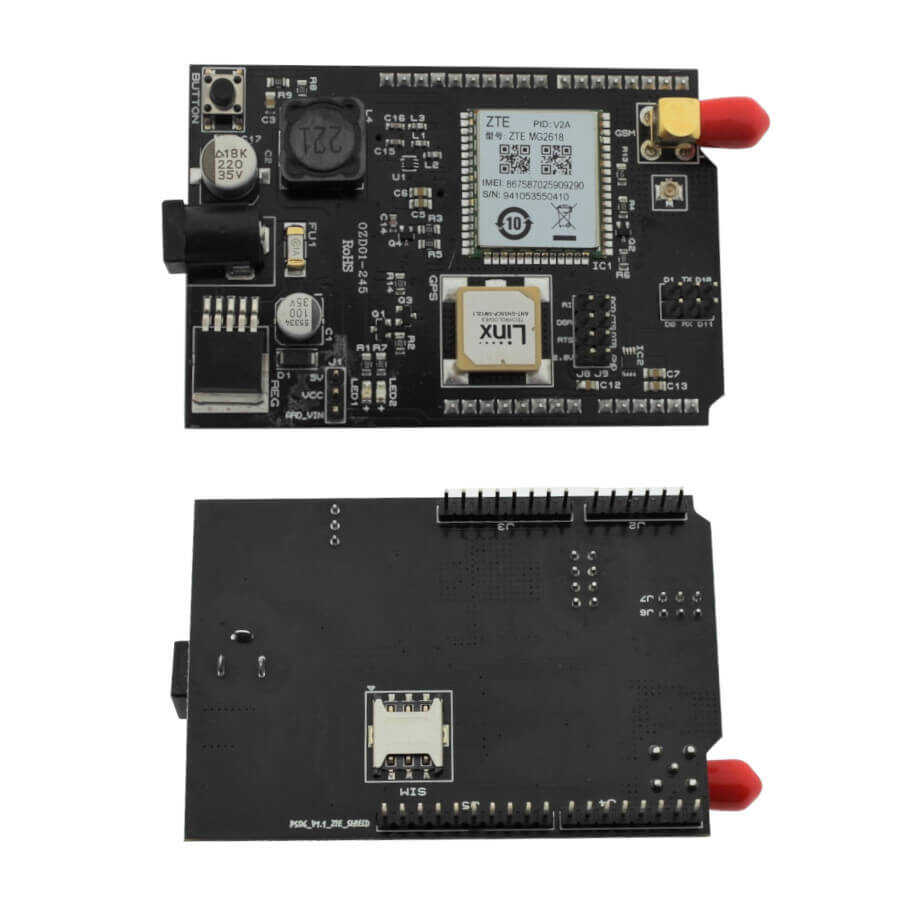

GSM + GPS Shield for Arduino

GSM + GPS Shield for Arduino is an advanced expansion board specially designed to be used with Arduino® UNO and other compatible development boards, offering cellular communication (GSM) and global positioning (GPS) features on a single compact board.
With this shield, you can easily perform advanced operations in your projects such as sending/receiving SMS, making voice calls, transmitting data to the internet over GPRS, and receiving precise real-time GPS location information via satellites.

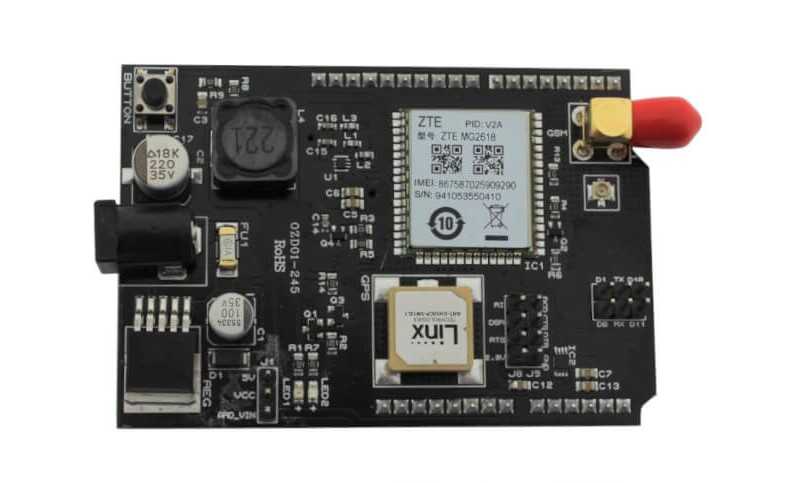

Thanks to the highly integrated ZTE Welink MG2618V2C-MK-02 GSM/GPS module on it, both cellular network and positioning functions operate reliably and very stably.
It communicates with your development board through the UART (serial communication) line and can be easily controlled using standard AT commands. It is a unique solution for smart IoT solutions, vehicle tracking systems, remote data monitoring, security infrastructures, and location-based (LBS) projects.

GSM + GPS Shield for Arduino Technical Specifications:

• Communication Processor: ZTE Welink MG2618V2C-MK-02 integrated GSM/GPS module architecture
• Frequency Bands: GSM 850 / 900 / 1800 / 1900 MHz Quad-Band support for global compatibility
• Advanced Positioning: Precise positioning infrastructure fully compatible with GPS, GNSS, BeiDou, Galileo, and GLONASS satellites
• Messaging Support: Sending and receiving short messages (SMS) over the cellular network (Text and PDU modes)
• Call Management: Features for making calls, answering incoming calls, and ending calls with software commands
• GPRS Mobile Data Speed: Internet connection and data transfer over GPRS (Uplink: 42.8 kbps / Downlink: 85.6 kbps)
• Network Standards: Industrial compatibility with GPRS Multi-slot Class 10 and Mobile Station Class B
• Connection Interface: Communication over UART (can be assigned to desired digital pins with the SoftwareSerial library)
• Cellular Antenna Input: SMA and IPEX external GSM antenna connection support for stable network signal
• Positioning Antenna Input: Built-in active/passive GPS/GNSS antenna connection point for high-precision satellite tracking

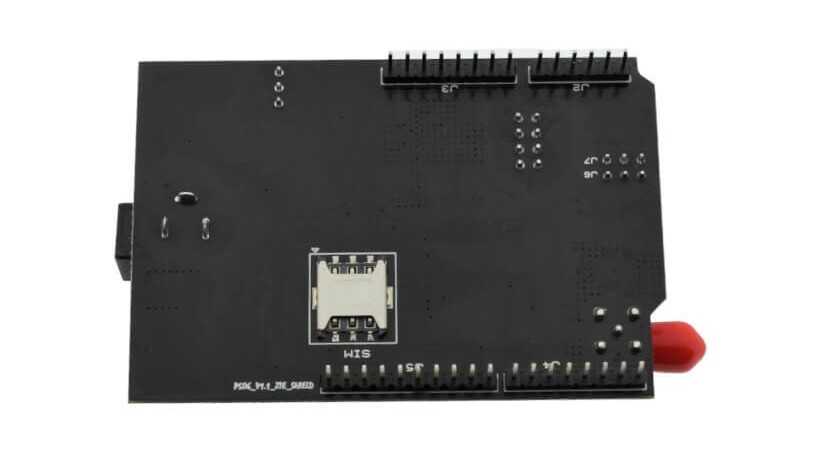

• SIM Card Slot: Secure integrated slot design where standard SIM cards can be inserted directly
• Status Indicators: Power and Network Connection Status LEDs that make system monitoring easier
• Power Management: 5V power supply support via the Arduino® board or an external adapter socket for more stable current

GSM + GPS Shield for Arduino Documents and Useful Links:

• GSM and GSM/GPS Shield Technical Datasheet for Arduino® (PDF)
