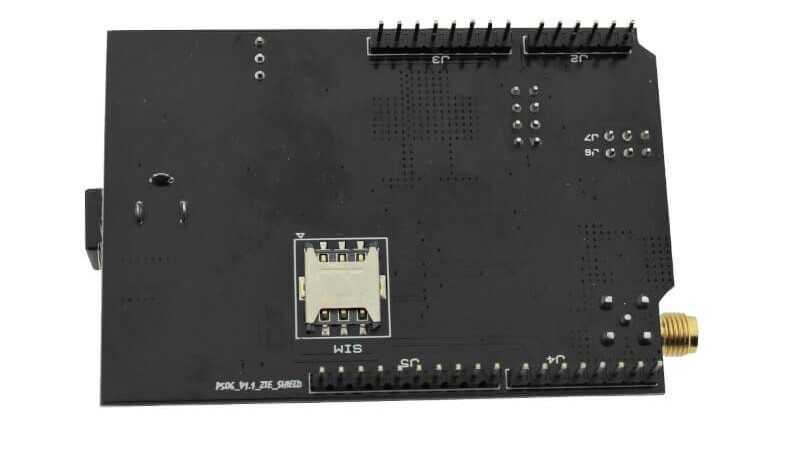

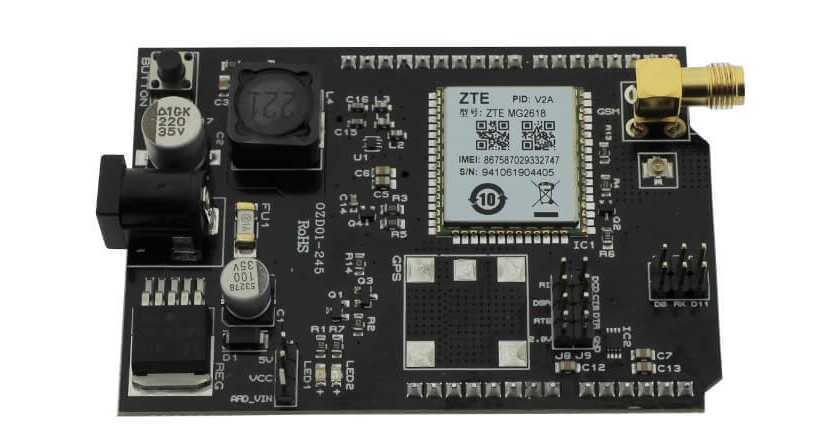

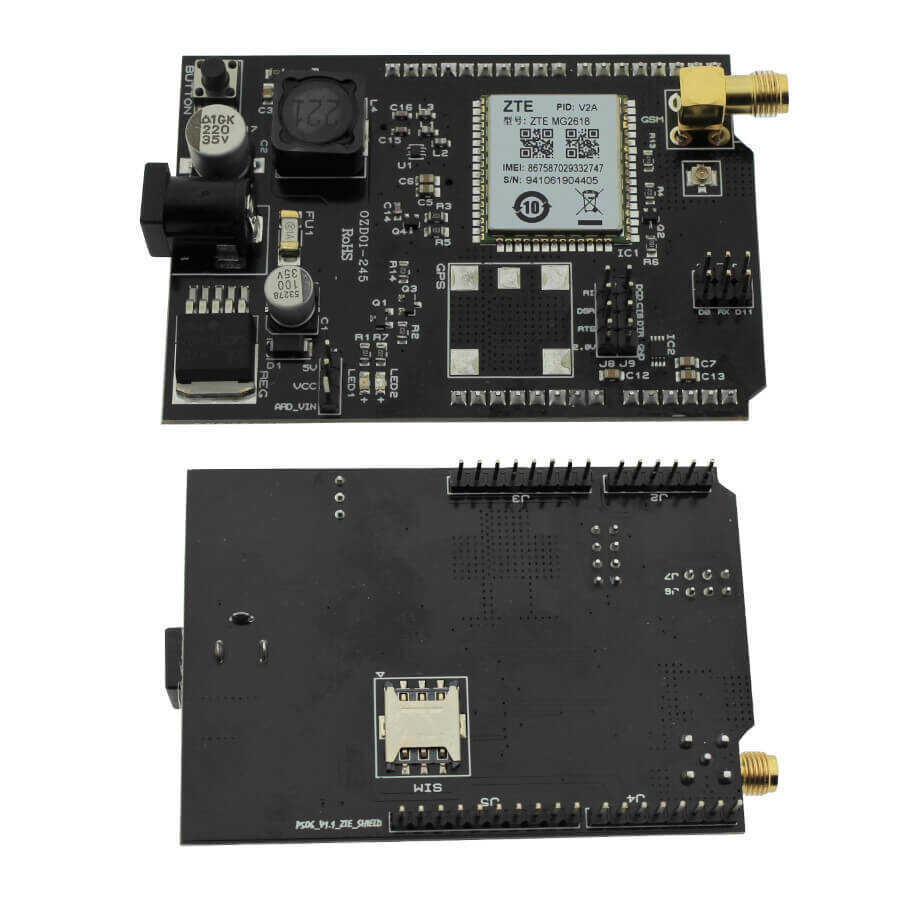

ARDUINO GSM SHIELD

ARDUINO GSM SHIELD

The Arduino GSM Shield is a communication board designed to be used with Arduino UNO, allowing you to easily implement GSM-based communication applications. It supports operations such as sending/receiving SMS, making and answering calls, and data transmission over GPRS.

Equipped with the ZTE Welink MG2618V2A-MK-02 GSM module, it provides reliable and stable GSM communication. It communicates with Arduino via UART and can be controlled using AT commands. It is an ideal solution for education, IoT, remote monitoring, and automation projects.

ARDUINO GSM SHIELD Technical Specifications:

• Uses the ZTE Welink MG2618V2A-MK-02 GSM module

• Supports GSM 900 / 1800 MHz frequency bands

• SMS sending and receiving support (Text and PDU modes)

• Supports making, answering, and ending voice calls

• GPRS support (Uplink: 42.8 kbps / Downlink: 85.6 kbps)

• Compatible with GPRS Multi-slot Class 10 and Mobile Station Class B

• UART communication with Arduino (SoftwareSerial support)

• Supports SMA and IPEX GSM antenna connections

• Integrated SIM card slot

• LED status indicators (Power and Network status)

• Supports 5V power supply via Arduino or external adapter

• GSM module certified with CE, FCC, and other international standards
