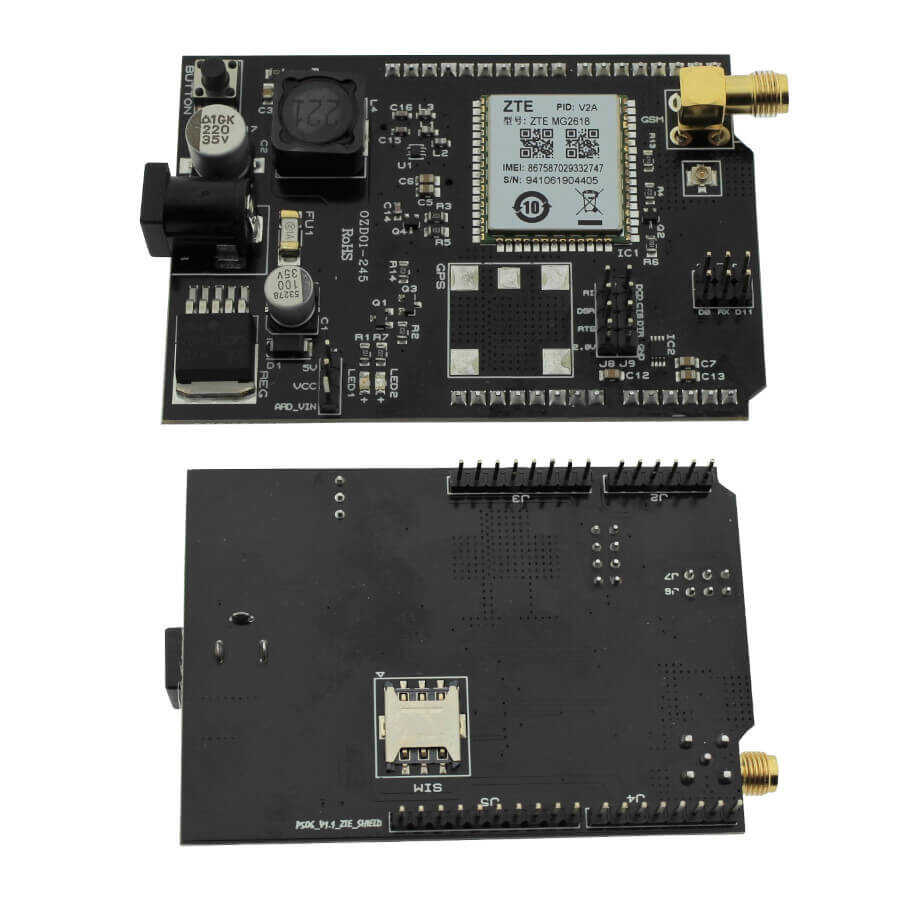

GSM Shield for Arduino is a professional expansion board specially designed to be used with Arduino® UNO and other compatible development boards, allowing you to easily carry out GSM-based communication applications. With this shield, you can smoothly perform cellular network operations in your projects such as sending/receiving SMS, making voice calls, answering incoming calls, and transmitting data to the internet over GPRS infrastructure.

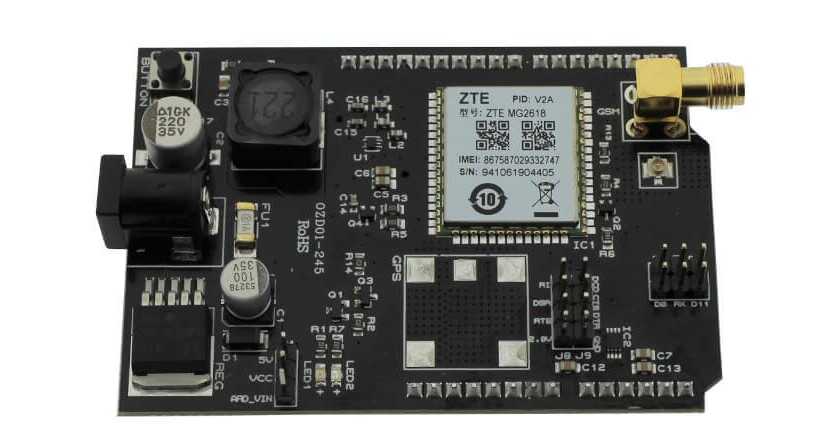

Thanks to the high-performance ZTE Welink MG2618V2A-MK-02 GSM module on it, it provides a reliable, uninterrupted, and stable cellular communication experience. It communicates with your development board through the UART (serial communication) interface and can be easily controlled with standard AT commands. It is one of the most ideal solutions for smart education applications, Internet of Things (IoT), remote data monitoring (telemetry), and automation projects.
GSM Shield for Arduino Technical Specifications:
GSM Module: Powerful ZTE Welink MG2618V2A-MK-02 cellular communication chip
Frequency Support: Worldwide common GSM 900 / 1800 MHz dual-band compatibility
SMS Management: Sending and receiving short messages (SMS) over the cellular network (Text and PDU mode support)
Voice Call Control: Functions for making calls, answering incoming calls, and ending calls with AT commands
GPRS Data Speed: Mobile data transfer over GPRS (Uplink: 42.8 kbps / Downlink: 85.6 kbps)
Cellular Classification: Full compatibility with GPRS Multi-slot Class 10 and Mobile Station Class B
Communication Interface: Communication over UART line (can be used with desired digital pins via the SoftwareSerial library)
Antenna Connection: Built-in SMA and IPEX GSM antenna connectors on the board for flexible mounting options

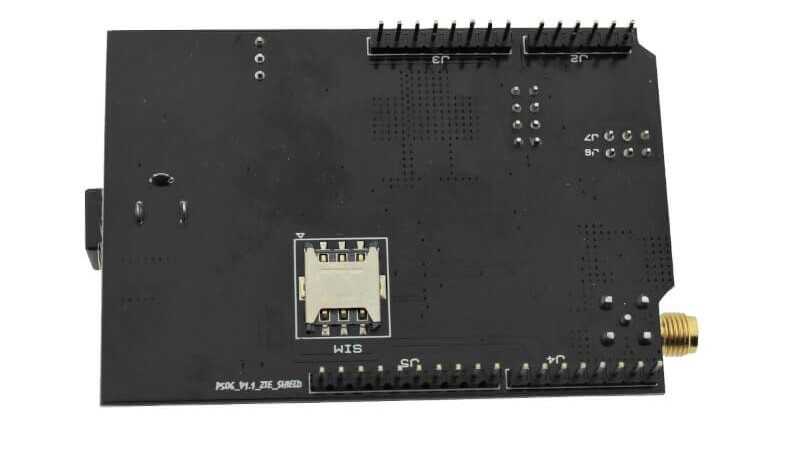

SIM Card Slot: Integrated secure slot design where standard SIM cards can be directly inserted
Status Indicators: Power and Network Status LED indicators for system monitoring
Power Supply: Flexible power supply via external DC adapter socket or 5V through the development board
Certificates: Module architecture with CE, FCC, and international regulation standards for safe use
