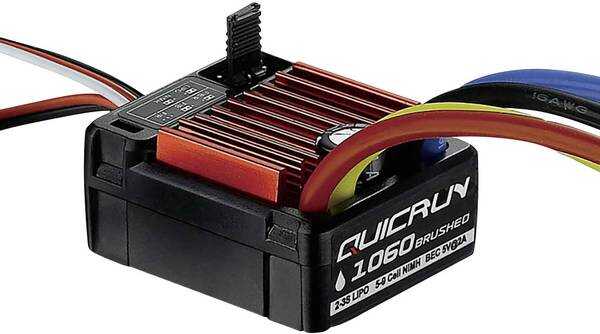

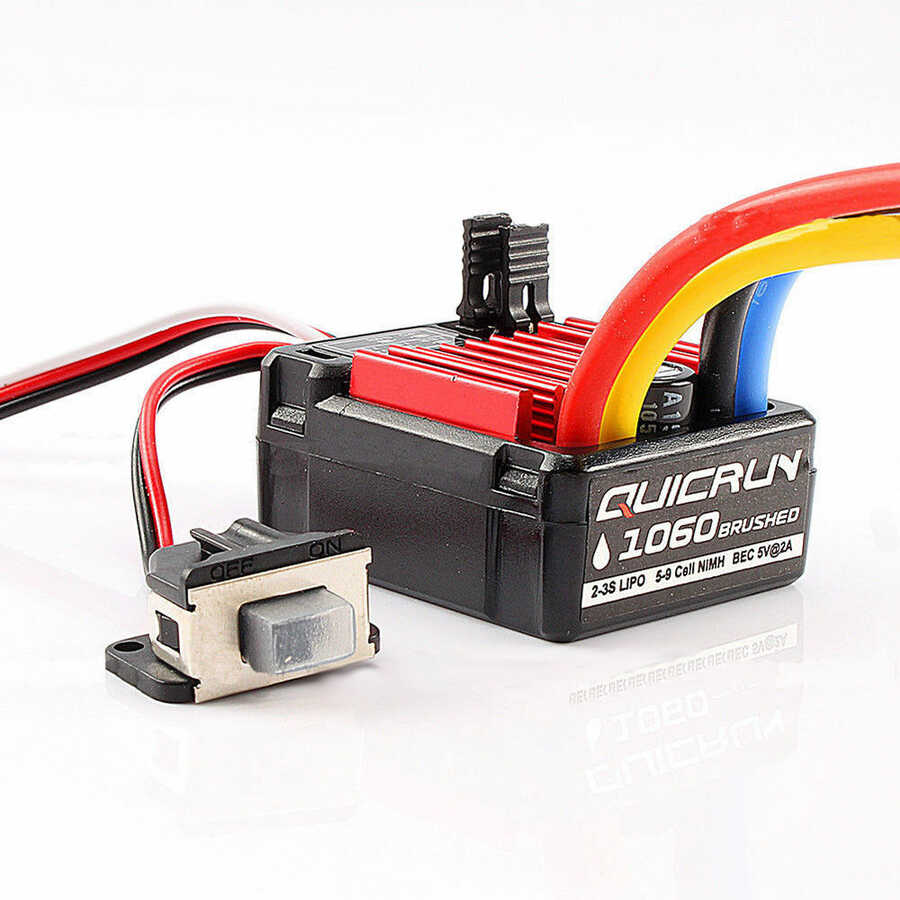

Hobbywing Quicrun WP1060 60A Brushed Motor Controller (ESC)

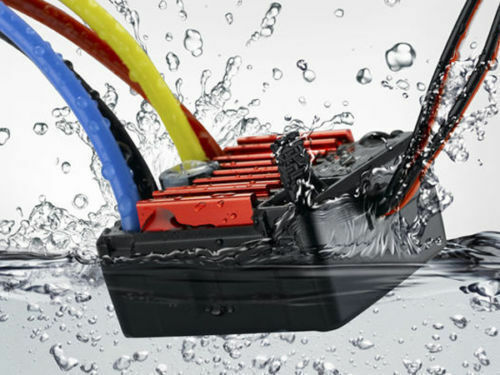

Water-proof and dust-proof for all-weather races.
Want to drive during tough weather like pro racers? With our QucRUN brushed series, you no longer need a traditional waterproofing box. Our ESC is completely waterproofed so that you can save not only space in compartment, but also weight of the vehicle.
Multiple protections
Low voltage cut-off protection for battery / Over-heat protection / Throttle signal loss protection

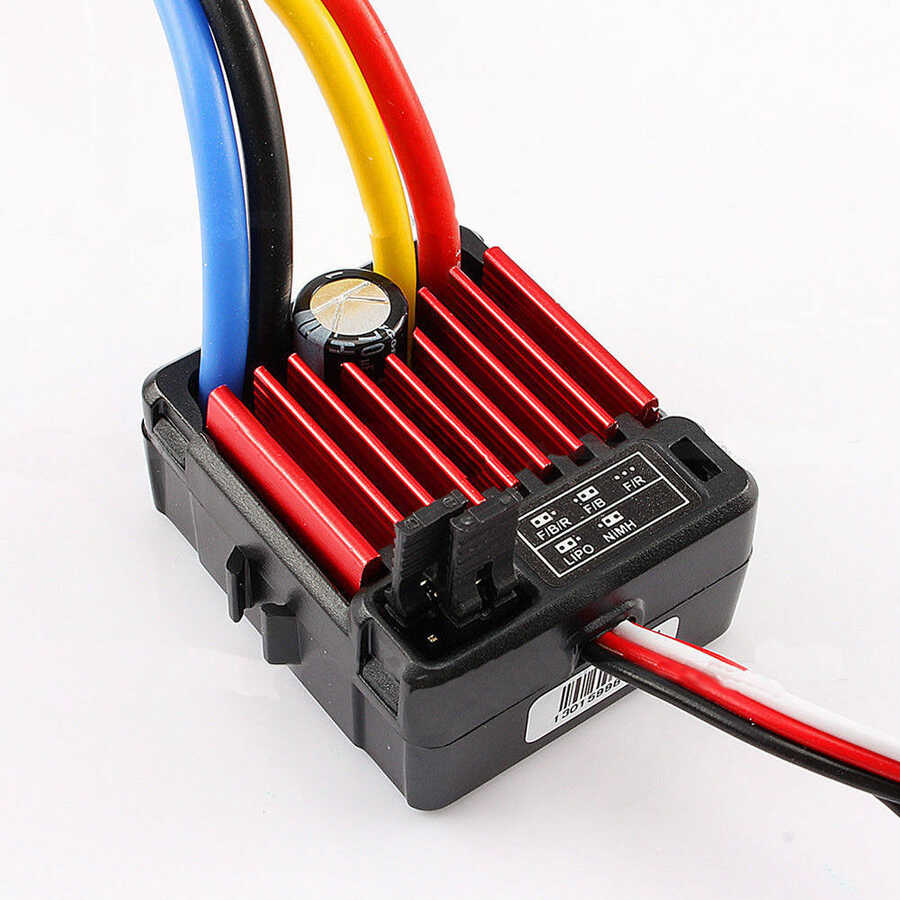

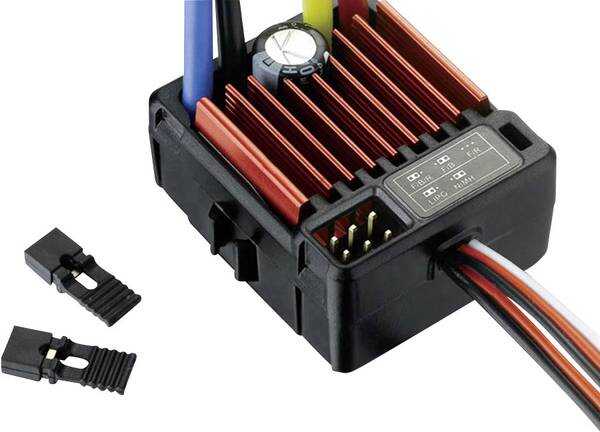

Jumper
The "Battery Type" and "Running Mode" can be programmed by jumpers. Battery Type: Lipo or NiMH.
Running Mode: Fwd/Br, Fwd/Rev/Br or Fwd/Rev (Fwd =Forward, Br=Brake, Rev=Reverse).
Hobbywing Quicrun WP1060 60A Brushed Motor Controller (ESC) Technical Specs:- Waterproof
- continuous current: 60A forward, 30A reverse
- instantaneous current: 360A forward, 180A reverse
- Internal resistance: 0.001Ω forward / 0.002Ω reverse
- Car applications: 1/10 touring car, buggy, short course truck, monster, truggy, rock crawler and tank
- Motor limits: 540/550 size brushed motors
- 2S Lipo / 6 cells NiMH: ≥12T motor or <30000 rpm
- 3S Lipo / 9 cells NiMH: ≥18T motor or <20000 rpm- Input: 2-3S Lipo / 5-9 cells NiMH (6.0-12.6V)
- BEC: Linear, 6V 3A
- PWM frequency: 1 kHz
- External programming port
- Dimensions: 36.5mm x 32mm x 18mm
- Weight: 39g
