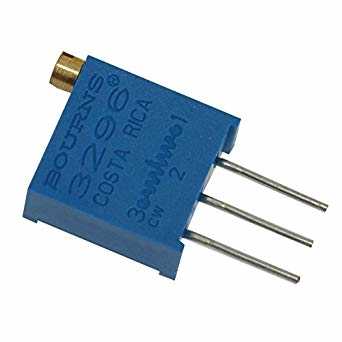

1K Multi-turn Trimpot (Vertical) - 3296W-1-102

Product Code
:
18061
Brand / Origin
:
Robotistan
Quantity
:
10+
Without Vat
:
1.51 TL
Quantity:

-

+

Same Day Shipping
If you purchase before 3.00 pm, your products will ship at the same day. Except saturday and sunday
Add to Favorites
You can add this product on your list and check it later.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box
  • Trimpots, voltage divider and contrast adjustment circuits are used in circuits which need to be adjusted precisely and resistance adjustment is not required.

    Technical specifications:

    • Resistance Value:1K
    • Trimpot Type: Multi Turn Vertical
    • Number of Turns: 25
    • Resistance Change: Linear
    • Total Resistance Tolerance:  10%
    • Rated Power: 0.5W
    • Max Operating Voltage: 300V DC
    • Operating Temperature: -55C to +150C
    • Stop torque:  >0,21(max)
    • Dimensions: 9.53mm x 4.83mm x 10.03mm

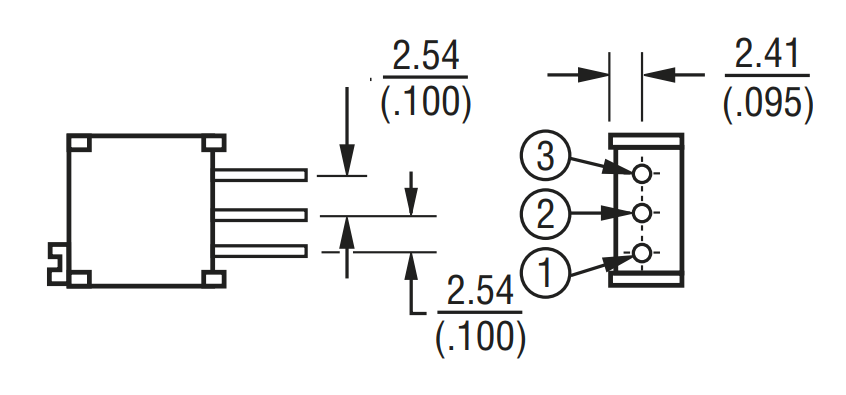

    Technical Drawing:



    Technical Documents:
