Trimpots, voltage divider and contrast adjustment circuits are used in circuits which need to be adjusted precisely and resistance adjustment is not required.

Technical specifications:

  • Resistance Value:2K
  • Trimpot Type: Multi Turn Vertical
  • Number of Turns: 25
  • Resistance Change: Linear
  • Total Resistance Tolerance:  10%
  • Rated Power: 0.5W
  • Max Operating Voltage: 300V DC
  • Operating Temperature: -55C to +150C
  • Stop torque:  >0,21(max)
  • Dimensions: 9.53mm x 4.83mm x 10.03mm

Technical Drawing:

pt10 trimpot (vertical) dimensions3296w trimpot sizes

18065

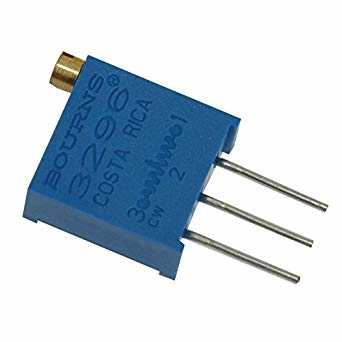

2K Multi-turn Trimpot (Vertical) - 3296W-1-202
2K Multi-turn Trimpot (Vertical) - 3296W-1-202
:
