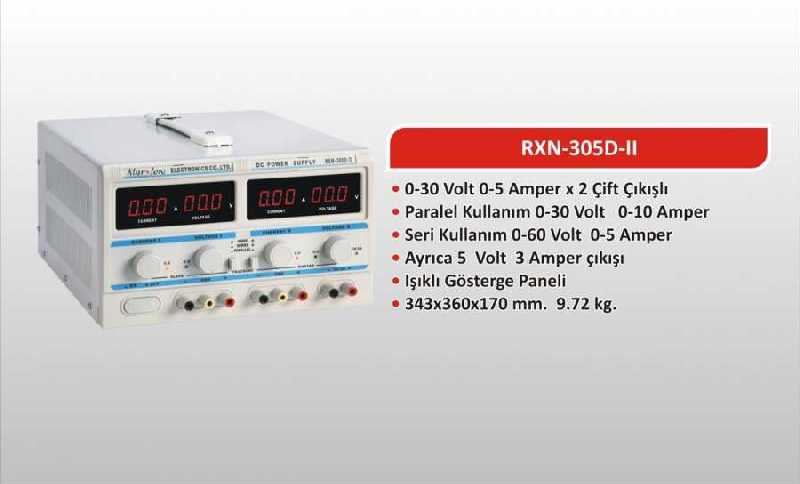

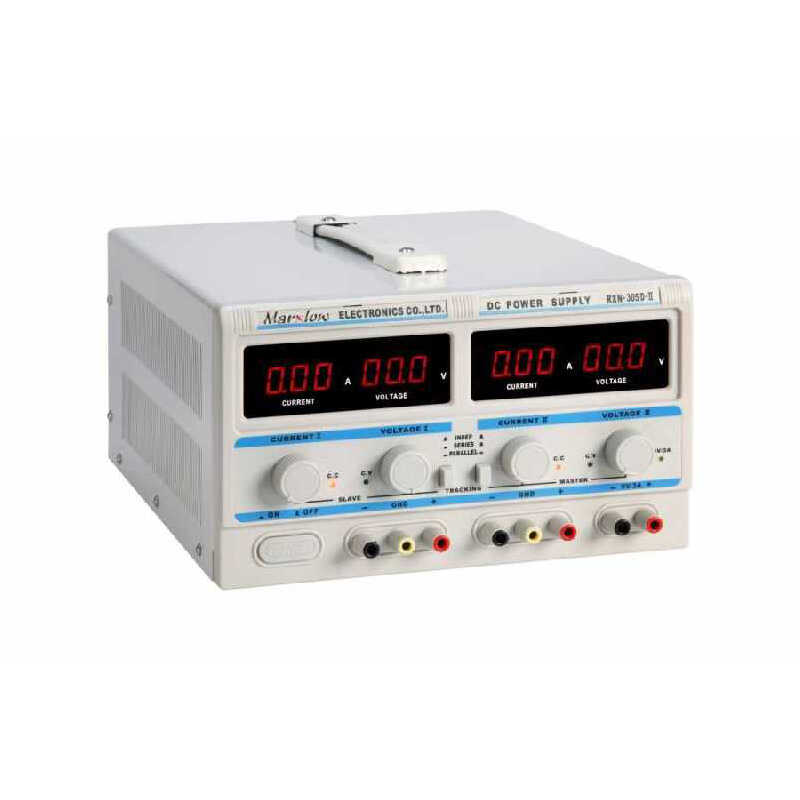

0-30 Volt 5 Ampere 2-Channel Adjustable Power Supply (RXN-305D-II)

0-30 Volt 5 Amp Dual Output Adjustable Power Supply (RXN-305D-II)

The RXN-305D-II adjustable power supply is designed for laboratory, workshop, and industrial applications with its precisely adjustable 0-30V output voltage range and high current capacity. Thanks to its dual-channel structure, each channel can independently deliver up to 5A current within the 0-30V range.

By connecting the channels in series or parallel, output options of 0-60V 5A or 0-30V 10A can be achieved. In addition, a fully independent fixed 5V 3A output channel makes this power supply ideal for digital circuits and microcontroller-based projects.

The power supply features a FINE adjustment potentiometer for precise voltage tuning. Current values can be adjusted in both milliampere and ampere ranges, and the built-in current limiting function ensures safe operation by protecting connected circuits.

0-30 Volt 5 Amp Dual Output Adjustable Power Supply (RXN-305D-II) Technical Specifications:

• Two independent adjustable output channels: 0-30V, 0-5A

• Series and parallel operation modes: 0-60V 5A or 0-30V 10A output

• Independent fixed 5V 3A DC output channel

• FINE adjustment potentiometer for precise voltage control

• Adjustable current limiting (Current Limit) function

• Over-voltage, over-current, and over-temperature protection

• Replaceable fuse design

Dimensions:

• Product dimensions: 343 x 360 x 170 mm

• Weight: 9.72 kg
