ZD-11Z Cable Soldering Tool

ZD-11Z Wire Soldering and Splicing Clamp Tool

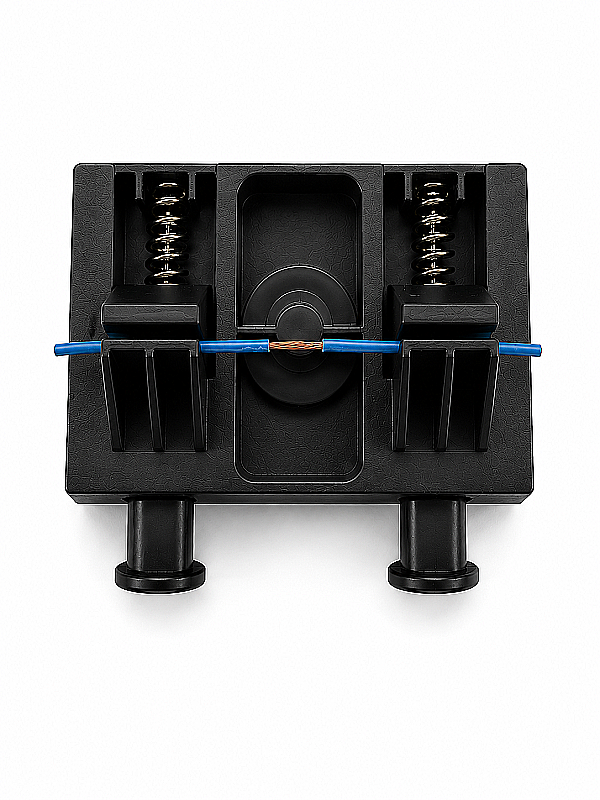

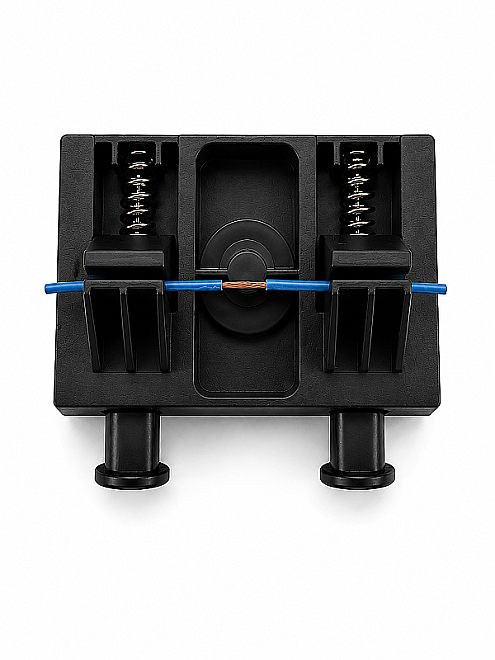

The ZD-11Z Wire Soldering Clamp Tool is a compact, dual-clamping fixture engineered to solve alignment issues and wire slippage during inline butt-splicing, terminal mounting, and joint soldering tasks. By securing wire elements rigidly against shaking or splitting apart, it ensures uniform solder wetting and low-profile, clean joints.

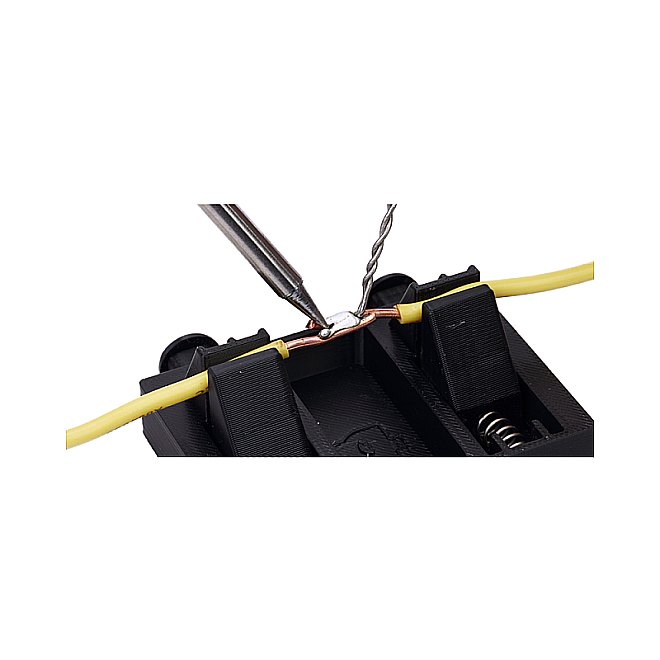

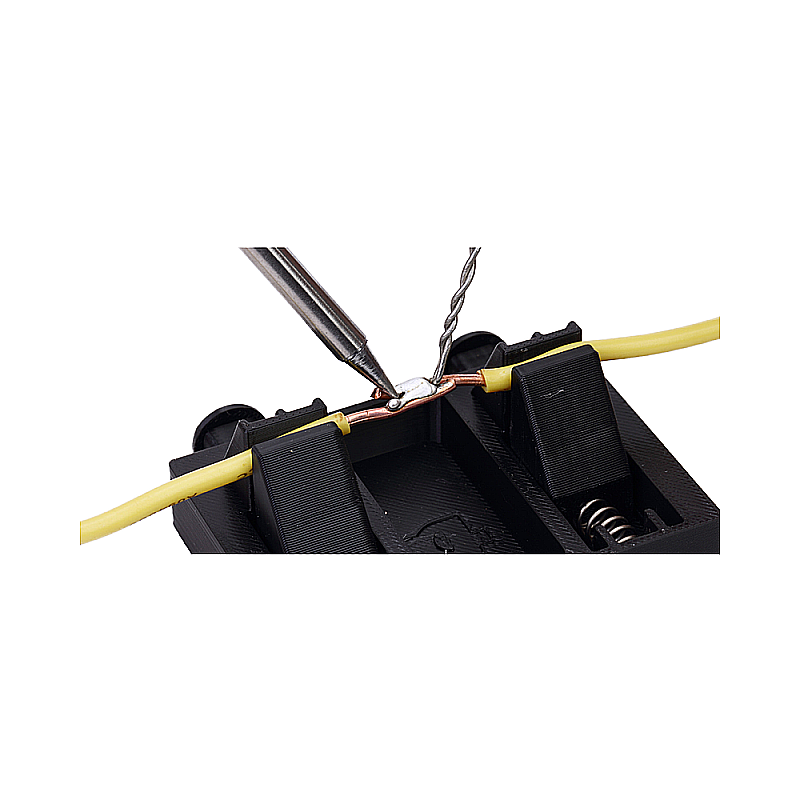

The opposing **spring-loaded clamping jaws** apply calibrated mechanical tension to anchor copper cores across various insulation thicknesses. It locks the stripped wire tips perfectly face-to-face in a linear alignment. This removes the need to manually grip or steady the wire ends, granting complete freedom to manipulate the soldering iron and solder wire efficiently.

Key Features:

• Precision Butt-Joint Alignment: Locks two independent wire lines into an exact linear axis to secure symmetrical, high-strength connections.
• Hands-Free Wire Preparation: Spring-tension clamp matrix that eliminates the need for pliers, tape setups, or external assistance, accelerating assembly speeds.
• Insulation-Safe Grip Profile: Calibrated jaw pressure engineered to clamp wire jackets firmly without scoring, tearing, or deforming plastic insulation sleeves.
• Thermal Resistant Chassis: Durable metallic composition that easily withstands accidental soldering iron contacts without warping.

Technical Specifications:

Application Areas:

• Automotive electrical harness repairs, drone motor wire extensions, and custom wire bundle splicing.
• Soldering heavy-duty battery connectors (XT60, Deans, etc.) and internal electronics links on RC vehicles.
• Repairing severed power adapter lines and managing generalized electrical conductor linking workflows.
