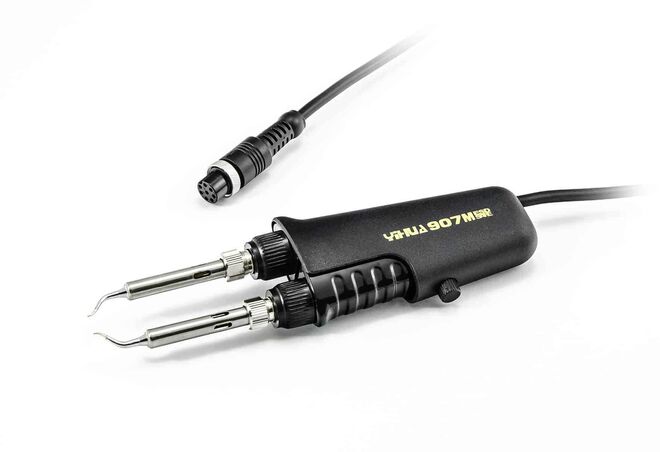

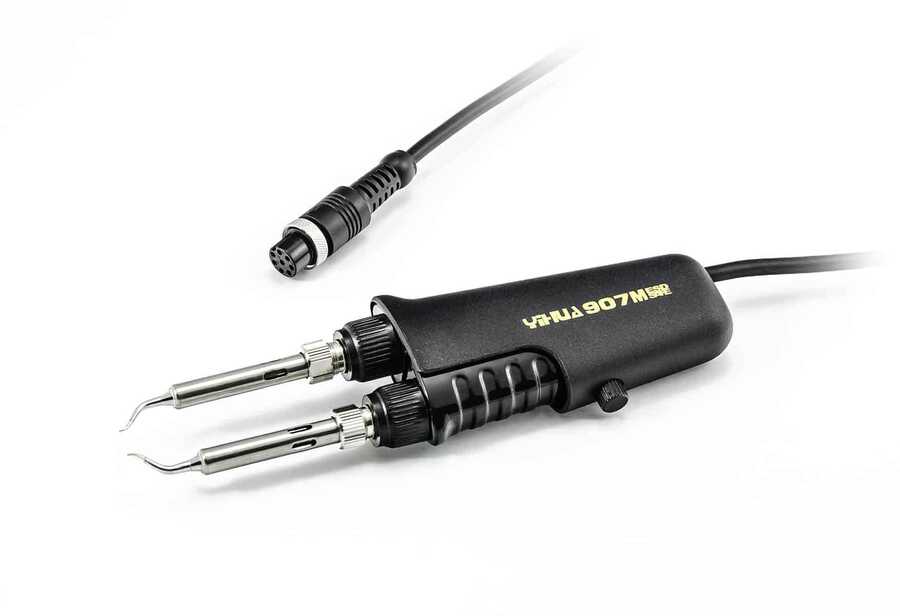

YIHUA Soldering Iron with Hot Tweezer for 938BD +

YIHUA Soldering Iron with Hot Tweezer for 938BD +

Tweezer soldering iron compatible with YIHUA 938 model soldering stations.

• Brand Name: YIHUA
• Output Power: 120W
• Temperature Stability: 2 ° C
• Model Number: 907M
• Output Temperature: 200 ~ 480 ° C
• Dimensions: 37 * 17.5 * 8 cm
• Input Voltage: 110V / 220V
• Color: Black
• Compatible Models: YIHUA 938 938D 938D + 938BD +

Technical Data:

• Model: 907 M
• Voltage: AC ± 50Hz / AC ± 60%
• Power: 120W
• Temperature Range: 200 ~ 480 ° C
• Temperature stability: ± 2 ° C (static state)
• Working temperature: 0 ~ 40 ° C
• Storage temperature: -20 ° C ~ 80 ° C
• Storage humidity: 35% ~ 45%
• Tip ground Resistance: <2Ω
• Ground Voltage Tip: <2mV

1.Tweezers soldering iron dual core control circuit design, double tube heating

2.For welding chips or patch components directly on the circuit board, disassembly

3.High quality stainless steel metal heating core

Metal Core Features:

1.Double-panel technology, anti-percussion

2.Anti-crushing process, better than traditional heating core

3.Using Yihua exclusive perfect production process, more stable, longer life
