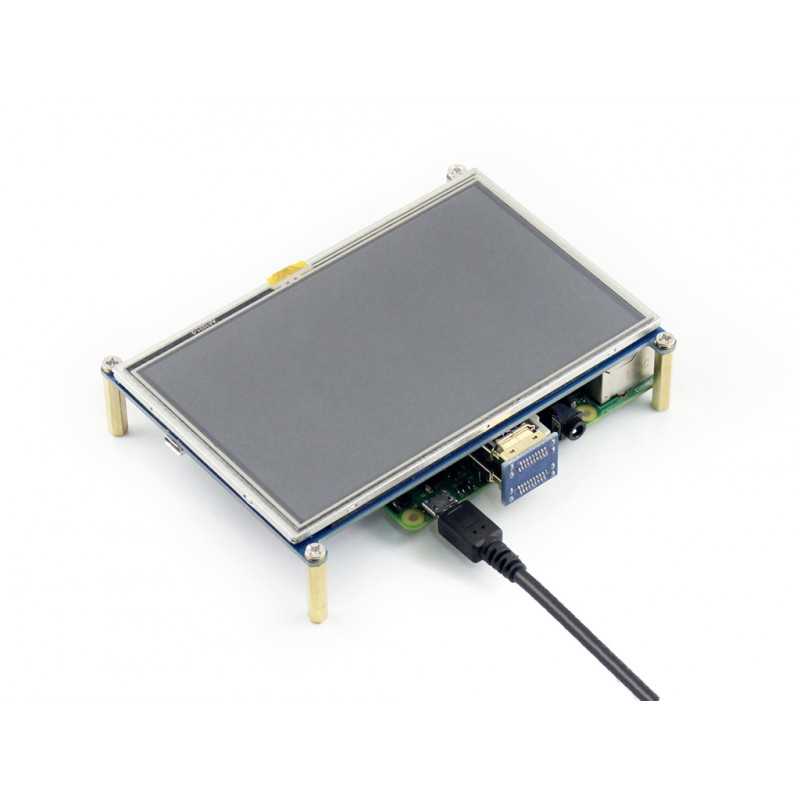

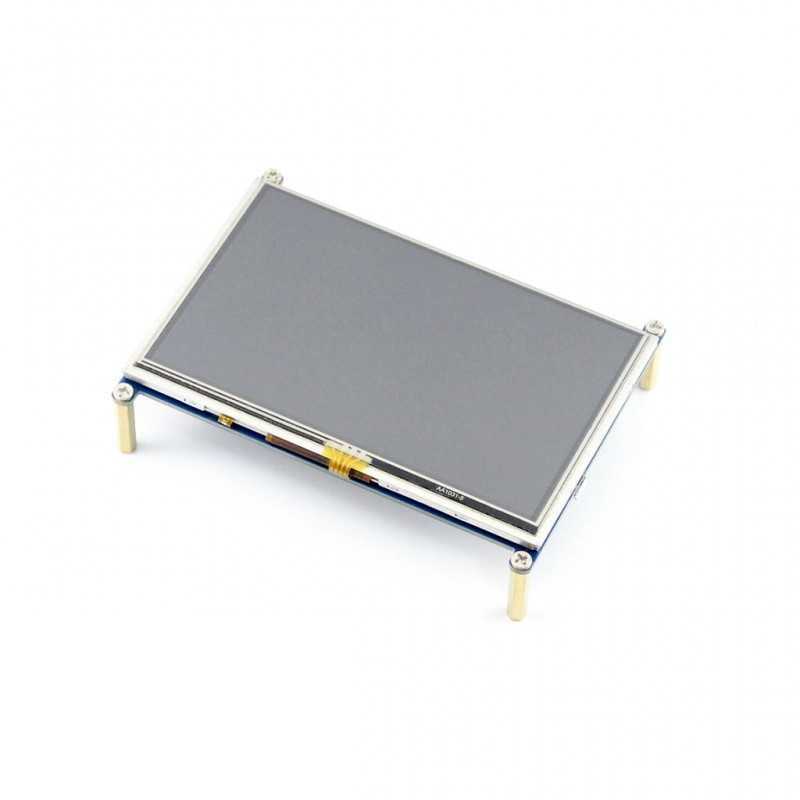

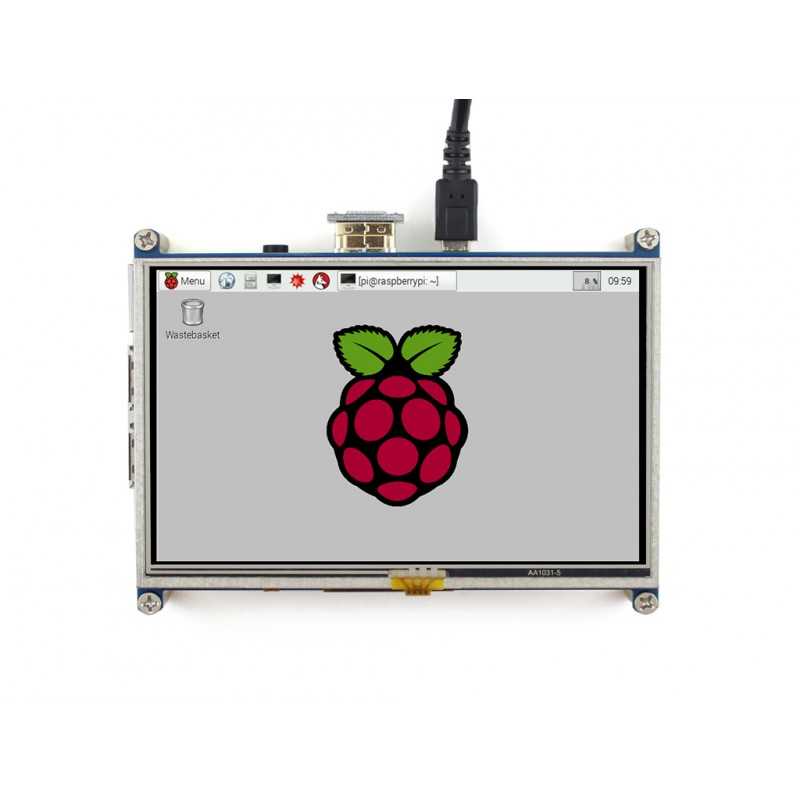

WaveShare 5 inch HDMI Resistive Touch LCD - 800x480

Product Code
:
18302
Brand / Origin
:
WaveShare
Quantity
:
5
Without Vat
:
336.11 TL
Same Day Shipping
If you purchase before 3.00 pm, your products will ship at the same day. Except saturday and sunday
Add to Favorites
You can add this product on your list and check it later.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box
  • Features:

    • 800x480 high hardware resolution
    • Resistive touch control
    • Compatible and Direct-connect with any revision of Raspberry Pi (except the Pi 1 model B or Pi Zero, which requires an HDMI cable)
    • Drivers provided (works with your own Raspbian/Ubuntu/Kali/Retropie)
    • HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os)
    • Backlight can be turned off to lower power consumption
    • High quality immersion gold surface plating

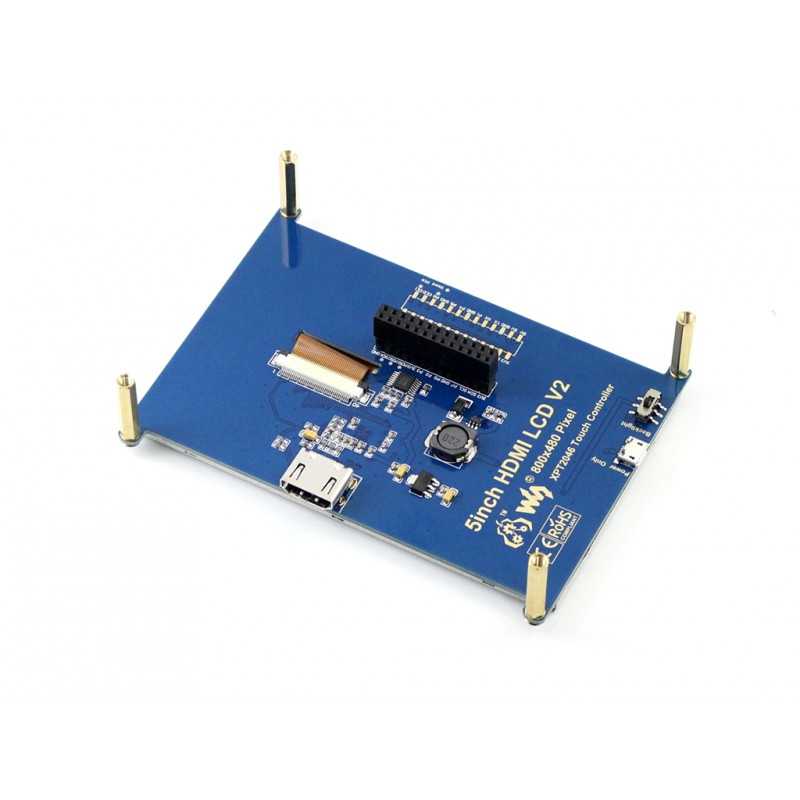

    Interface:

    Pin No.

    Symbol

    Description

    1, 17

    3.3V

    Power positive (3.3V power input)

    2, 4

    5V

    Power positive (5V power input)

    3, 5, 7, 8, 10, 11, 12, 13, 15, 16, 18, 24

    NC

    NC

    6, 9, 14, 20, 25

    GND

    Ground

    19

    TP_SI

    SPI data input of Touch Panel

    21

    TP_SO

    SPI data output of Touch Panel

    22

    TP_IRQ

    Touch Panel interrupt, low level while the Touch Panel detects touching

    23

    TP_SCK

    SPI clock of Touch Panel

    26

    TP_CS

    Touch Panel chip selection, low active


    Dimensions:

    Documents and Useful Links:

      Features
      Size
      :
      5.0 inches and above
