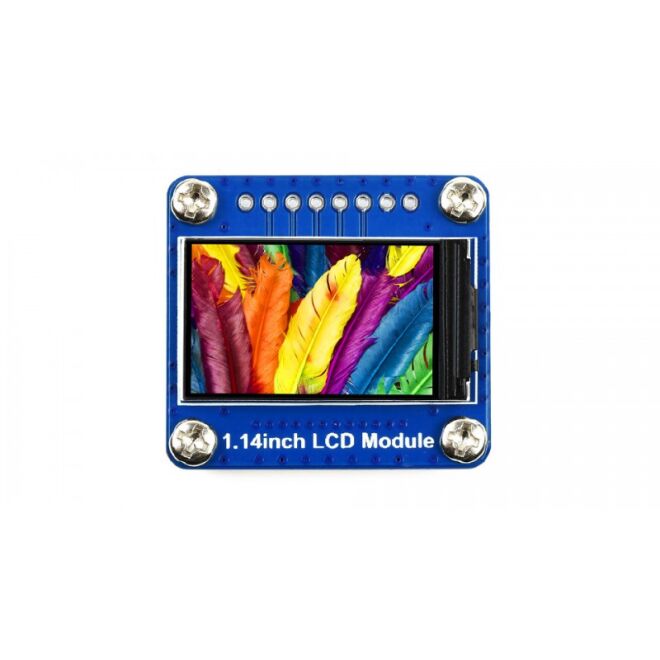

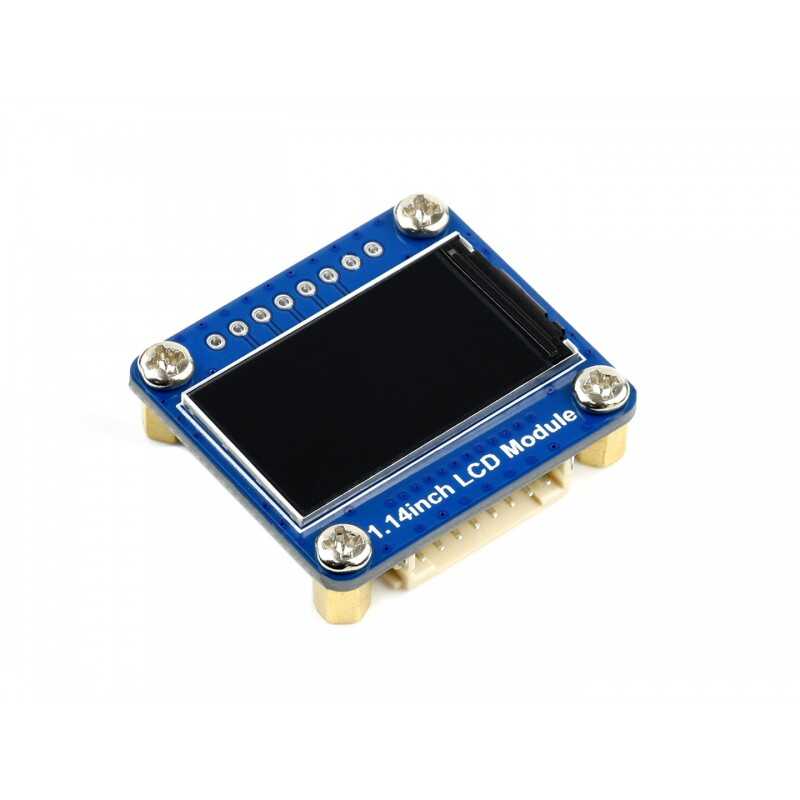

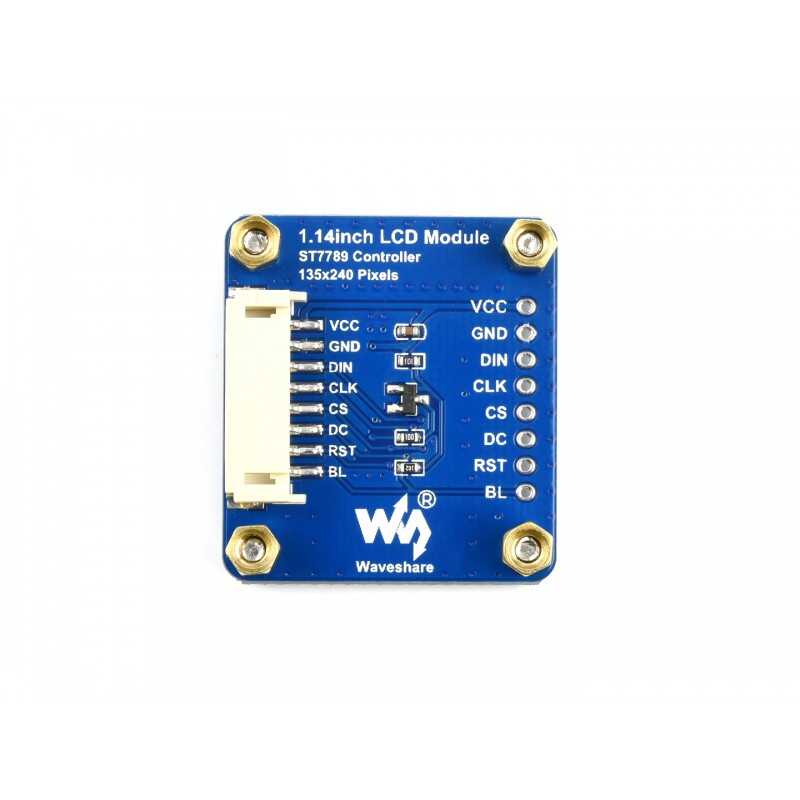

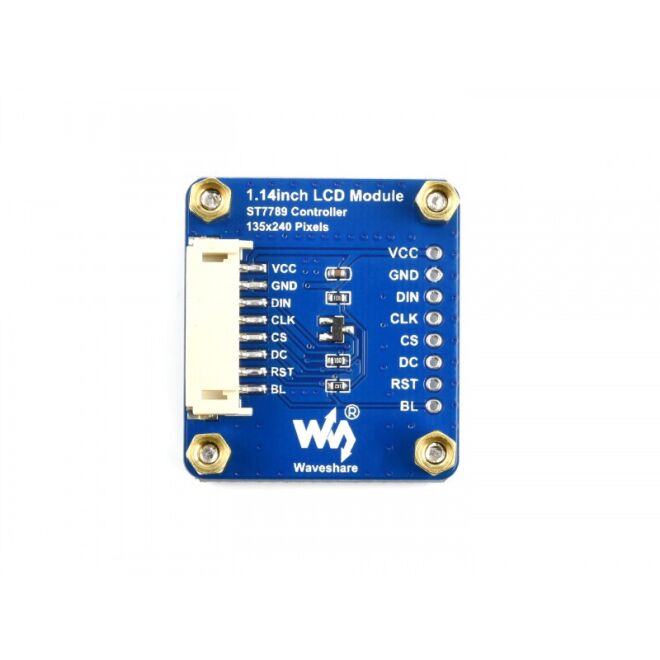

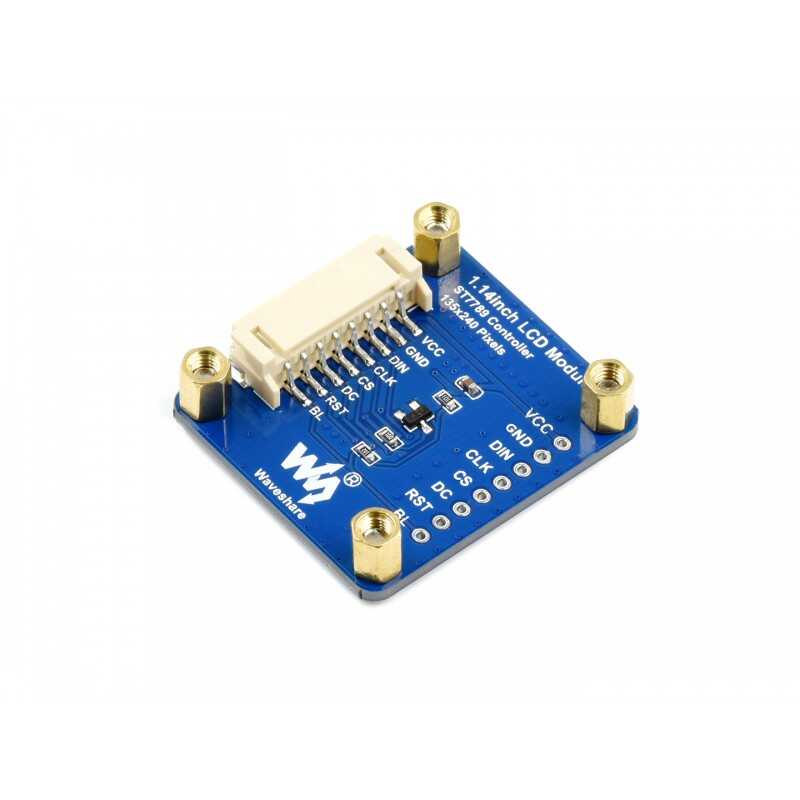

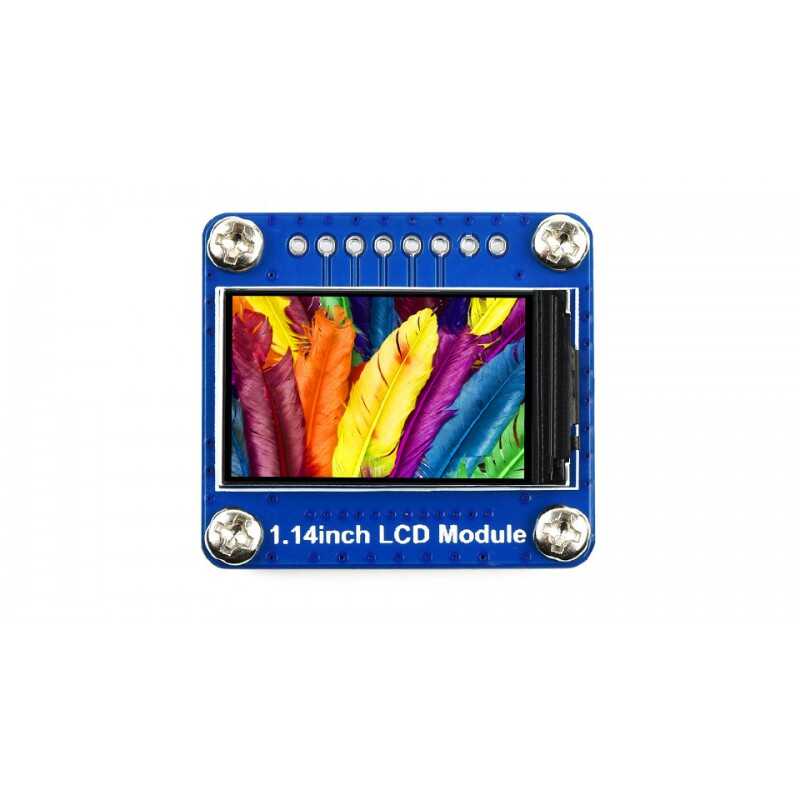

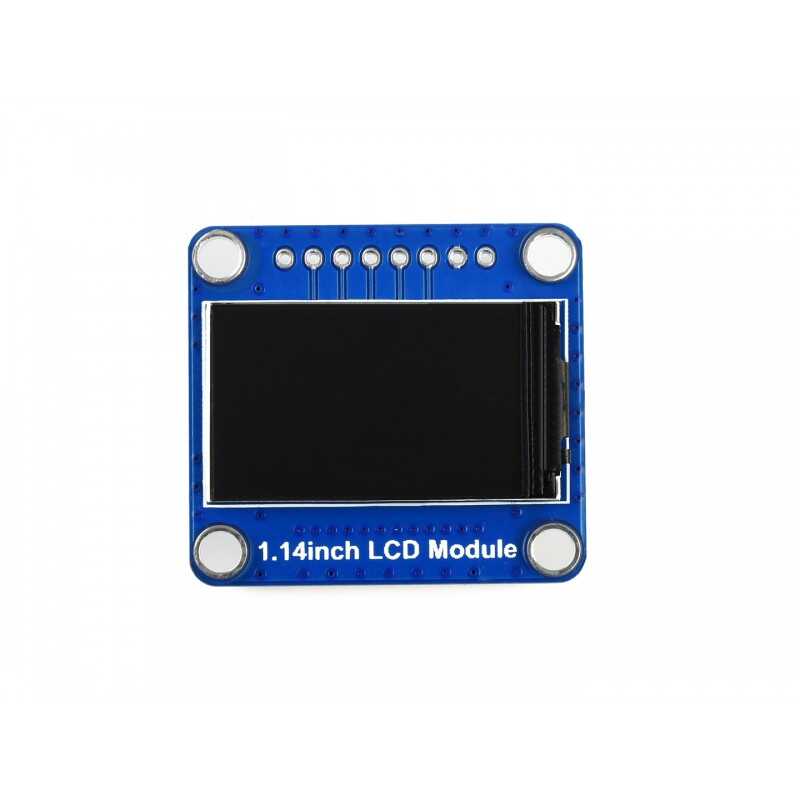

Waveshare 1.14-inch 65K LCD Display Module – High-Resolution RGB IPS Screen
The Waveshare 1.14-inch LCD display module features a 240×135 pixel resolution RGB IPS panel, offering vivid colors and a wide viewing angle. With compatibility for microcontrollers, Raspberry Pi, Arduino, and other embedded systems, it provides flexible usage in various projects. Its compact size makes it ideal for portable devices, data displays, and small-screen applications.
Waveshare 1.14-inch 65K LCD Display Module Technical Specifications:
- Screen Size: 1.14 inches
- Resolution: 240×135 pixels
- Color Support: 65K colors (RGB 16-bit)
- Panel Type: IPS (Wide viewing angle and vibrant colors)
- Interface: SPI (Serial Interface)
- Viewing Angle: 160° wide viewing angle
- Operating Voltage: Compatible with 3.3V / 5V
- Compatibility: Raspberry Pi, Arduino, STM32, and other SPI-supported microcontrollers
- Dimensions: Compact design suitable for small-scale projects
Waveshare 1.14-inch 65K LCD Display Module Technical Dimensions:
Waveshare 1.14-inch 65K LCD Display Module Arduino Connection:
Waveshare 1.14-inch 65K LCD Display Module Raspberry Pi Connection:
