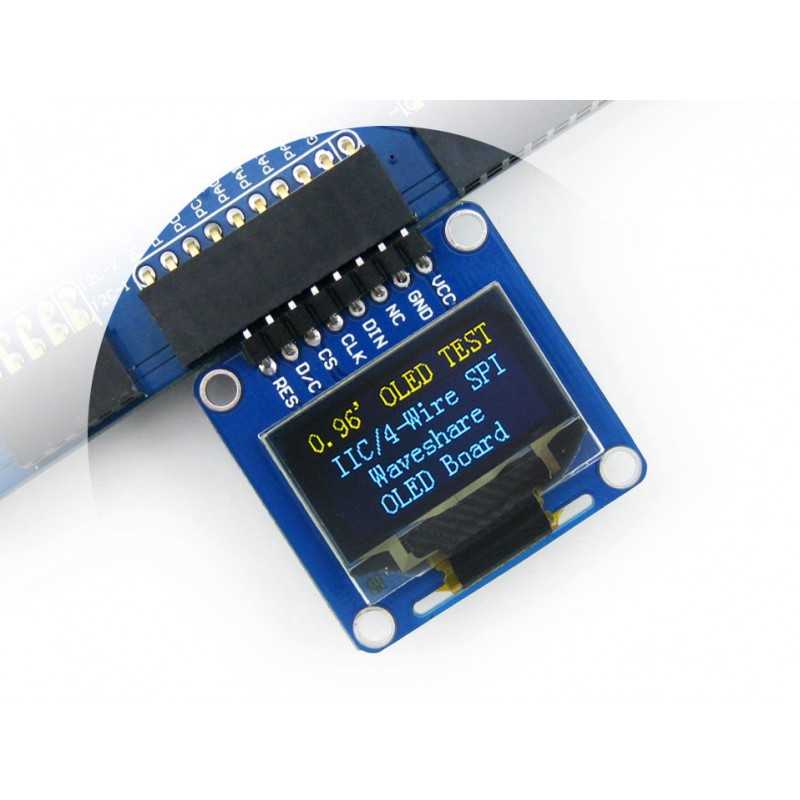

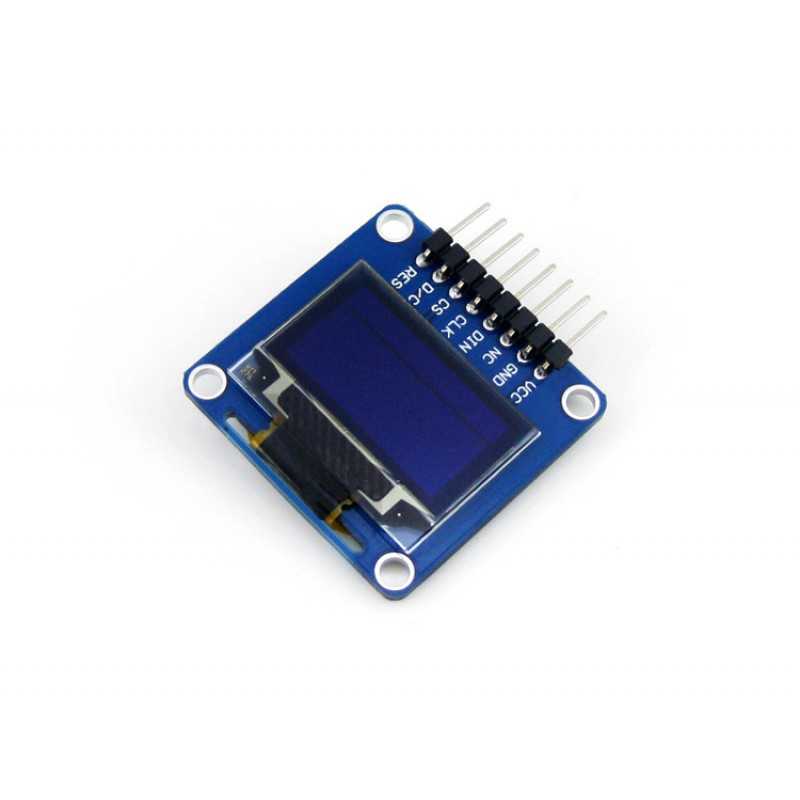

WaveShare 0.96 inch OLED Display- 128x64 (A)

Product Code
:
18313
Brand / Origin
:
WaveShare
Quantity
:
0
Without Vat
:
55.20 TL
Out of stock Alert when in stock
Same Day Shipping
If you purchase before 3.30 pm, your products will ship at the same day. Except saturday and sunday
Add to Favorites
You can add this product on your list and check it later.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box
  • Key Parameters:

    DRIVER CHIP SSD1306
    INTERFACE 3-wire SPI, 4-wire SPI, I2C
    RESOLUTION 128*64
    DISPLAY SIZE 0.96inch
    COLORS 1/4 yellow section, 3/4 blue section
    VISIBLE ANGLE >160°
    OPERATING TEMP. (℃) -20~70
    STORAGE TEMP. (℃) -30~80
    OPERATING VOLTAGE 3.3V / 5V
    APPLICABILITY Hardware platforms such as Raspberry Pi/Jetson Nano/Arduino/STM32

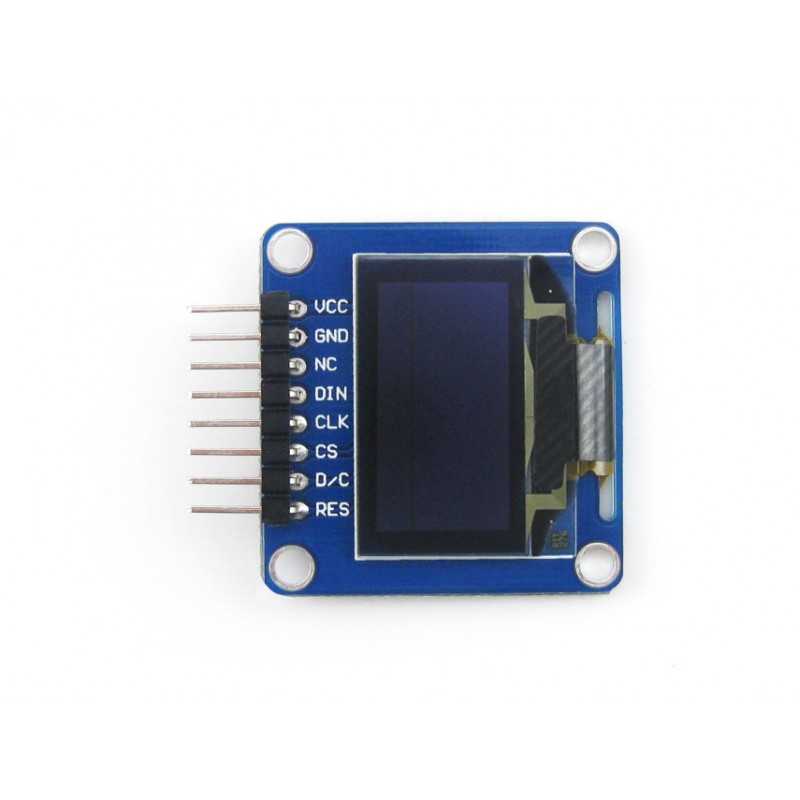

    Interface:

    PIN NO. SYMBOL DESCRIPTION
    1 VCC Power positive (3.3~5V power input)
    2 GND Ground
    3 NC NC
    4 DIN Data input
    5 CLK Clock signal input
    6 CS Chip selection, low active
    7 D/C Command signal, low level for command, high level for data
    8 RES Reset signal, low active

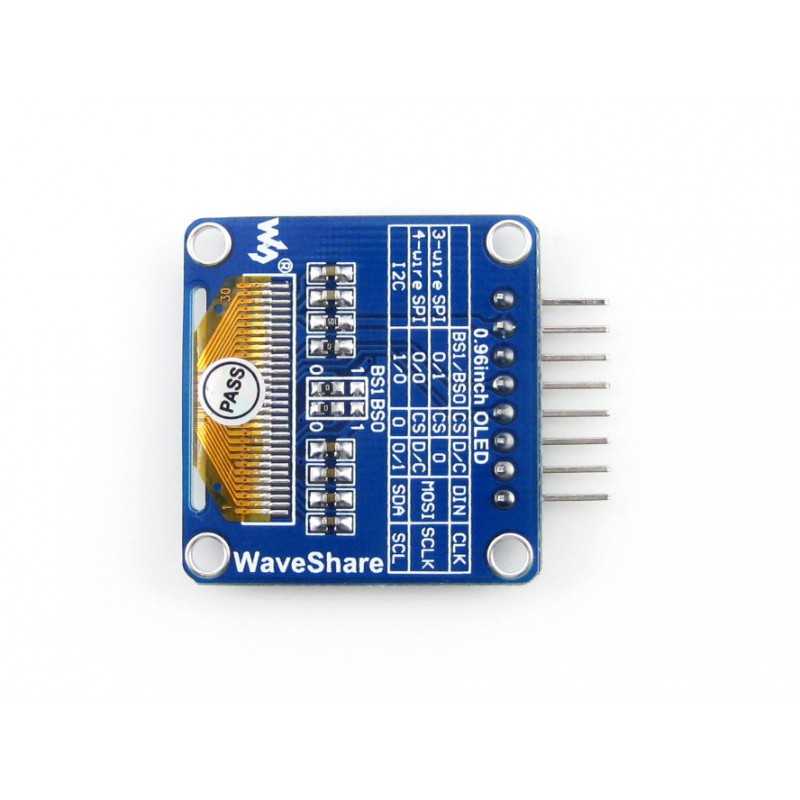

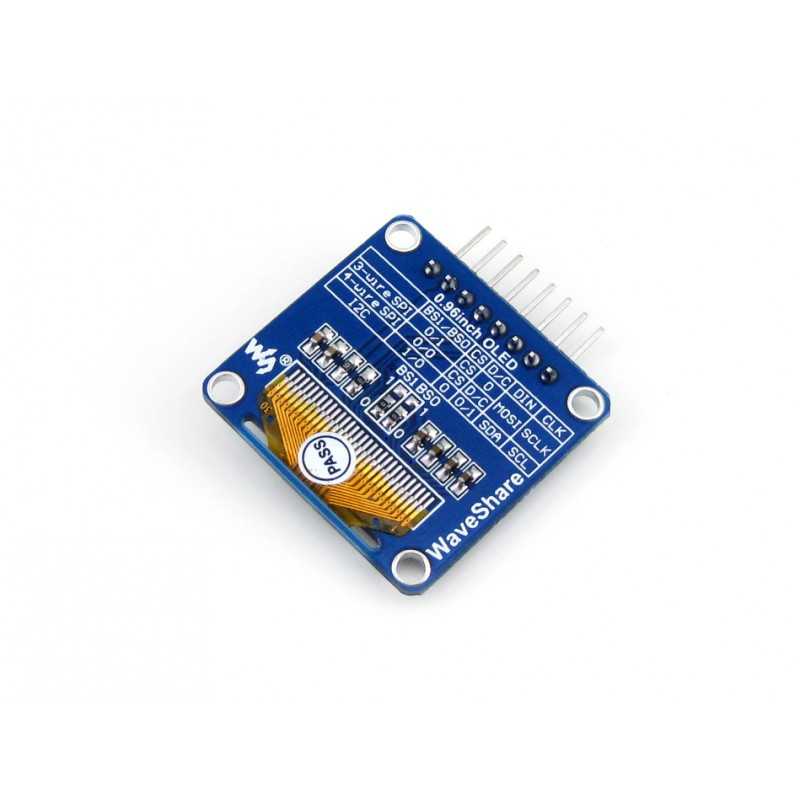

    Hardware Config:

    MODE/INTERFACE BS0/BS1 DIN SCK
    3-wire SPI 1/0 MOSI SCLK
    4-wire SPI 0/0
    I2C 0/1 SDA SCL

    Ordering Info:

    The 0.96inch OLED provides 2 options for the onboard pinheader:

    • 0.96inch OLED (A): angled/horizontal pinheader
    • 0.96inch OLED (B): straight/vertical pinheader

    Dimension:

    Documents:
