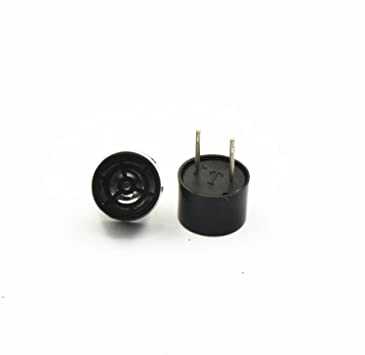

10mm Waterproof Ultrasonic Sensor RT Distance Measuring Probe EU10PIF200H07T R 200Khz
Ultrasonic sensor RT distance measuring probe is a type of sensor developed by utilizing ultrasonic properties and uses the piezoelectric effect of piezoelectric ceramics. When an electrical signal is added to the piezoelectric ceramic chip, it will produce deformation, which will cause the sensor vibration and emit ultrasonic. When the ultrasonic encounters the obstacle, the ultrasonic reflection acts on the piezoelectric ceramic chip through the sensor reception. According to the reverse piezoelectric effect, the ultrasonic sensor generates an electrical signal output. Based on the principle that the propagation speed of the ultrasonic wave in the same medium is constant, the distance between the obstacles can be determined according to the time difference between the transmitted and received signals. When the ultrasonic wave touches the pollution or the interface, it will produce significant reflection echo, and when it touches the moving object, it will produce Doppler effect. Therefore, ultrasonic sensors are widely used in industry, civil, national defense, biomedicine and other fields.
RT Distance Measurement Probe Usage Areas:
- Automobile anti-collision radar, ultrasonic range system, ultrasonic in proximity switch
- In remote control devices for household appliances, toys and other electronic devices
- In the ultrasonic transmitting and receiving device of anti-theft and disaster prevention equipment
- Repel mosquitoes, insects, animals, etc. used to remove.
RT Distance Measurement Probe Technical Specifications:
- It is waterproof.
- Center Frequency: 200KHz
- Sensitivity: ≥-65dB
- Electrostatic Capacity: 1500±30%
- Detection Distance: <8m
- Operating Temperature: -30°C~+80°C
- Storage Temperature: -40°C~+85°C
- Diameter: 10mm
RT Distance Measurement Probe Package Contents:
- 1 x 10mm Waterproof Ultrasonic Sensor RT Distance Measuring Probe EU10PIF200H07T R 200Khz
