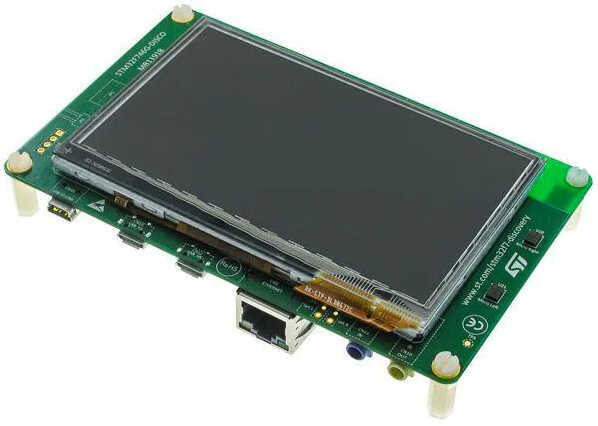

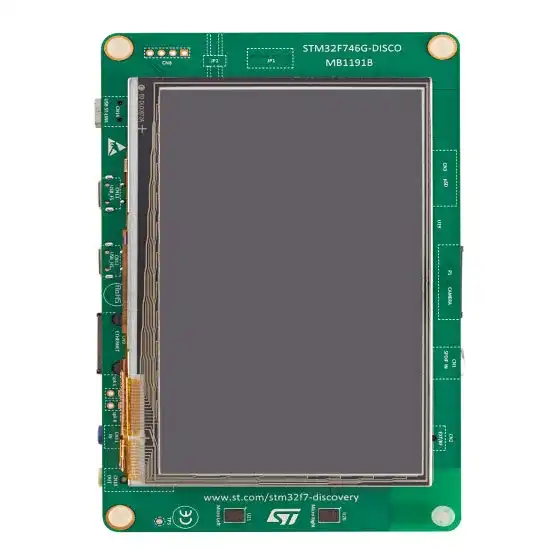

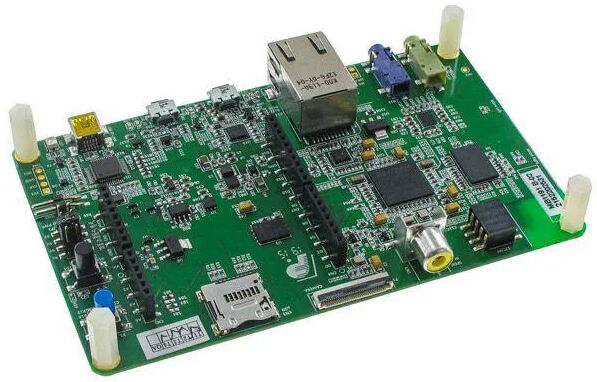

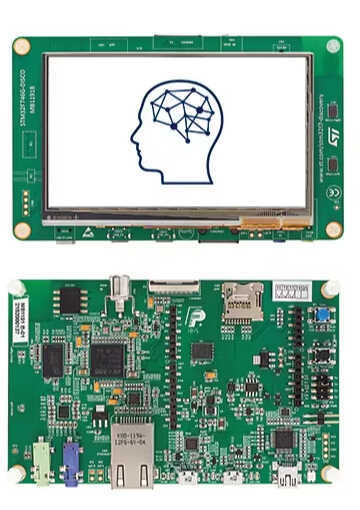

STM32F746G-DISCO Display Development Kit

STM32F746G-DISCO Display Development Kit

The STM32F746G-DISCO is a comprehensive display development and demonstration kit designed by STMicroelectronics, based on the high-performance STM32F7 series microcontroller. It provides a powerful platform for applications that require graphics, touch interface, audio, camera support, and high-speed connectivity.

The on-board 4.3-inch color LCD-TFT capacitive touch screen allows developers to easily create and test graphical user interface (GUI) applications. With Ethernet, USB OTG, audio input/output, and camera support, the board is well suited for multimedia and IoT projects.

Thanks to the integrated ST-LINK/V2-1 debugger and programmer, development can be carried out without the need for external hardware. Arduino Uno V3 compatible expansion connectors enable easy extension of the board with various add-on modules.

STM32F746G-DISCO Display Development Kit Technical Specifications:

• STM32F746NGH6 microcontroller (Arm Cortex-M7 core)

• 32-bit Arm Cortex-M7 CPU

• 1 MB Flash memory

• 340 KB RAM

• 4.3” 480x272 resolution color LCD-TFT capacitive touch screen

• Ethernet support (IEEE 802.3 compliant)

• USB OTG HS and USB OTG FS support

• SAI audio codec and 2 digital MEMS microphones

• 128 Mbit Quad-SPI Flash memory

• 128 Mbit SDRAM (64 Mbit accessible)

• Arduino™ Uno V3 compatible expansion connectors

• Integrated ST-LINK/V2-1 debugger and programmer

Useful Links / Documents:

• STM32F746G-DISCO Data Brief (PDF)
• Official Documentation and Software
