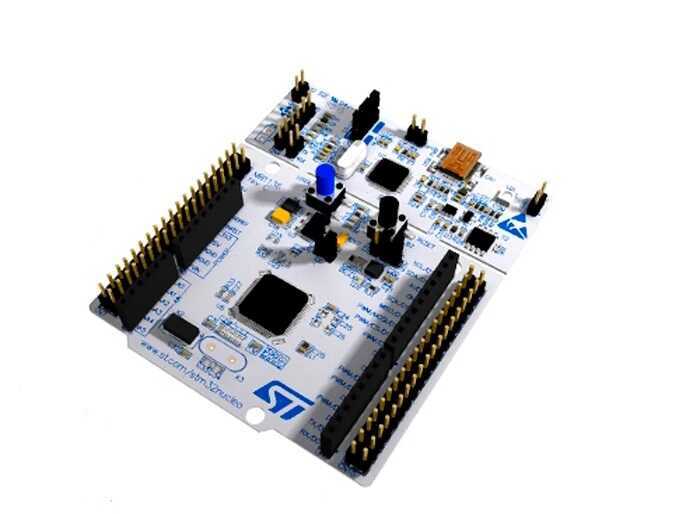

STM32 Processor Kit NUCLEO-L476RG

STM32 Processor Kit NUCLEO-L476RG

The STM32 NUCLEO-L476RG is an ultra-low-power development board designed by STMicroelectronics, based on the STM32L4 series microcontroller. It provides an ideal platform for energy-efficient embedded system applications, IoT projects, and educational use.

The on-board STM32L476RG microcontroller features an Arm Cortex-M4 core with FPU support, delivering high performance while maintaining very low power consumption. Thanks to the integrated ST-LINK/V2-1 debugger and programmer, development can be carried out easily without the need for external hardware.

Arduino Uno V3 compatible expansion connectors and ST Morpho pin headers allow the board to interface with a wide range of sensors, modules, and peripherals. The STM32Cube software ecosystem, including free libraries and example projects, enables a fast and efficient development process.

STM32 Processor Kit NUCLEO-L476RG Technical Specifications:

• STM32L476RGT6 microcontroller (Arm Cortex-M4 core)

• 32-bit Arm Cortex-M4 CPU with FPU support

• 1 MB Flash memory

• 128 KB SRAM

• Ultra-low-power operation (STM32L4 series)

• Arduino™ Uno V3 compatible expansion connectors

• ST Morpho pin header support

• 1 user LED

• 1 user button and 1 reset button

• Flexible power supply via USB or external sources

Useful Links / Documents:

• STM32L476RG Datasheet (PDF)
• Official Documentation and Software
